Stahlwille - 96747304

Properties

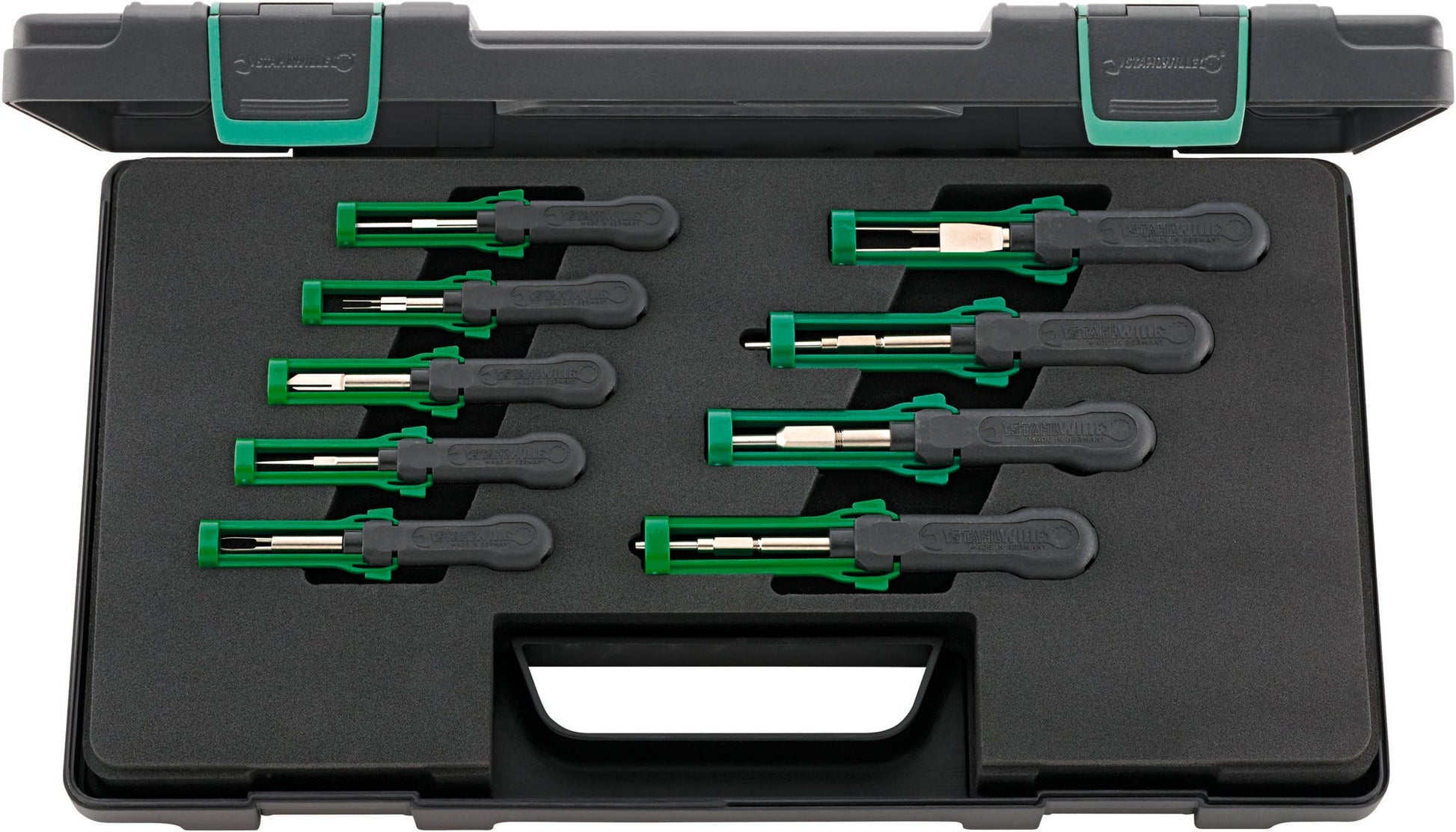

Contains 12-pieces:

3 extractor tools No. 1501, 1502, 1505: for contact dimensions Ø 1.5; 3.5; 2.3 mm

3 dismantling sleeves No. 1511, 1512, 1515: for contact dimensions Ø 1.5; 3.5; 2.3 mm

1 cable extractor No. 1553: for connectors with one unlocking channel, flat contacts 2.8 and 5.8 mm

1 cable extractor No. 1556: for Micro-Timer II, III contacts, flat contacts 1.6 mm

1 cable extractor No. 1559: for Maxi-Power timer contacts, flat contacts 9.5 mm

1 cable extractor No. 1562: for Pit Pod contacts

1 cable extractor No. 1574: for Micro-Timer I contacts and ABS housing, flat contacts 1.6 mm

1 cable extractor No. 1591: for connectors with two unlocking channels, flat contacts 2.8 and 5.8 mm
