Stahlwille - 96521400

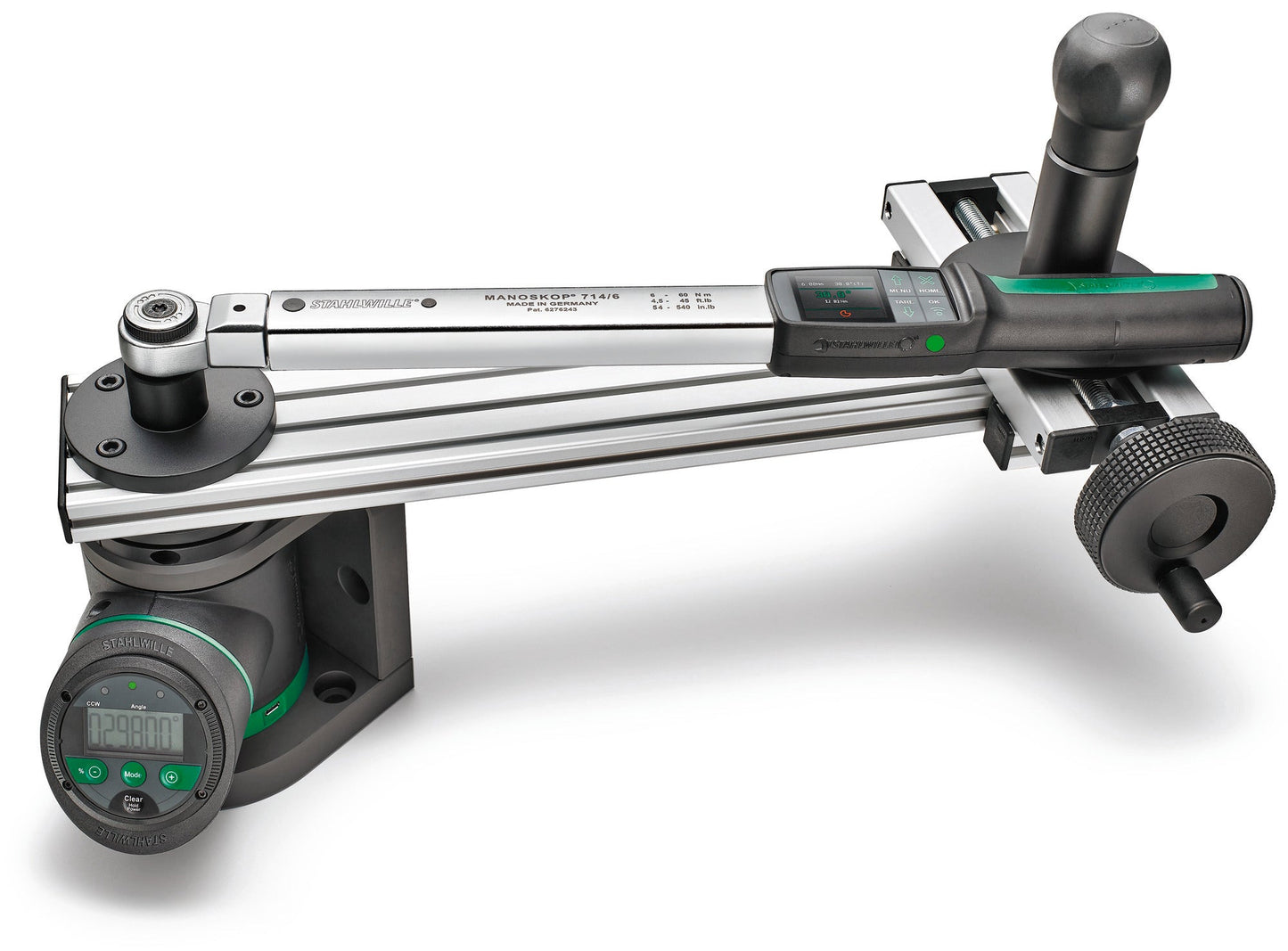

• Electronic tester for checking angle of rotation with immediate evaluation of the measurement results.
• Simple, quick and reliable testing of angle controlled torque wrenches to ensure quality in production.

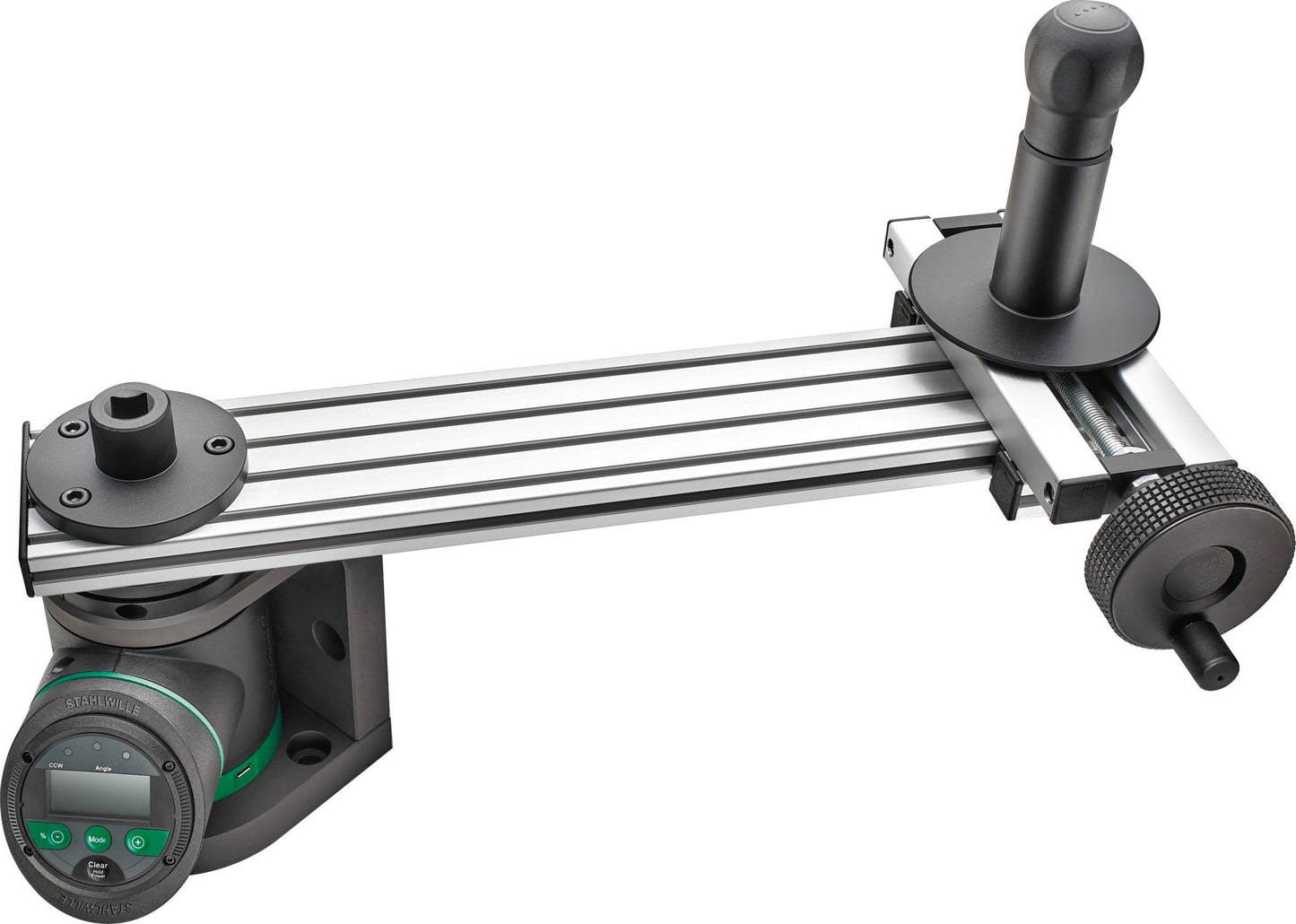

• For angle of rotation measurements up to 720°. Includes an extendable rotating arm for testing in large measurement ranges.
• A simple adjustment of the supports enables quick adaptation to different handle lengths and shapes.
• The large LCD display can be rotated 180° and is easy to read from any position.

Features

Our torque tools, transducers and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2 and based on DKD-R 10-8 for traceability of the measuring equipment.

Properties

• for checking the angle of rotation from angle controlled torque wrenches for compliance with the guaranteed tolerances
• angle of rotation measurements up to 720° with setpoint specifications
• immediate evaluation of the measurement results directly on the device using the traffic light principle
• with interchangeable square drive adapters for the square drive (1/4"- 3/8"-1/2")
• interchangeable supports allow angle of rotation measurements up to 400 N·m
• large LCD display for optimum readability
• the display, the display holder, and the base can be rotated 180°
• compact design
• the display and foil keyboard are spray-proof, the case is made of impact-resistant plastic
• simple installation thanks to pre-drilled holes in the mounting bracket
• the rotating arm can be easily locked in the zero position for transport
• for controlled right and left-hand torque testing
• 2 operating modes: running display of the applied torque (Track), peak value display (Peak-Hold)
• customised input of target torques and tolerances for evaluating the measured value possible
• micro USB interface for data export and for optional power supply
• data storage for up to 2500 data records, including date and time stamp
• CheckMaster documentation software for transferring values and creating test certificates is available free of charge at www.stahlwille.de
• operation possible via supplied power supply or with batteries
• with factory calibration certificate
• in a sturdy plastic case
• delivered with USB power supply, reducing adapters to 1/4" or 3/8"
