Stahlwille - 96521206

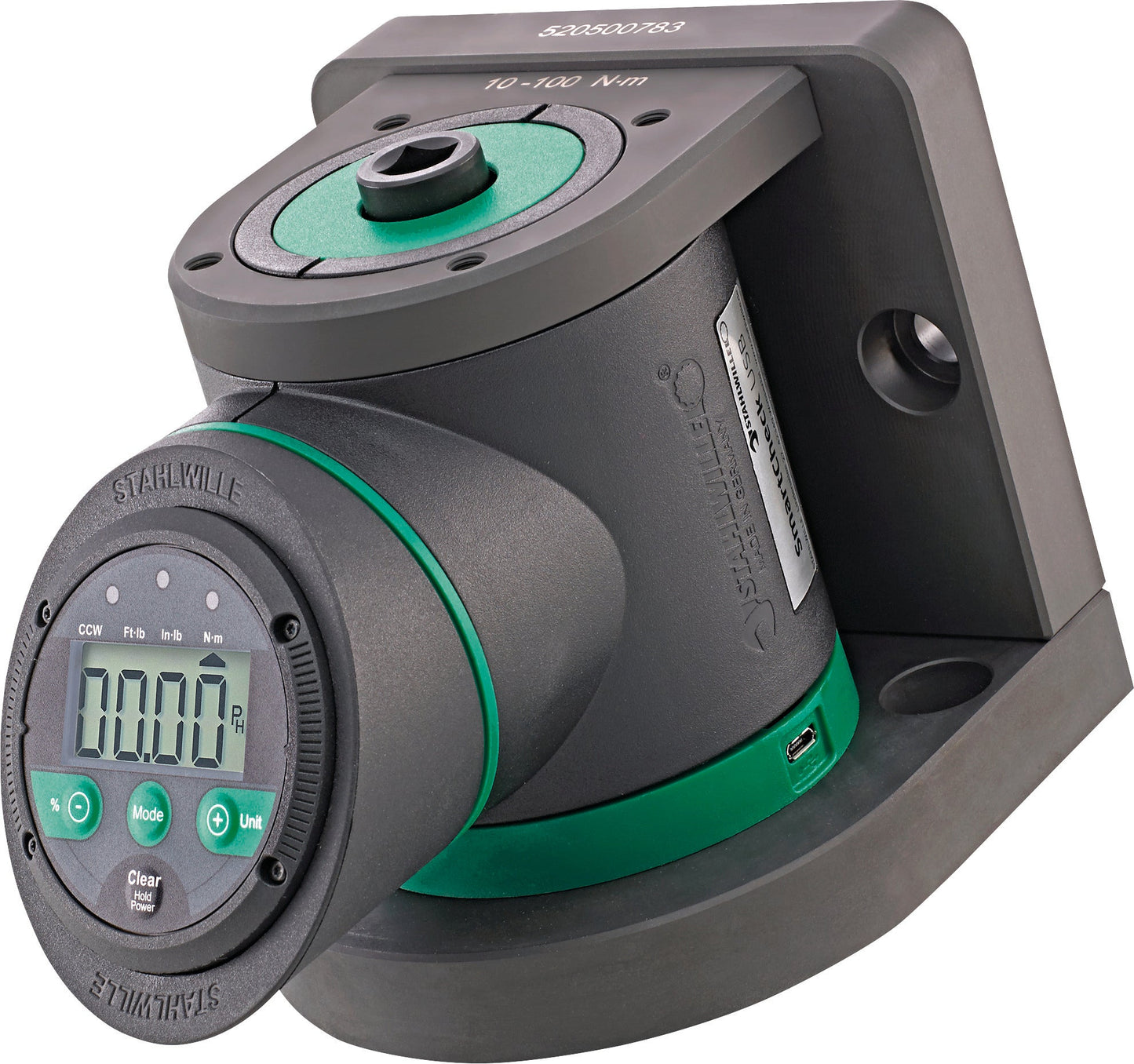

• Electronic testing device for checking and adjusting indicating and triggering torque screwdrivers.
• Simple, quick and reliable testing of torque screwdrivers to ensure quality in production.
• Simple documentation of the measured values on the PC via USB interface.
• For maximum user-friendliness, the device can be mounted in a horizontal or vertical test position.
• The large LCD can be rotated 180° and is easy to read from any position.

Properties

• for testing indicating and triggering torque screwdrivers
• large LCD display for optimum readability
• the display, the display holder, and the base can be rotated 180°
• compact design
• waterproof display and foil keyboard; case made of impact-resistant plastic
• simple installation thanks to pre-drilled holes in the mounting bracket
• horizontal or vertical installations
• for controlled right and left-hand torque testing
• 3 operating modes: running display of the applied torque (Track), display of the torque on triggering/kink point detection (First-Peak), peak value display (Peak-Hold)
• customized input of target torques and tolerances for evaluating the measured value possible
• with integrated visual and acoustic overload protection
• 3 measuring units (N·m, ft·lb, in·lb)

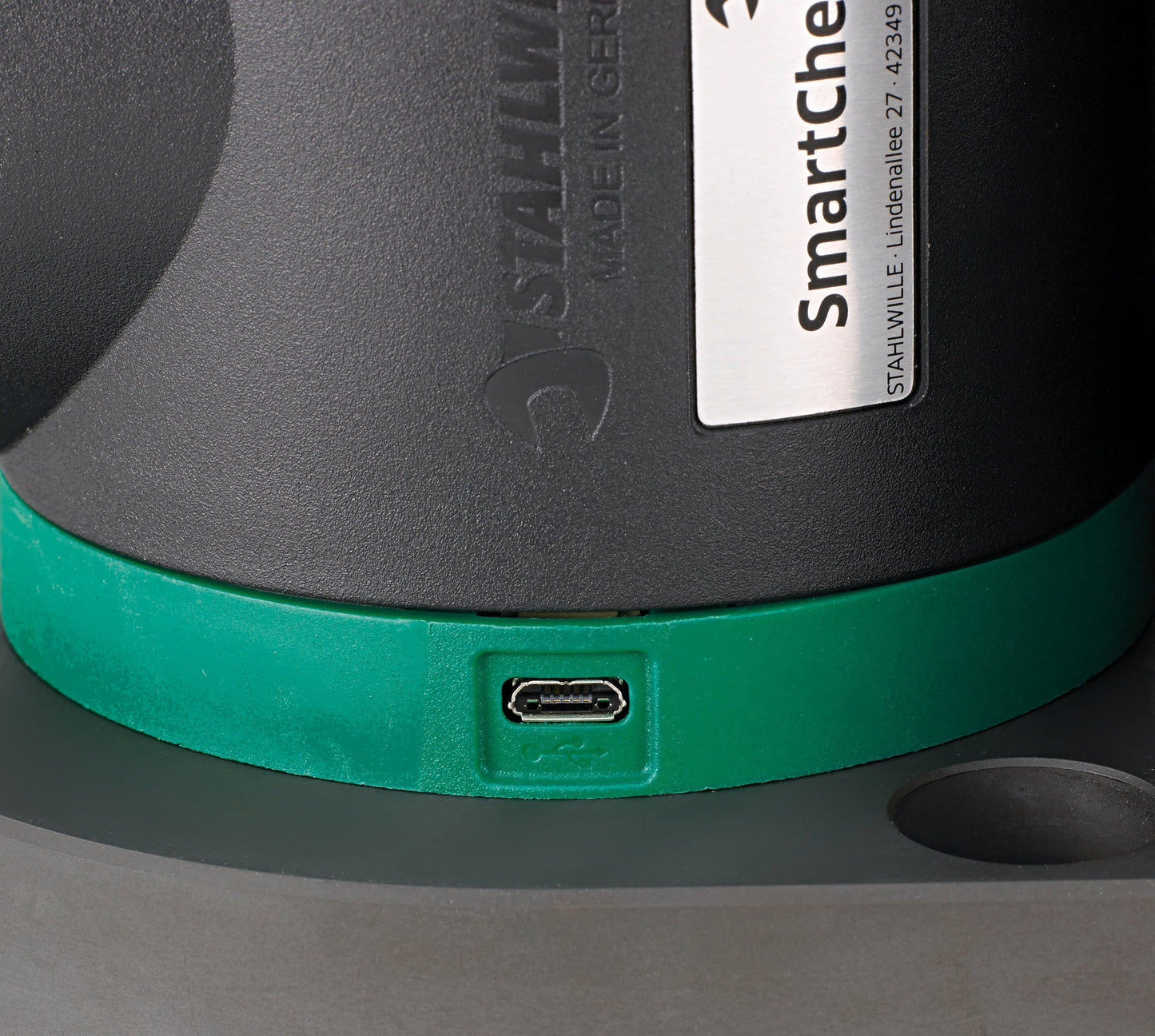

• micro USB interface for data export and for optional power supply
• data storage for up to 200 data records, including date and time stamp
• CheckMaster documentation software for transferring values and creating test certificates is available free of charge at www.stahlwille.de
• operation via included power supply, batteries or rechargeable batteries (4 x AAA or 1 x 9V block, including adapter)
• with factory calibration certificate
• delivered in a sturdy plastic box
• display deviation ± 1%
