Stahlwille - 96510760

Features

Our torque tools, transducers and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2 and based on DKD-R 10-8 for traceability of the measuring equipment.

Properties

• indicating and click-type
• integrated ratcheting bit-holder with 80 teeth that provide a particularly small ratchet angle of only 4.5° and thus enable particularly sensitive working - ideal for hard-to-reach fasteners
• after the tool trips, the slip mechanism prevents the preset tightening torque from being inadvertently exceeded, which protects against overtightening
• clear display of all the relevant information in a bright, battery-saving colour OLED display - readable at almost any angle
• visual assessment of the torqueingÏ" action by means of the traffic light colours in the display and laterally placed LEDs
• display in a number of languages
• long-lasting battery charge with battery-saving stand-by mode. The rechargeable batteries can be quickly and easily changed.
• stores up to 2500 fasteners and sequences for reading out and documenting on the PC later by means of the integrated micro-USB interface
• the target torque and tolerances can be individually set to evaluate the readings
• easy learning curve thanks to almost self-explanatory controls and an easily understood menu structure
• three operating modes (first peak, track, peak hold)
• tactile, visual and acoustic trigger signals.
• the ergonomically designed convex handle promotes strain-free working and is resistant to oils, grease, fuels, brake fluids and Skydrol
• clockwise and anticlockwise operation
• with 1/4" male square drive (6.3 DIN 3120/ISO 1174-1) for 1/4" sockets
• with 1/4" female square drive in the handle end (6.3 DIN 3120/ISO 1174-1) for attaching a 1/4" T-bar
• units of measure: cN·m, N·m, ft·lb, in·lb, in·oz

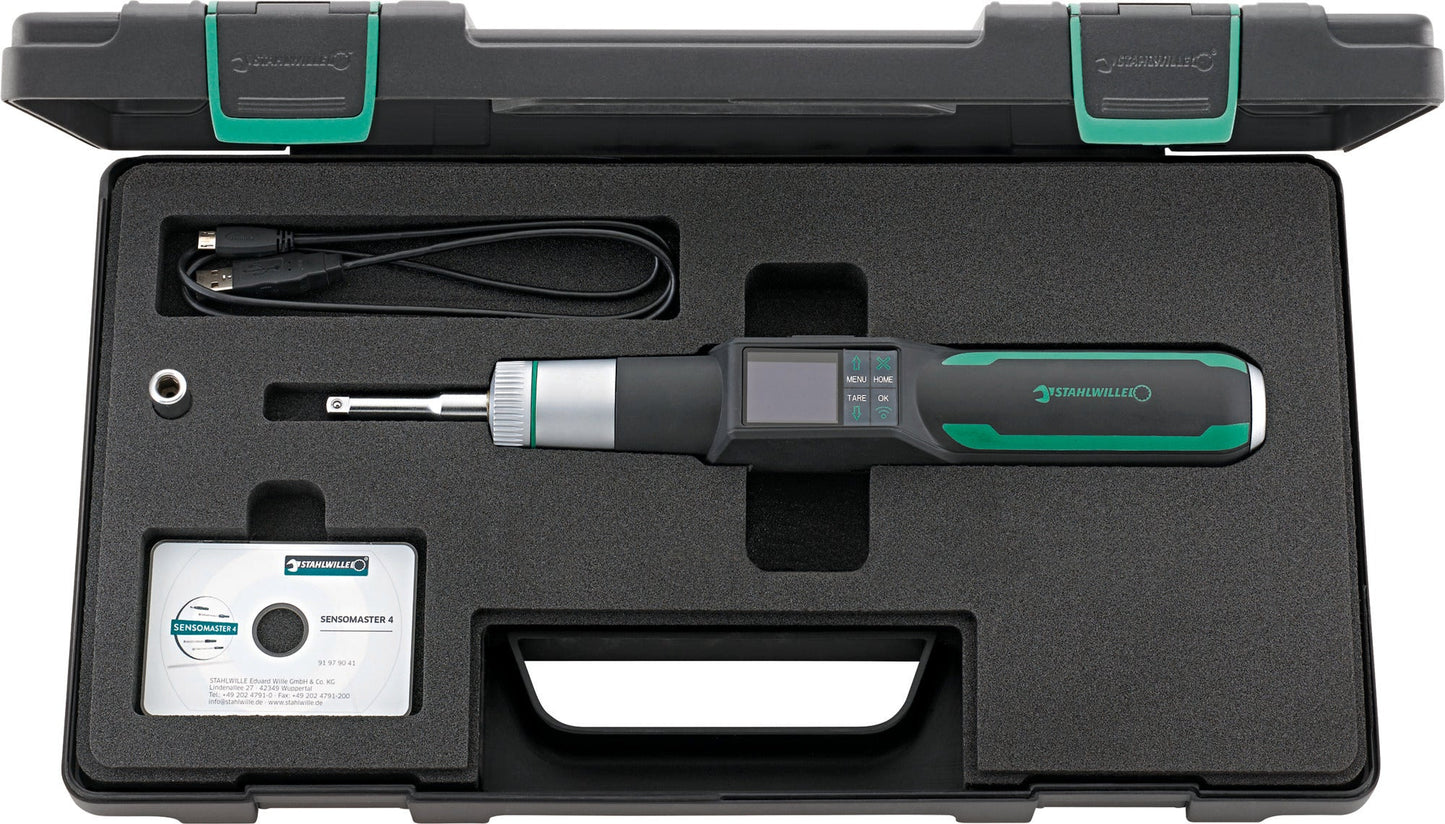

• included in the set: SensoMaster 4 software, USB cable, bit holder, T-bar handle (size 10)
• supplied with 3.6 V lithium battery, type 18650, packaged according to UN 3480
• patented
• certificate in accordance with DIN EN ISO 6789-2:2017
• in robust plastic case
• display deviation value ± 4%
