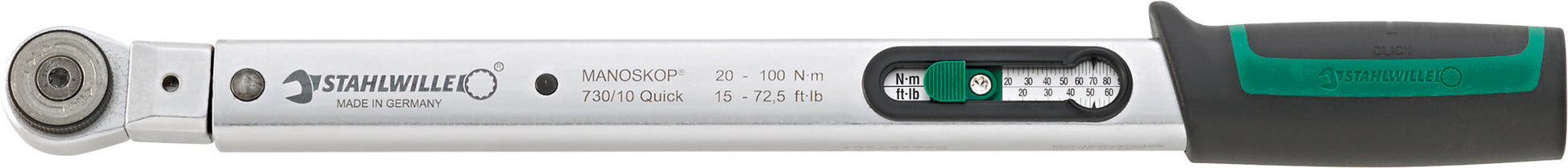

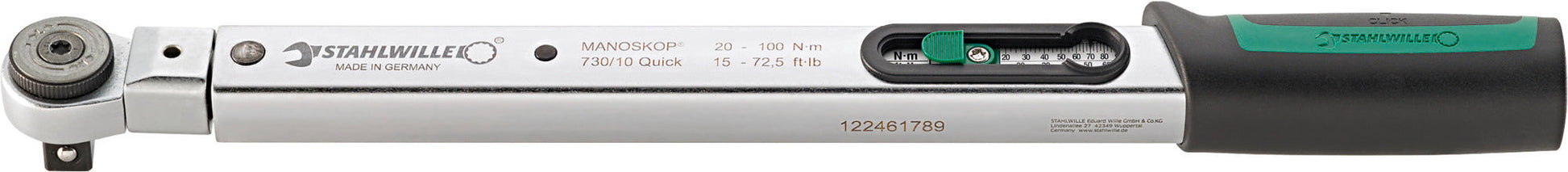

Stahlwille - 96504002

Features

Our torque wrench is equipped with a low-wear trigger system with a bending beam. Unlike conventional torque wrenches with coiled springs, the flexible rod is not preloaded in unloaded state, which means that the 'spring' does not need to be reset to "0"� after use.

Properties

• releasing
• No reset to "0" necessary, as measuring element is only loaded during the tightening process
• receptacle for interchangeable plug-in tools
• QuickRelease safety lock
• Flash adjustment by easy-to-operate clamping lever in the handle
• ergonomically shaped, non-slip adjustment element with thumb recess
• optimised ball handle for fatigue-free working
• double stop signal
• double scale N-m/ft-lb or N-m/in-lb
• on request also available as N-m version only without double scale
• left-hand tightening by turning over the plug-in tools
• further loads after releasing or loads against the functional direction, e.g. with stuck screws, do not affect the releasing mechanism, which is thus protected against damage
• calibration with the perfectControl® calibration device no. 7794 or the calibration system no. 7706. If necessary, readjustment without disassembly
• certificate according to DIN EN ISO 6789-2:2017
• display deviation ± 4 %
