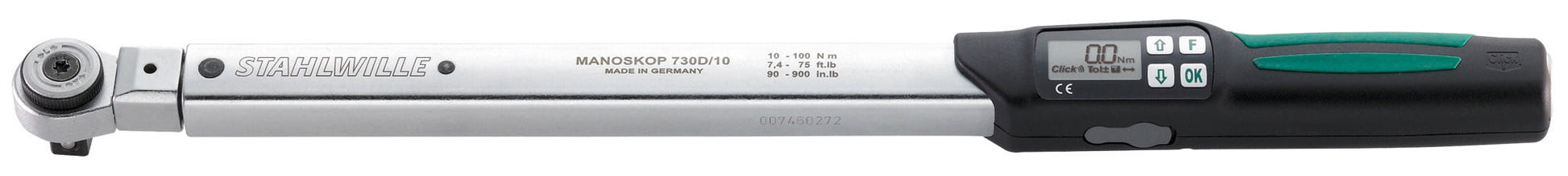

Stahlwille - 96501810

Features

Our torque tools, transducers and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2 and based on DKD-R 10-8 for traceability of the measuring equipment.

Properties

• tactile and acoustic trigger signal
• mount for interchangeable insert tools
• QuickRelease safety lock
• fast setting using convenient keypad
• automatic compensation to achieve correct tightening torque even if a changed extension is entered
• overload protection by means of acoustic and visual signals
• automatic keypad lock prevents inadvertent changes
• display also works for anticlockwise torque
• units of measurement: N·m, ft·lb, in·lb
• different tolerance limits can be set for each joint
• visual red and green signals in the display confirm the status of the joint
• additional security for presets (function mode, trigger or preset value, unit of measurement, tolerance, save, deviating extension) using PIN code
• up to 7.500 measurements can be stored
• USB interface
• automatic notification of the next calibration date
• calibration using perfectControl® calibrating unit No 7794 or calibration system No 7791
• two-component handle with ergonomically designed green softer layers (resistant to oils, grease, fuels, brake fluids and skydrol)
• certificate in accordance with DIN EN ISO 6789-2:2017
• in sturdy plastic box (sizes 40-100 in steel box)
• patent
• supplied with two 1.5 V AA batteries. AA/LR6, 1.2 V rechargeable cells may also be used
• display deviation value ± 2%, ± 1 digit
