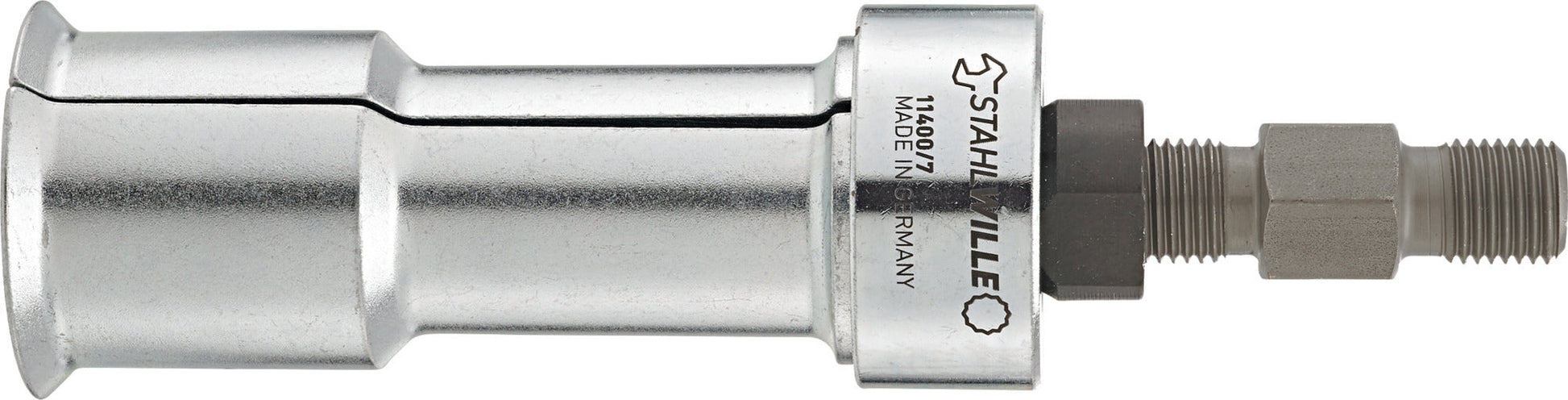

Stahlwille - 71040004

• Professional special tool for extracting ball bearings, bushings or similar from drive units or trolleys.
• Gentle machining due to even distribution of force on the workpiece.
• Uncomplicated removal is achieved by inserting the internal extractor into the bearing and screwing in the spindle.
• Sharp shell projections remove even very tightly fitting components.
• A slide hammer 11402/1 or a counter support 11401/1 is required for the quick removal of components.

Properties

• for very tight-fitting ball bearings, ball bearing outer rings and bushes that are not freely accessible from the outside
• disassembly is carried out by inserting the internal extractor into the bearing and screwing in the spindle
• the extractor jaws spread and the extractor lugs press under the bearing
• a slide hammer or counter support is always required, which is screwed onto the connecting thread
• can be used with slide hammer 11402/1 or counter support 11401/1
