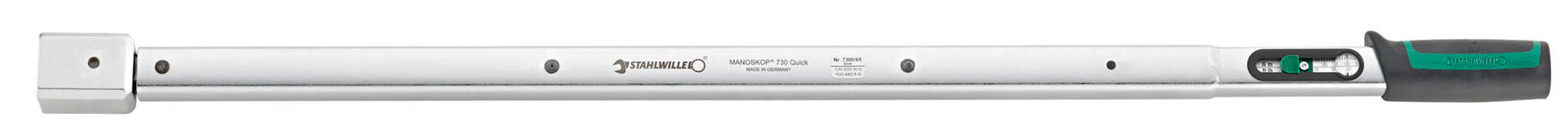

Stahlwille - 50184565

• Flash setting by easy-to-operate clamping lever in the handle.
• Efficient. No resetting to "0" necessary, as measuring element is only loaded during the tightening process.
• Ergonomically shaped, non-slip adjustment element with thumb recess and optimised ball handle for fatigue-free working.
• Releasing torque wrench with receptacle for exchangeable plug-in tools, double stop signal (can be felt and heard), left-hand tightening by turning over the plug-in tools.
• With calibration certificate, display deviation ± 4 %.

Features

The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place and are only released again at the push of a button for a quick tool change.

Properties

• click-type
• the measuring element is only under load while force is being applied, no need for manual reset to zero
• mount for interchangeable insert/shell tools
• QuickRelease safety lock (sizes 5-65)
• rapid setting thanks to easy-action locking lever in the handle (sizes 5-65)
• ergonomically designed, non-slip adjuster with a thumb recess
• optimised convex handle for strain-free working
• dual stop signal
• twin scales N·m/ft·lb and N·m/in·lb (sizes 5-80)
• on request also available as an N·m-only version without twin scale (sizes 5-65)
• can be applied for either clockwise or anticlockwise tightening by turning the inserts over
• any force applied to the tool after the 'click' or applied in the opposite direction to the current function - e.g. forcible loosening of a jammed screw - does not act on the trigger mechanism and cannot cause damage to it
• calibration using perfectControl® calibrating unit No 7794 or calibration system No 7706. Readjustment does not require disassembly
• certificate in accordance with DIN EN ISO 6789-2:2017
• display deviation value ± 4%
