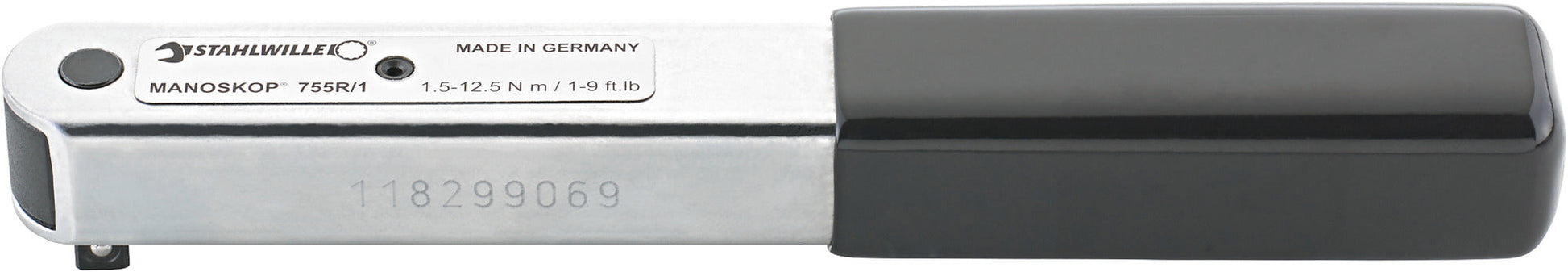

Stahlwille - 50100001

Features

Our torque tools, transducers and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2 and based on DKD-R 10-8 for traceability of the measuring equipment.

Properties

For work on conveyor belts or in serial production. No adjustment scale; therefore adjustment with test equipment is required, e.g. with the STAHLWILLE test devices No. 7707 W, SmartCheck or the calibration systems No. 7794, No. 7706.

• Independent point of force application
• Triggering
• With built-in ratchet for sockets
• Dual stop signal
• Particularly lightweight and easy to handle
• Handle and shaft made of square steel pipe
• Further loading after triggering or loads in the opposite direction of operation (max. up to the measurement range limit of the torque wrench) do not affect the trigger mechanism, which protects it from damage
• On request with pre-set trigger value (price surcharge 10%)
• Adjustment with torque wrench test device
• Display deviation ± 4 %
