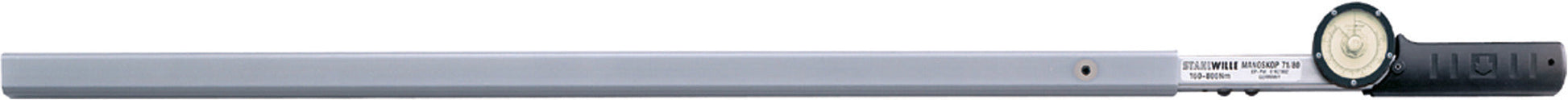

Stahlwille - 50030080

Features

Our torque tools, transducers and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2 and based on DKD-R 10-8 for traceability of the measuring equipment.

Properties

• indicating type
• mount for interchangeable shell tools
• all 14 x 18 mm insert tools can also be used with insert tool adaptor No 7370/80 (max. 650 N·m)
• trailing pointer dial
• twin scales N·m/ft·lb
• scale is made of luminescent light yellow special film enabling clear readings even in poor light conditions
• handle with integrated force compensator
• measuring element is a bending plate housed in the handle
• with overload protection
• can be applied for either clockwise or anticlockwise tightening by turning the wrench over
• calibration using perfectControl® calibrating unit No 7794 or calibration system No 7706. Adjustment without disassembly
• certificate in accordance with DIN EN ISO 6789-2:2017
• supplied in textile bag
• display deviation value ± 4%
• display deviation value ± 4%
