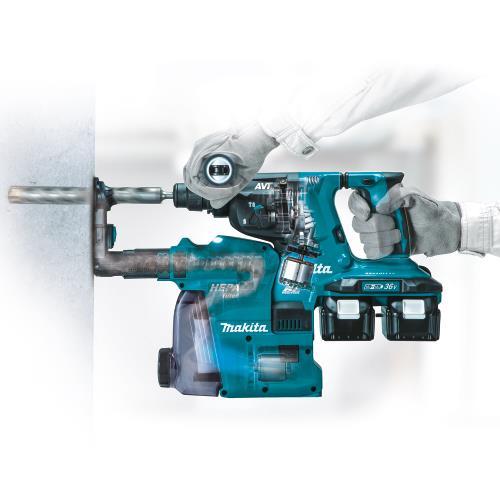

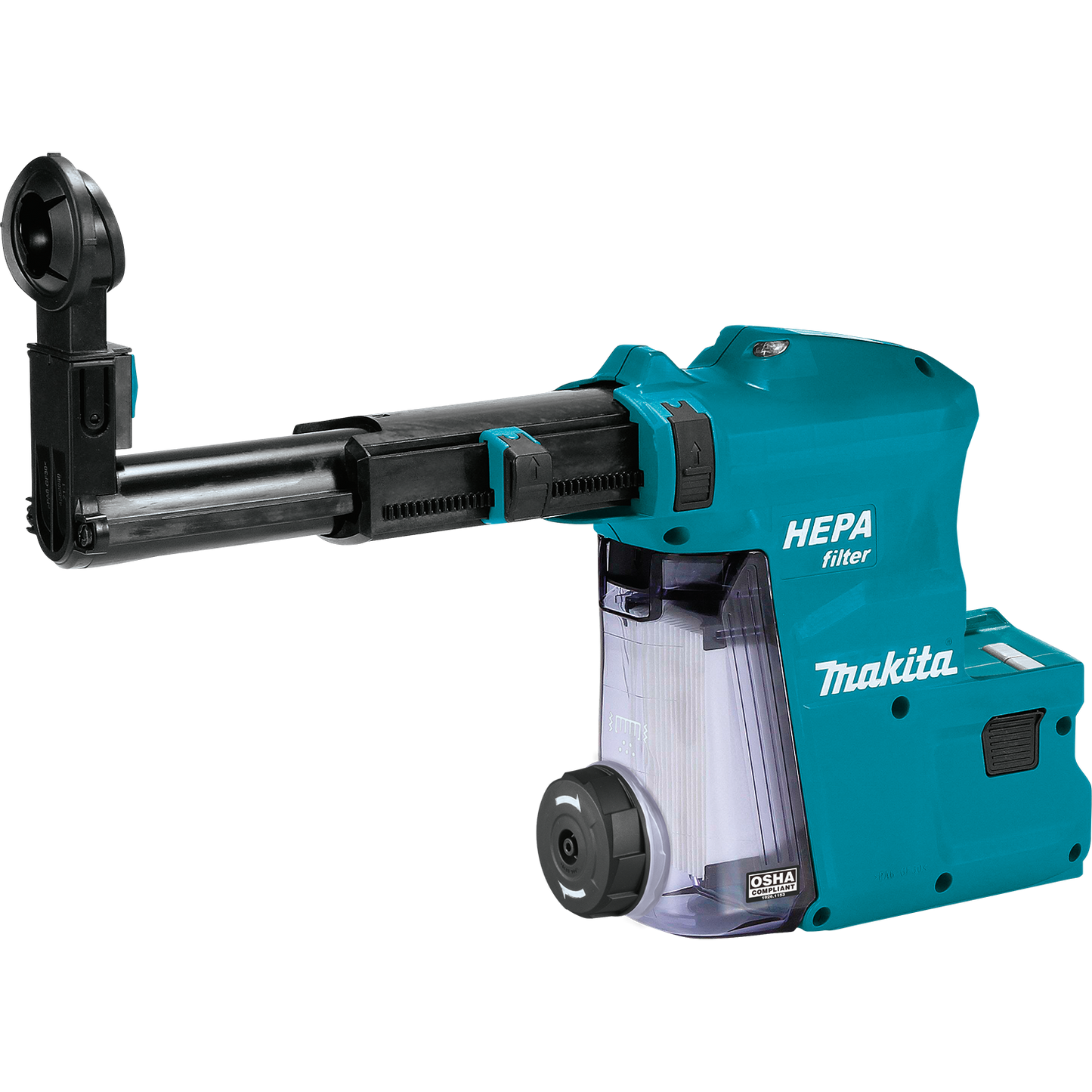

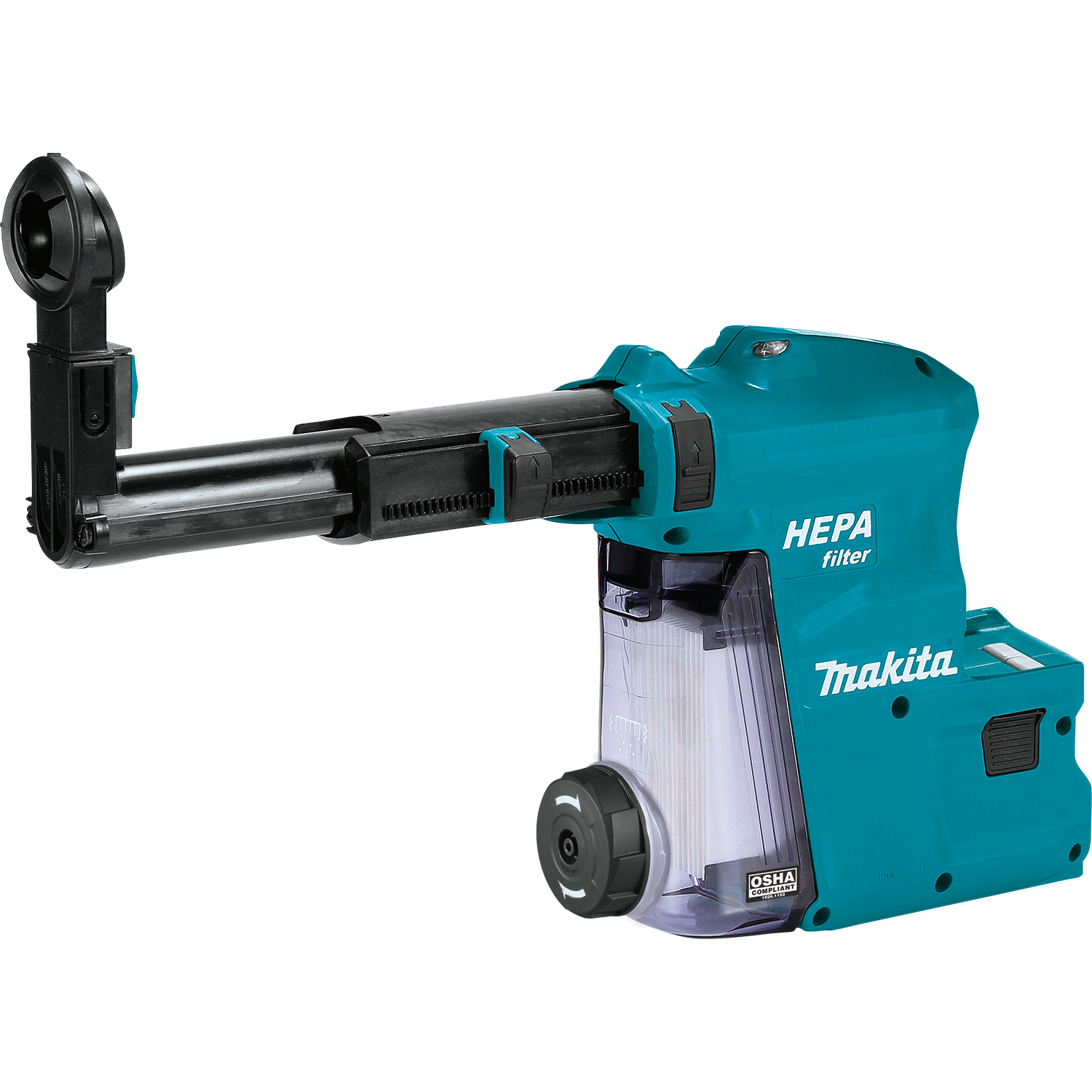

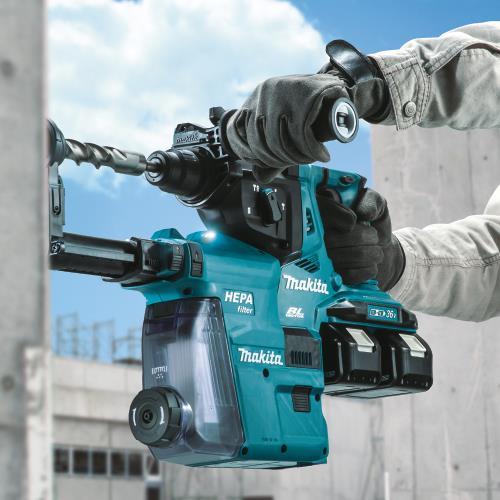

The Dust Extractor Attachment with HEPA Filter (model DX09) is for use with the 18V LXT® Lithium-Ion Cordless Brushless 1" Rotary Hammer (XRH11, sold separately). The DX09 Dust Collection Vacuum Attachment features a HEPA filter engineered to capture 99.97% of dust particles (size .3 microns and larger) for improved dust collection and OSHA Table 1 compliance. The Dust Extractor Attachment is powered by a separate motor allowing the rotary hammer to consistently maintain peak drilling performance. The high-capacity dust container is transparent and provides an accurate level indicator of collected material. The container captures concrete dust during drilling; activated by the tool and provides a 3-second delay to help capture remaining dust. With a quick release, the dust container can be easily detached from the dust collection attachment when needed.

• DESIGN : OSHA Table 1 compliant on-board dust extractor has a filter cleaning mechanism for optimum suction
• DUST MANAGEMENT : Powered by a separate motor allows rotary hammer to consistently maintain peak drilling performance
• EFFICIENCY : Efficient HEPA filtration system captures 99.97% of particulates .3 microns and larger
• CAPACITY : Two stage extension allows drilling up to 3-1/2" & maximum 7-1/2" deep; up to 1-1/8" diameter holes
• INCLUDES : Dust Extractor Attachment with HEPA Filter

• OSHA Table 1 compliant on-board dust extractor provides a filter cleaning mechanism designed to help maintain optimum suction efficiency
• Extractor is powered by separate motor allowing the rotary hammer to consistently maintain peak drilling performance
• Captures concrete dust during drilling; activated by the tool and provides a 3-second delay to help capture remaining dust
• Efficient HEPA filtration system captures 99.97% of particulates .3 microns and larger
• Two stage length extension allows drilling up to 3-1/2" and maximum 7-1/2" deep; up to 1-1/8" diameter holes
• Depth stop adjustment button allows for accurate drilling depth

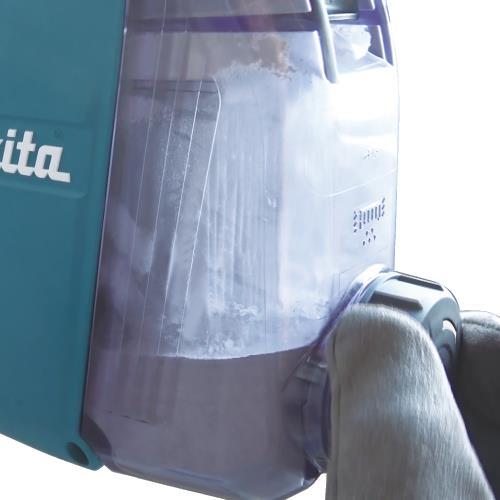

• Transparent dust container provides needed visibility in determining container fullness

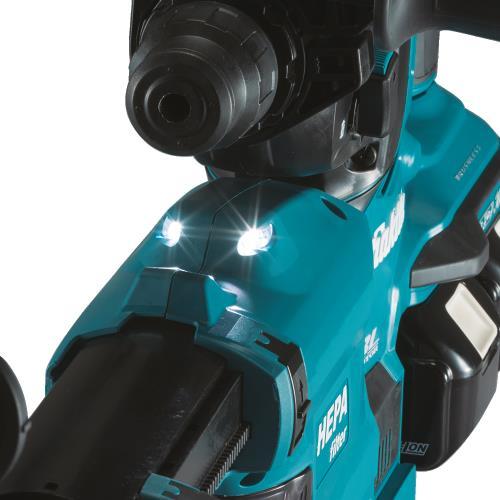

• Built-in dual L.E.D. light with an independent on/off illuminates the work area
• Compatible with Makita 18V X2 Rotary Hammer model XRH11
