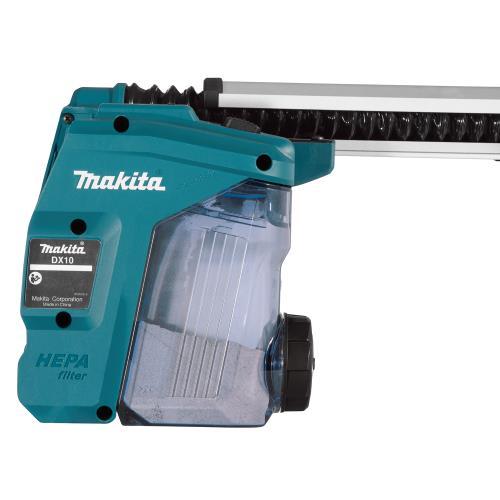

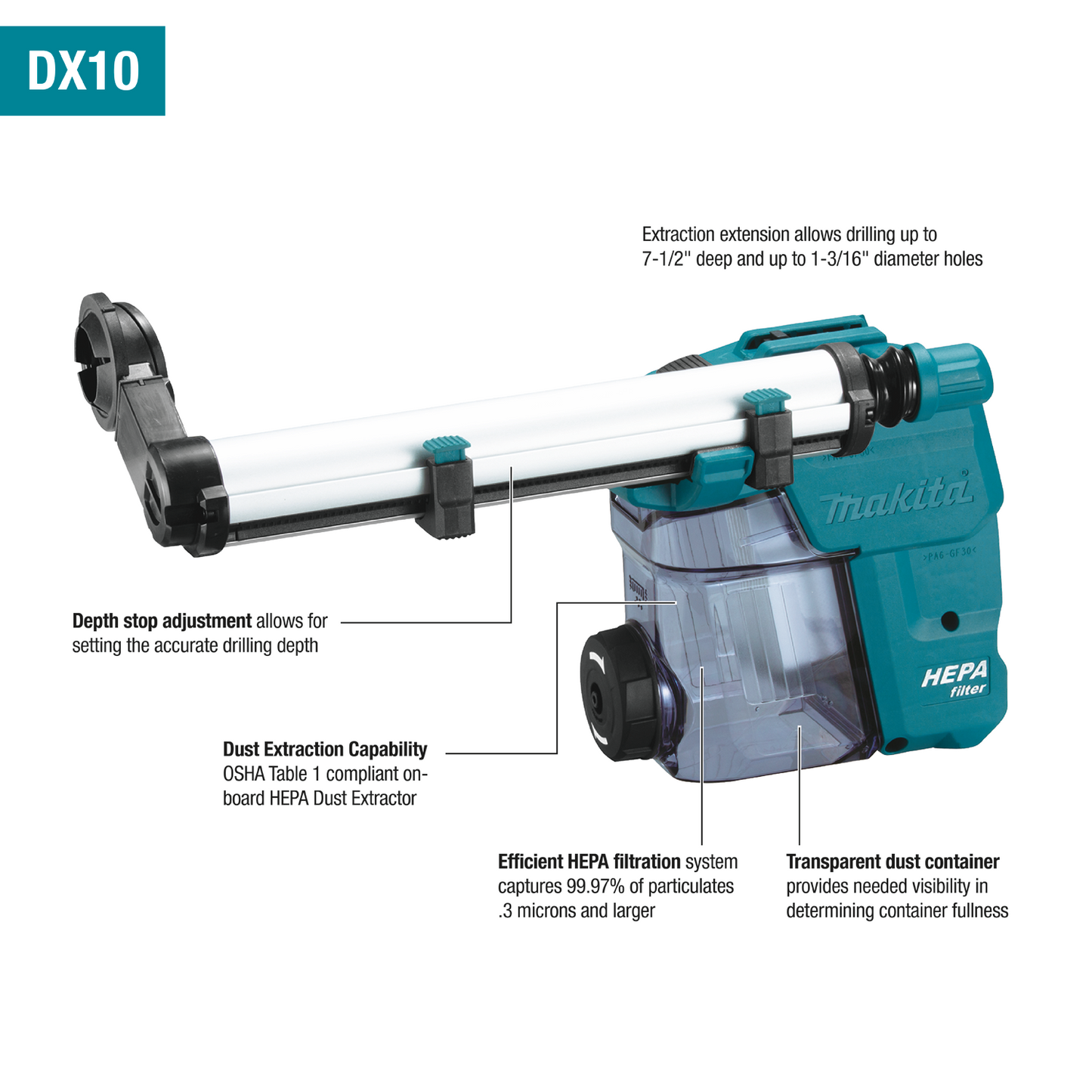

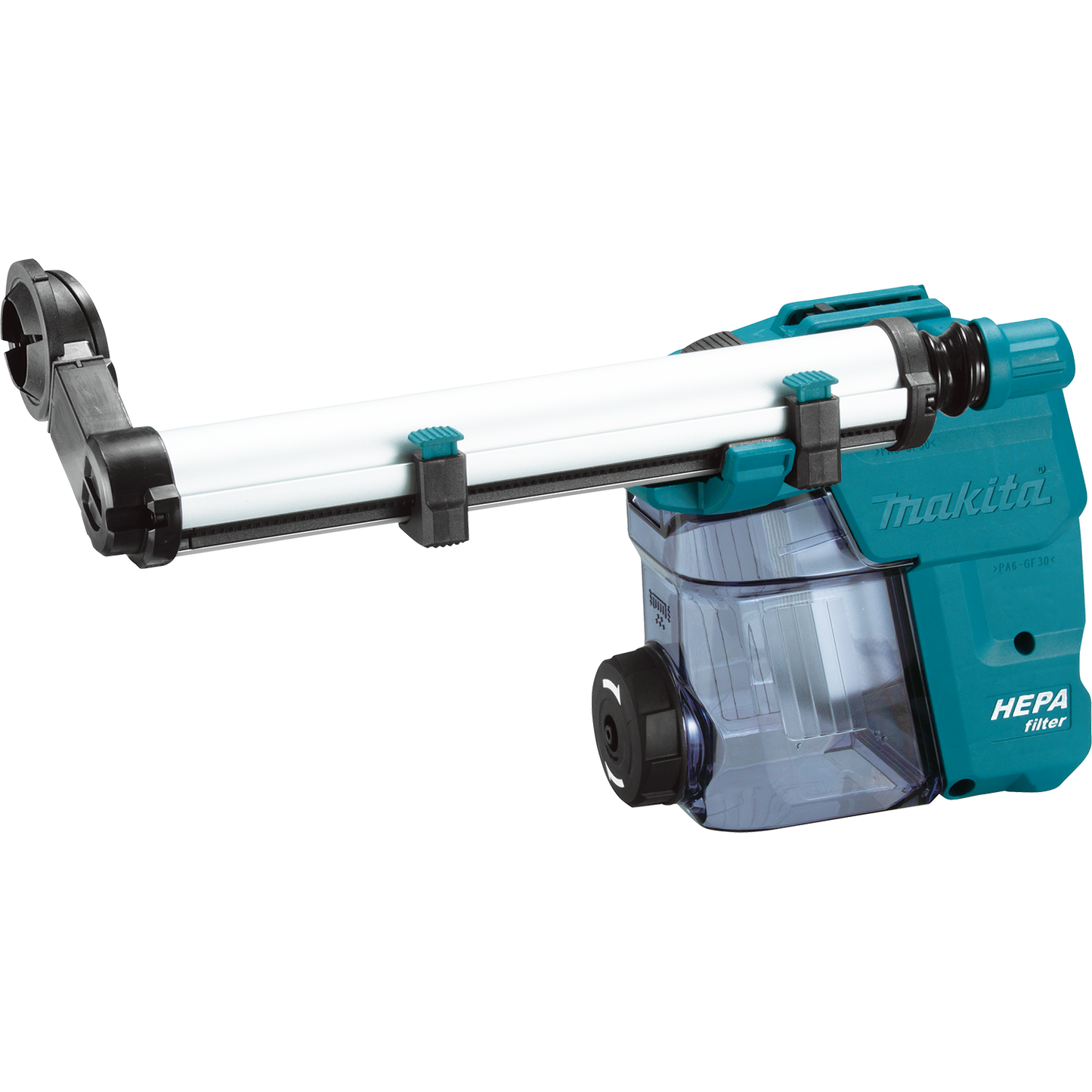

The Dust Extractor Attachment with HEPA Filter (DX10) is for use with the 1-3/16” AVT® Rotary Hammer (HR3011FC, sold separately). It captures concrete dust during drilling and is activated by the tool. The Dust Extractor Attachment features a HEPA filter engineered to capture 99.97% of dust particles (size .3 microns and larger) for improved dust collection and OSHA Table 1 compliance. The high-capacity dust container is transparent and provides an accurate level indicator of collected material.The extractor extension allows for drilling up to 7-1/2” deep and up to 1-3/16” diameter holes. The depth-stop adjustment button allows for an accurate drilling depth.

• DUST MANAGEMENT : Captures concrete dust during drilling and is activated by the tool for operator convenience
• DESIGN : OSHA Table 1 compliant on-board dust extractor includes a filter cleaning mechanism
• EFFICIENCY : HEPA filtration system captures 99.97% of particulates .3 microns and larger with filter 197556-3
• CAPACITY : Extraction extension allows drilling up to 7-1/2" deep and up to 1-3/16" diameter holes
• INCLUDES : HEPA filter and sealing caps

• Captures concrete dust during drilling and is activated by the tool for operator convenience
• OSHA Table 1 compliant on-board dust extractor includes a filter cleaning mechanism designed to help maintain optimum suction efficiency
• Efficient HEPA filtration system captures 99.97% of particulates .3 microns and larger
• Powered by motor fan blade in tool to maintain concrete dust suction performance
• Extraction extension allows drilling up to 7-1/2" deep and up to 1-3/16" diameter holes
• Depth stop adjustment button allows for accurate drilling depth

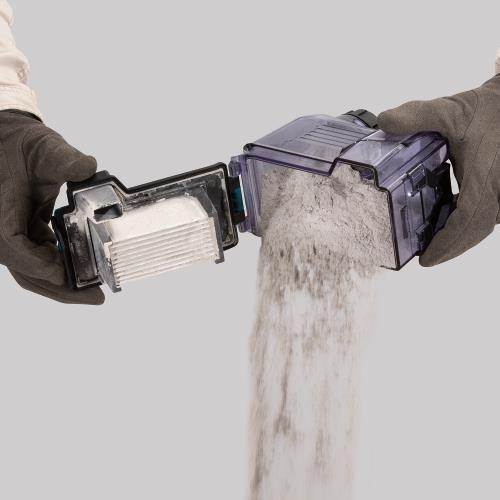

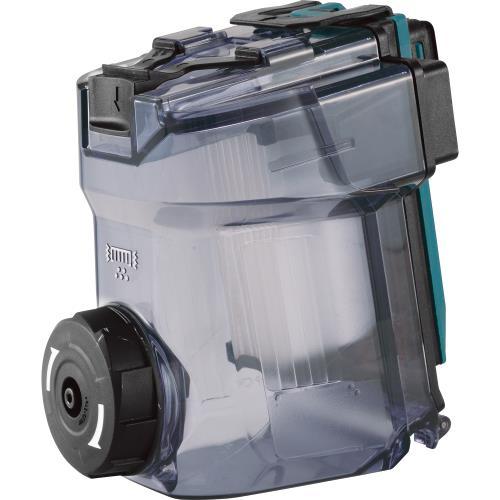

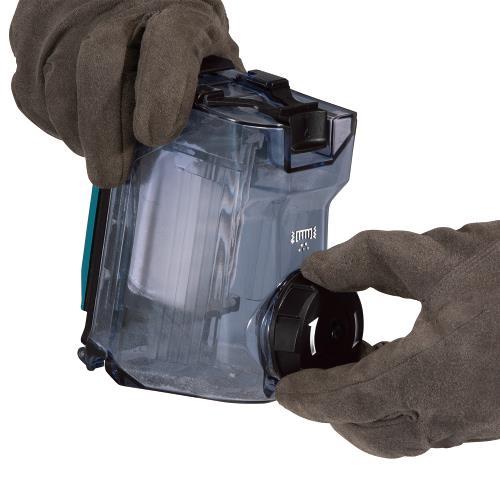

• Transparent dust container provides a visible fill level and can hold up to 50 fl. oz. of dust
• Compatible with Makita Rotary Hammer models HR3011FC and HR3001C
