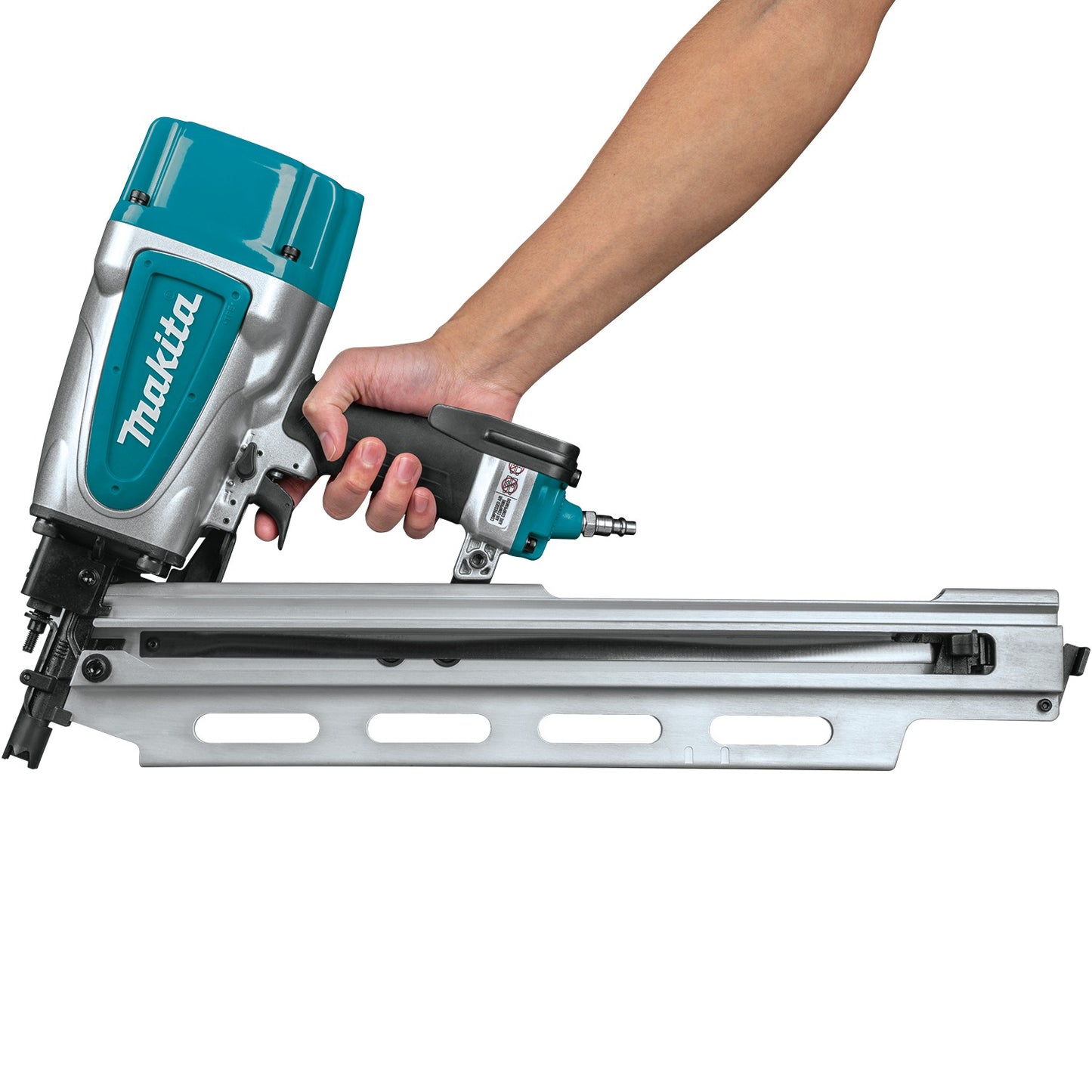

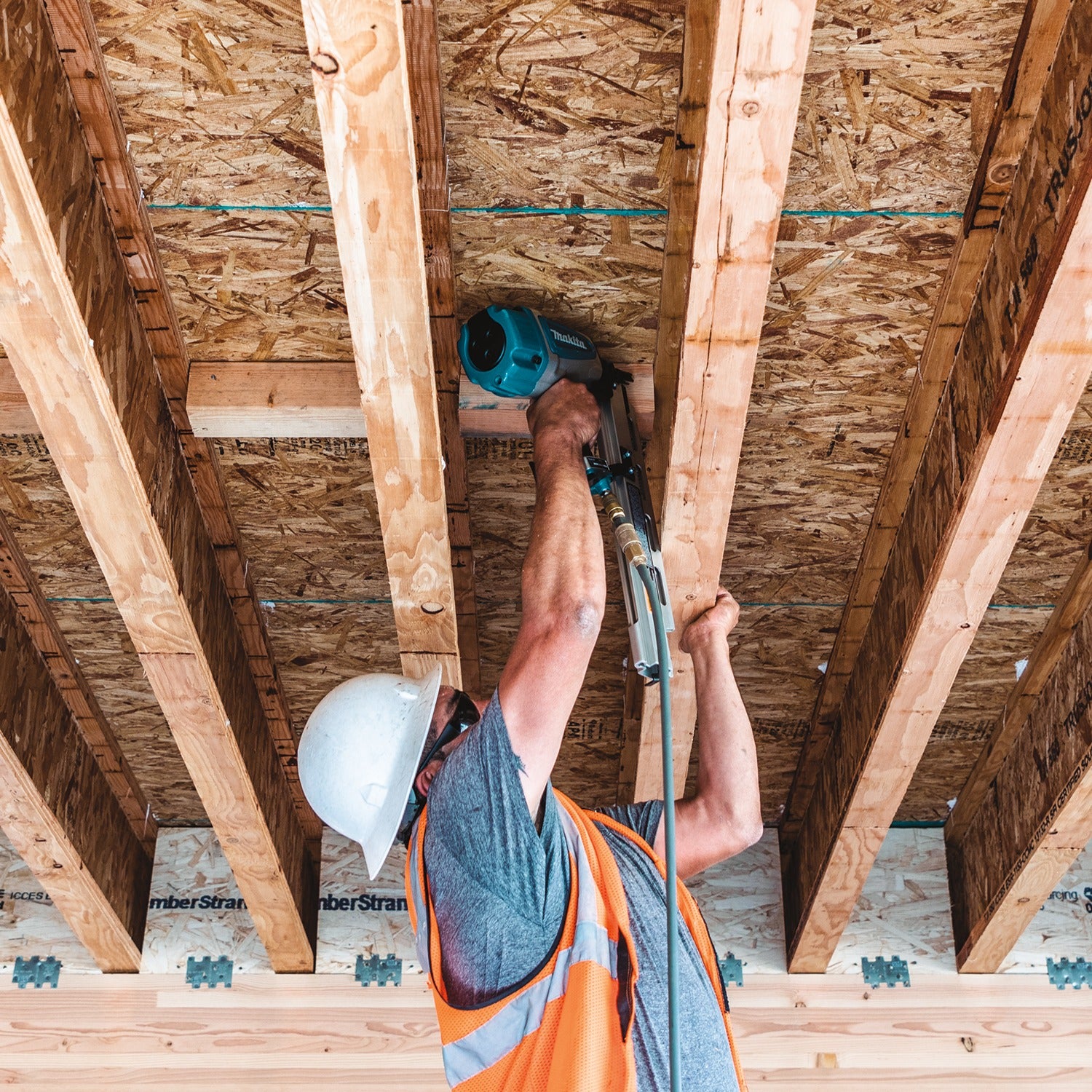

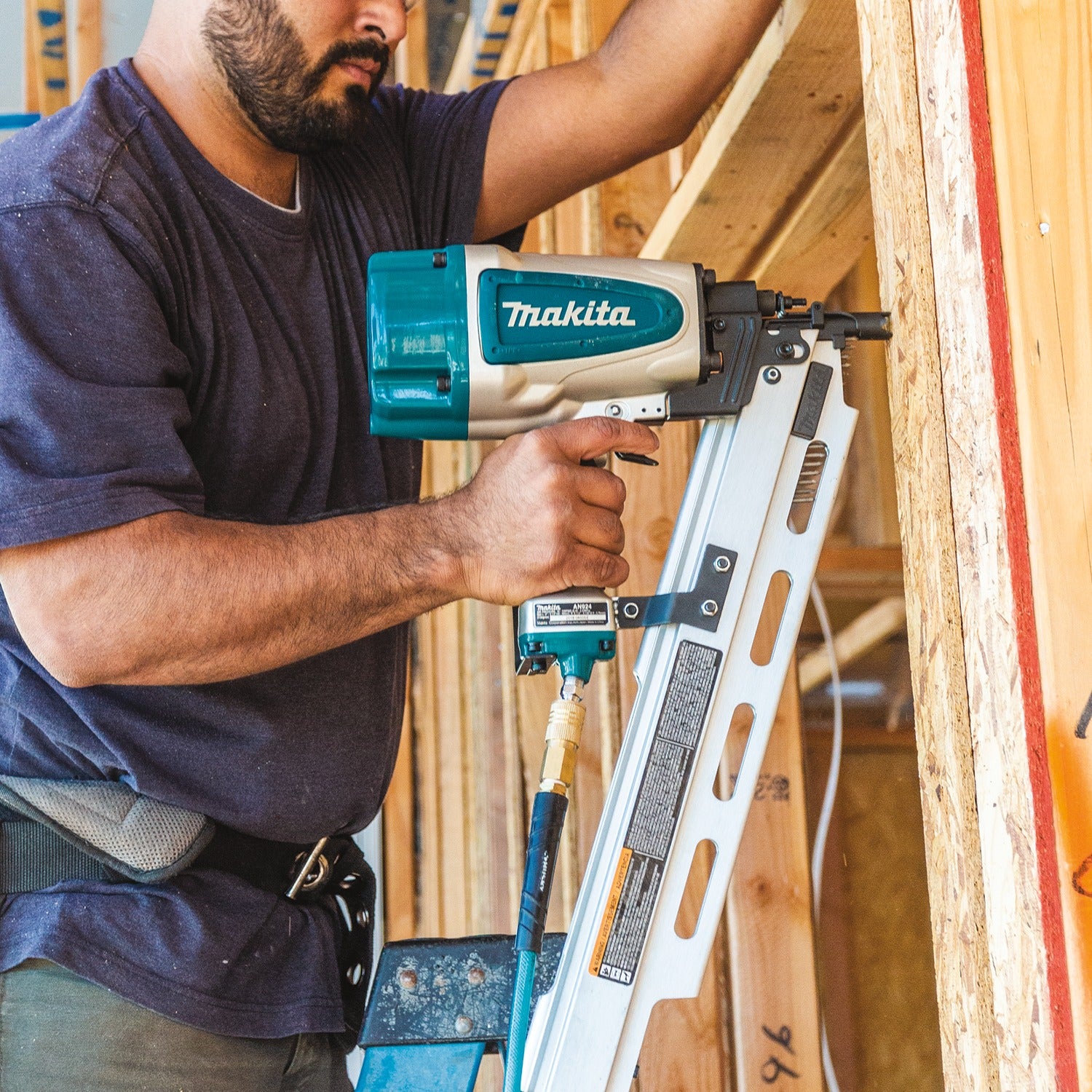

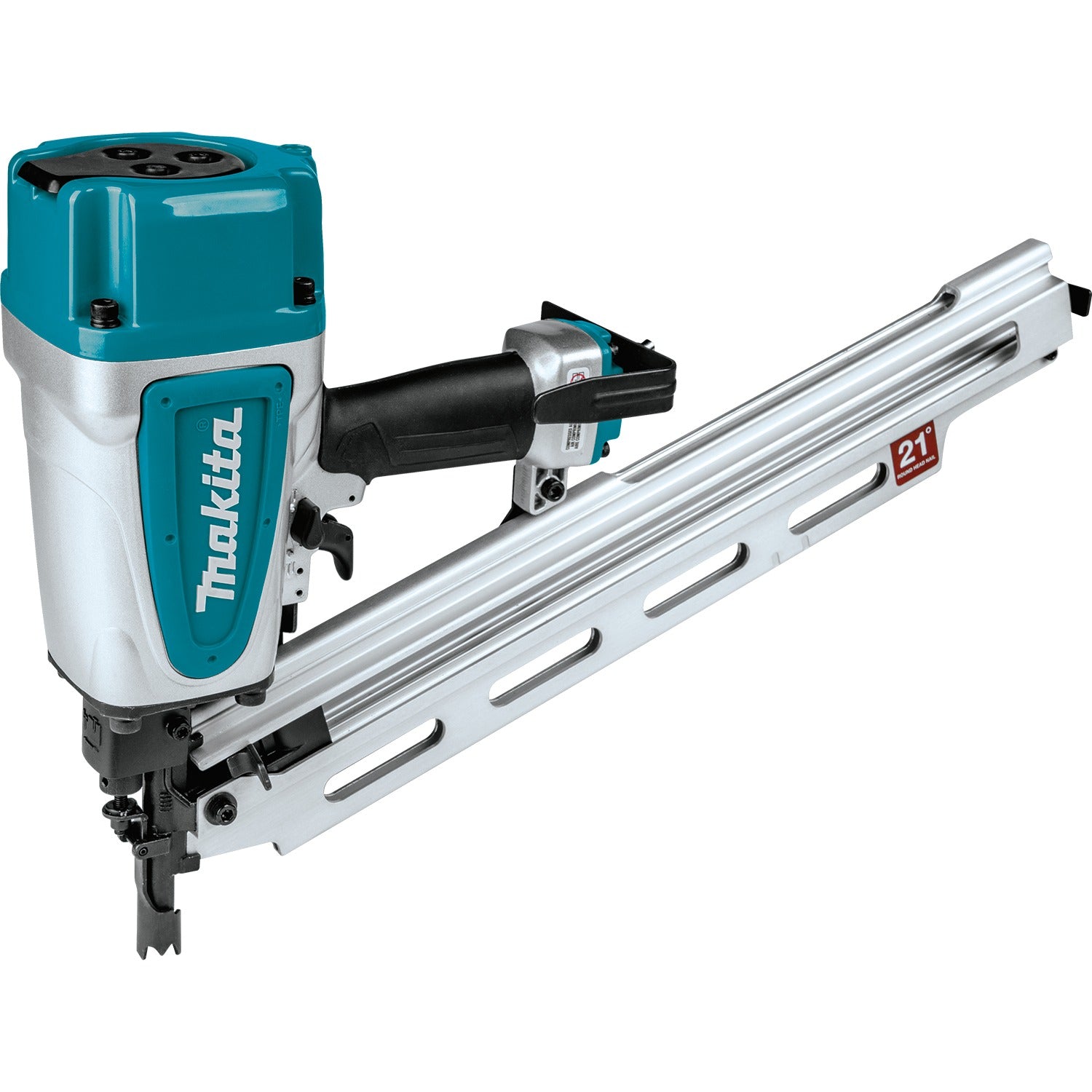

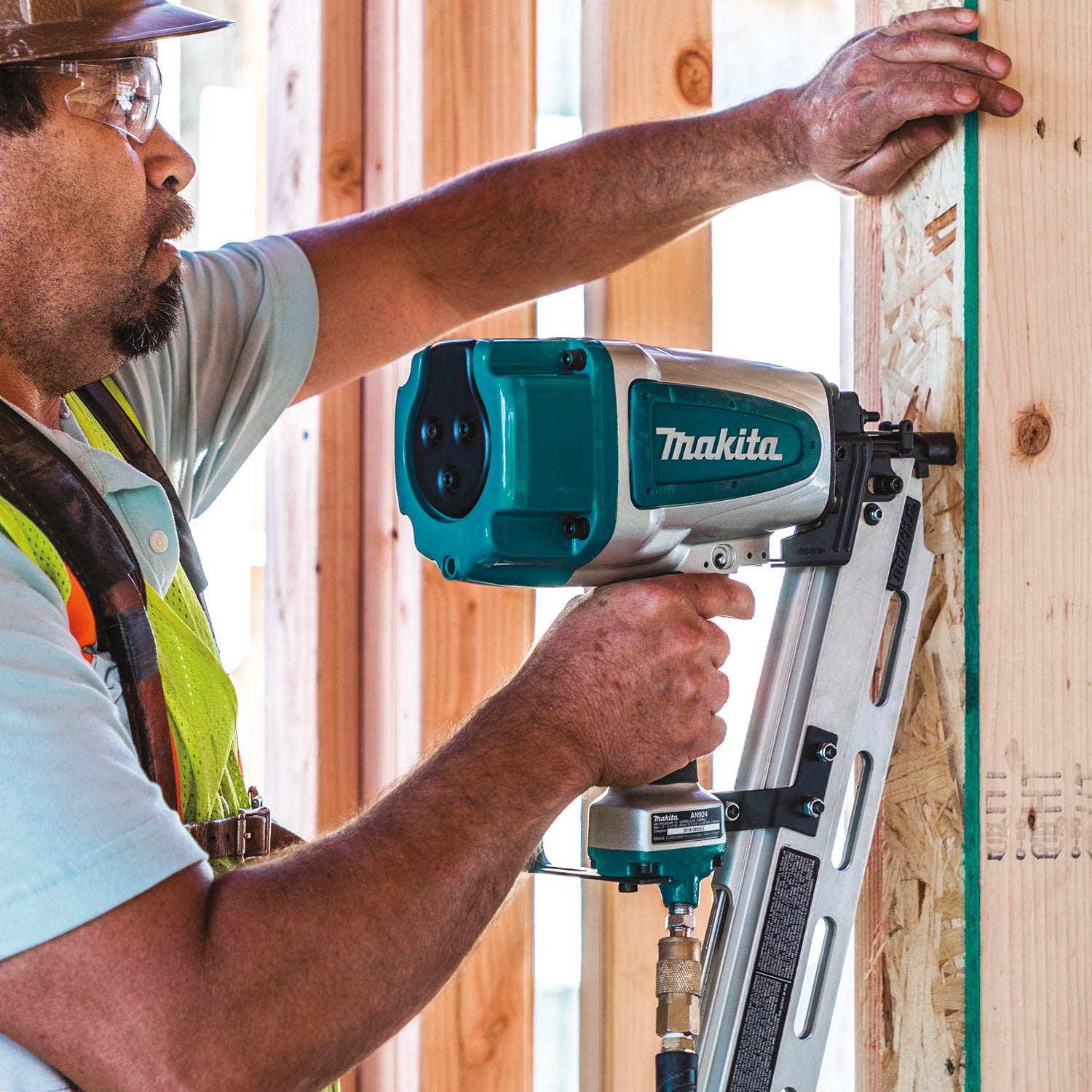

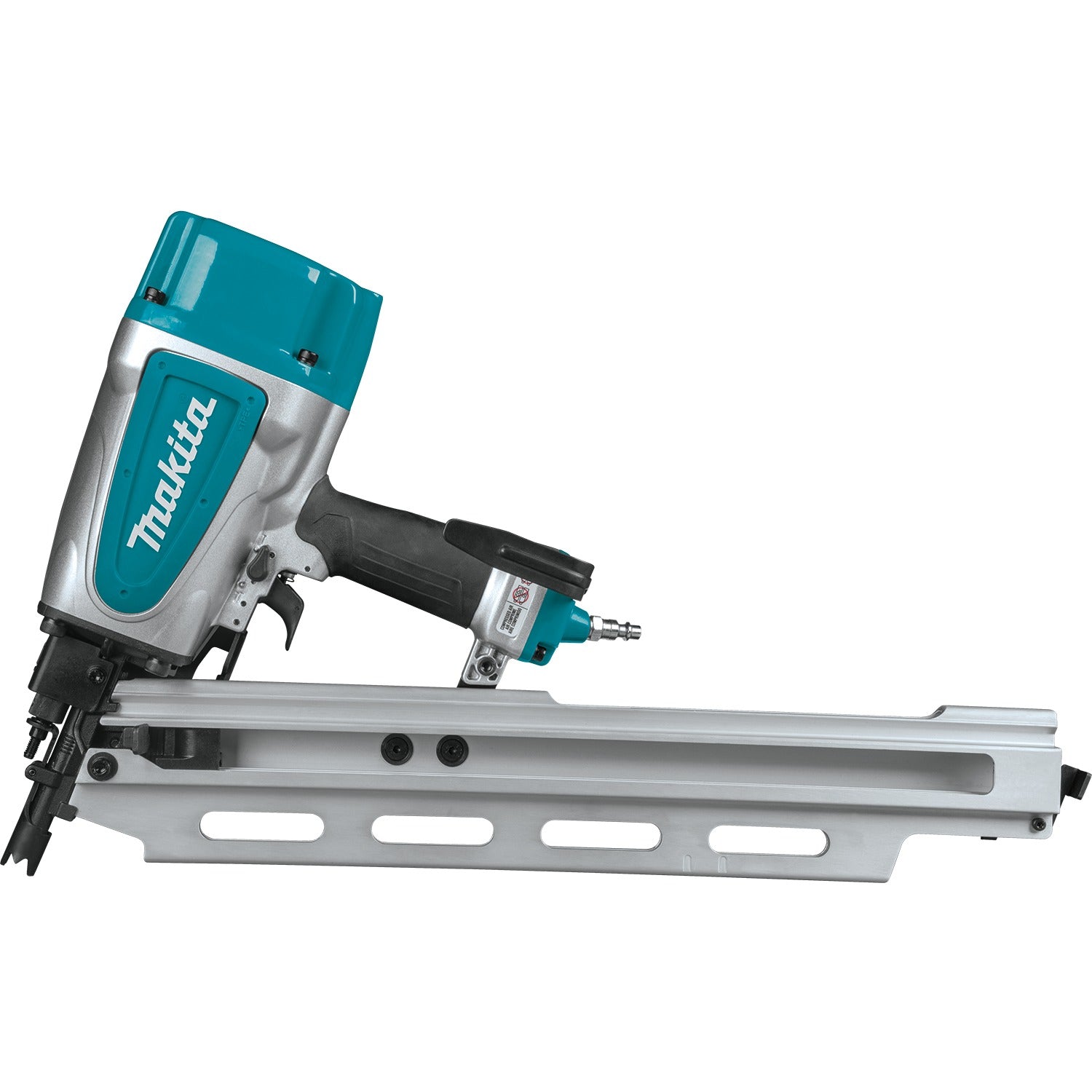

The 21º Full Round Head 3-1/2" Framing Nailer (model AN924) combines durable construction and robust performance with ease-of-use features for wood framing applications. The AN924 is engineered for a range of applications including framing walls, floors and roofs, as well as construction of roof and floor decking, floor and wall sheathing/siding, and sub-flooring. It is ideal for framers, roofers and carpenters.

The AN924 drives 21º plastic collated framing nails from 2" to 3 1/2" in length and .113 to .148 in diameter. It has a 2-mode selector switch (bump, sequential) for increased convenience. The AN924 has a lightweight design (only 8.3 lbs.) with durability features that include a heat-treated S7 steel driver blade, a solid aluminum top-loading magazine, and a nail lock-out mechanism that protects the tool and work surface from dry-fires. Added features include tool-less depth adjustment for flush or countersink nailing, added tool hook, and an ergonomic rubberized grip.

Key Features:

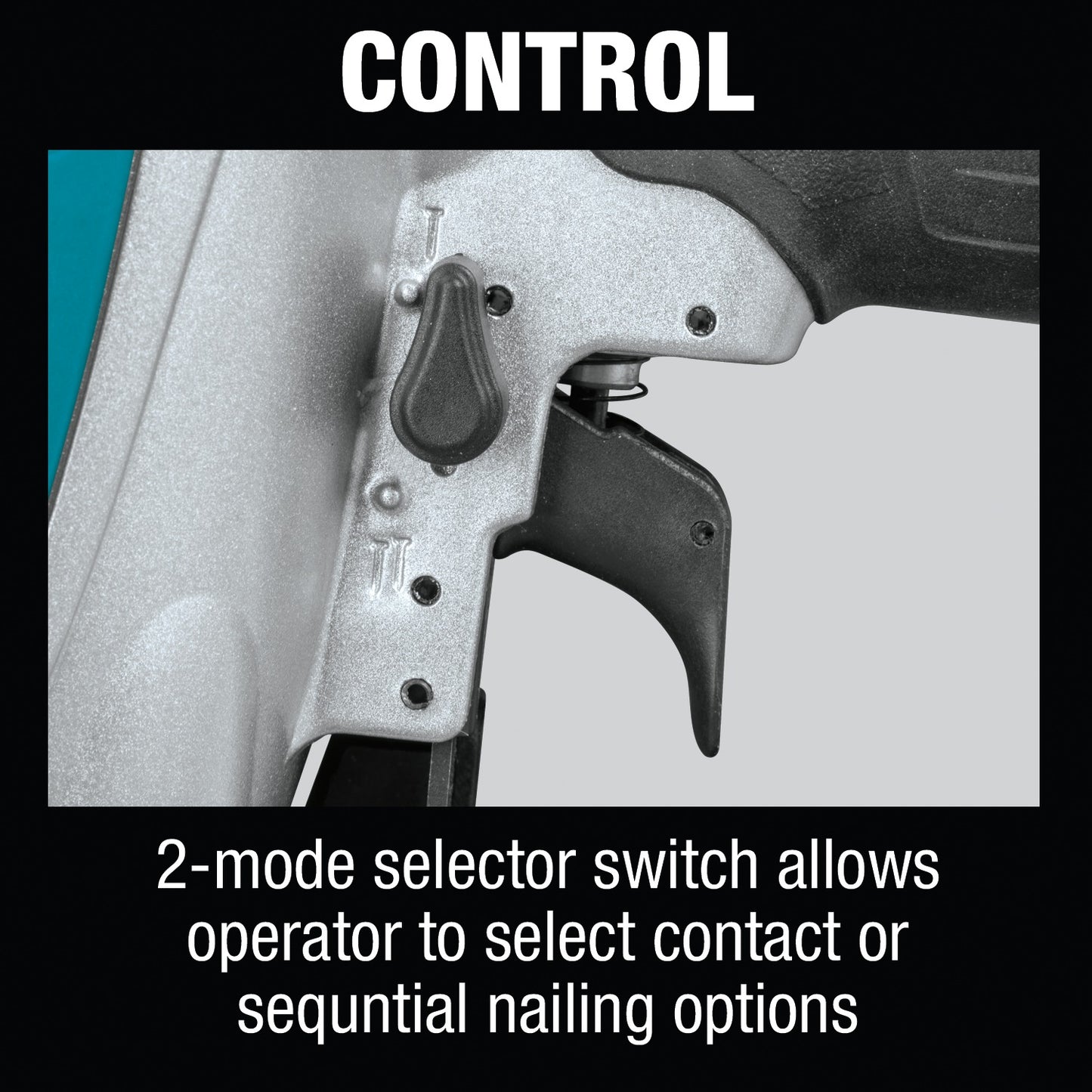

  • CONTROL : 2-mode selector switch allows operator to select contact or sequential nailing options

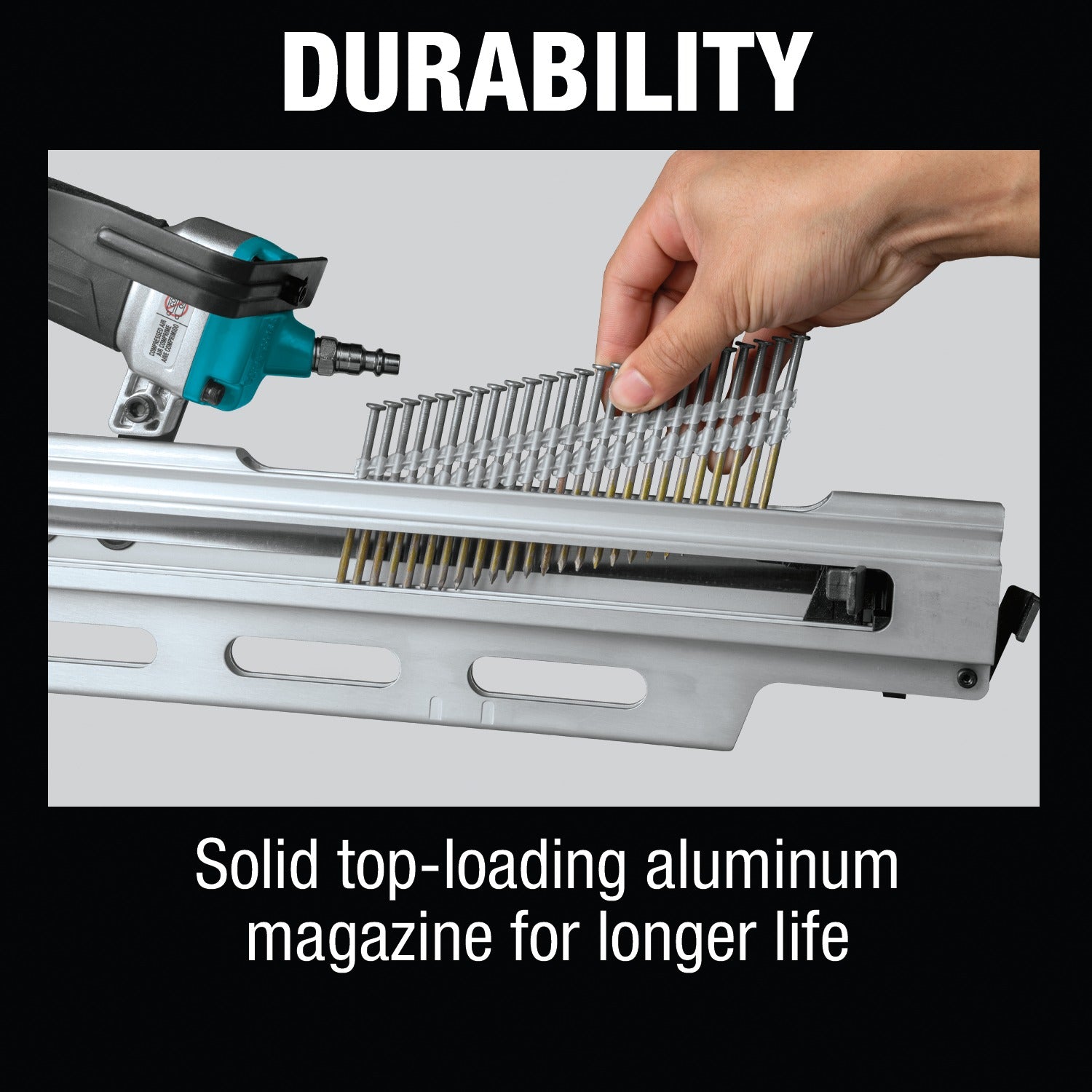

  • DURABILITY : Solid top-loading aluminum magazine for longer life

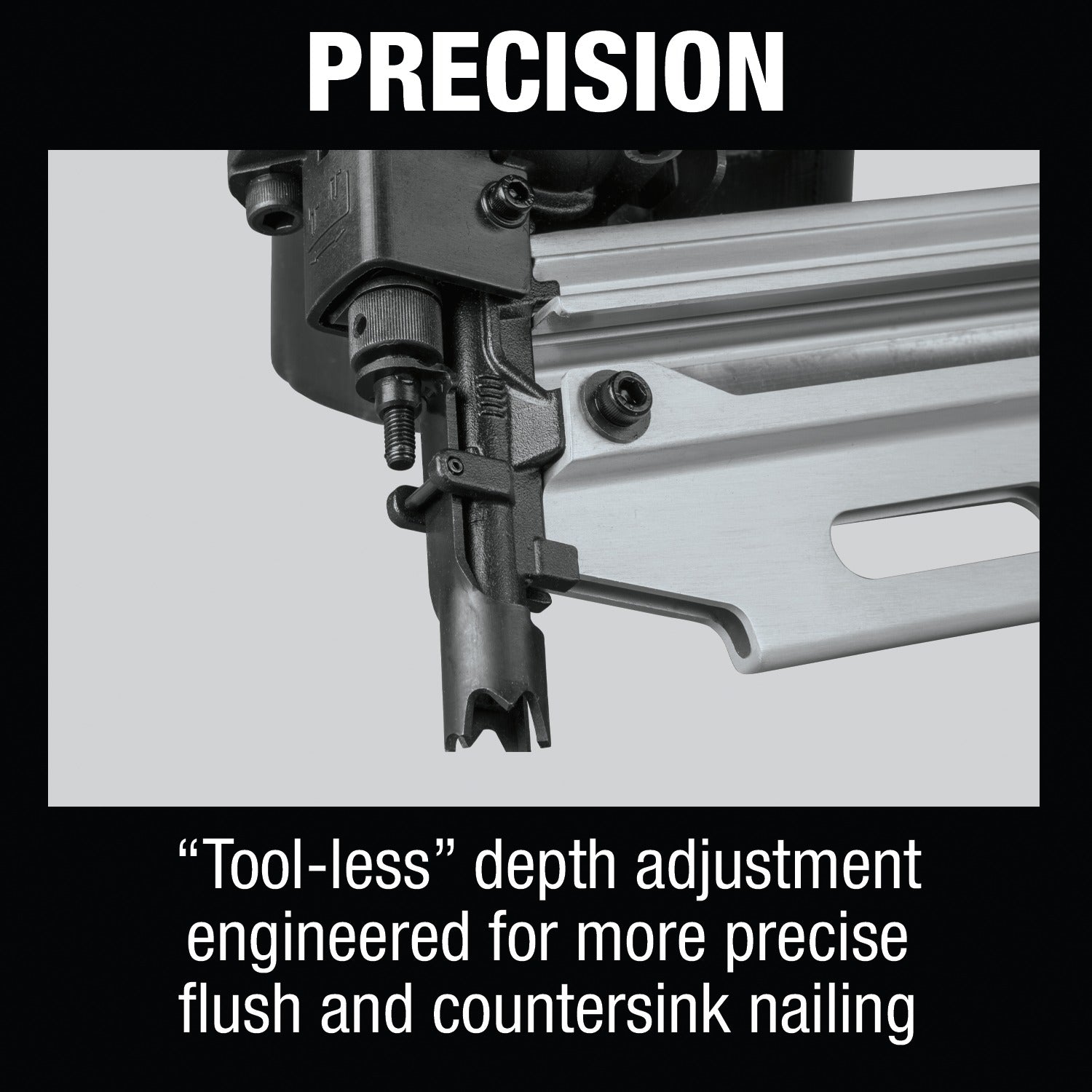

  • PRECISION : "Tool-less" depth adjustment engineered for more precise flush and countersink nailing

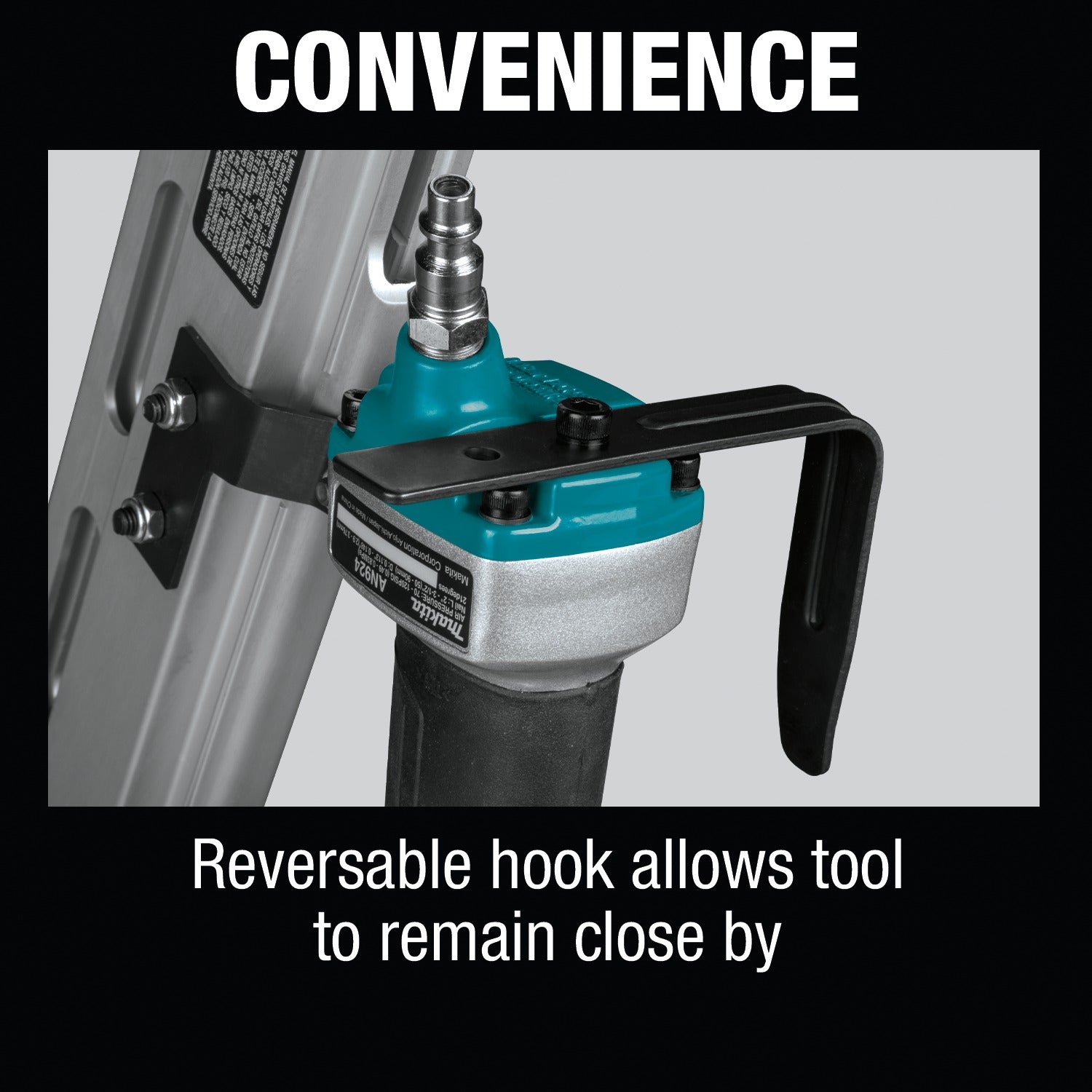

  • CONVENIENCE : Reversible hook allows tool to remain close by

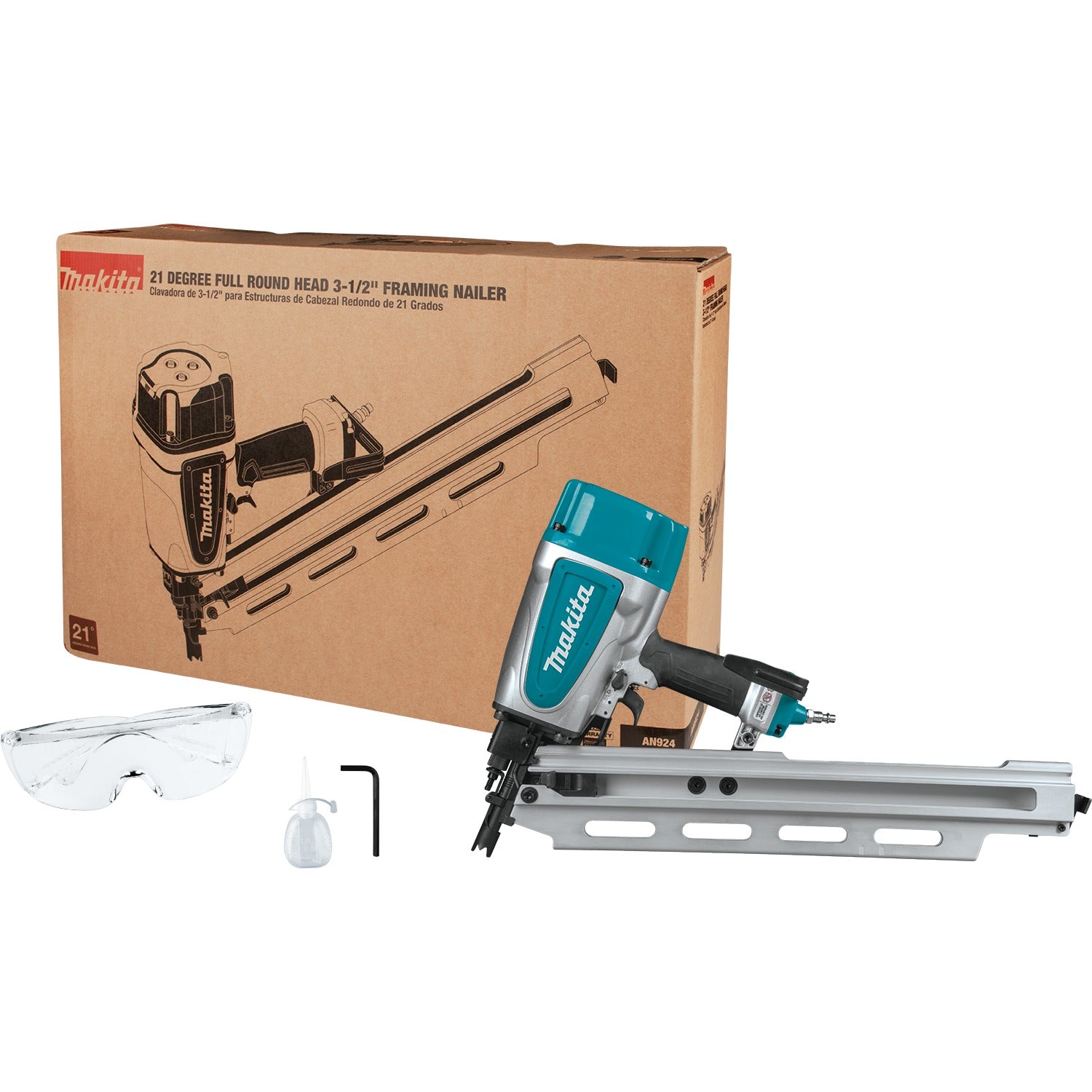

  • INCLUDES : Pneumatic nailer oil, safety glasses, air fitting, and hook

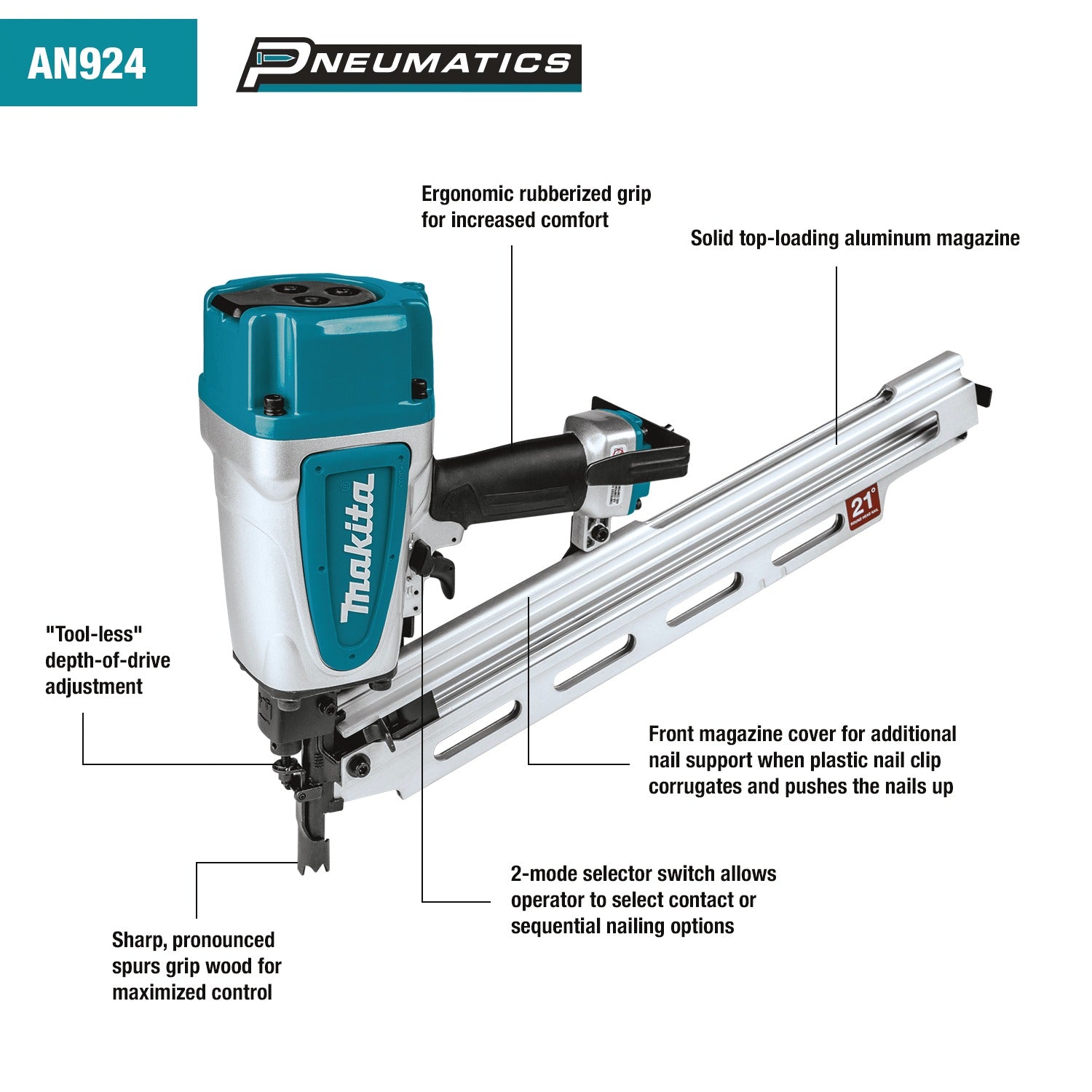

Features
  • Faster nail driving speed for maximum performance
  • Large capacity air chamber for increased power to drive nails up to 3-1/2" x .148 in diameter
  • Drives 21º plastic collated framing nails from 2" to 3 1/2" in length and .113 to .148 in diameter
  • Lightweight design at only 8.3 lbs.

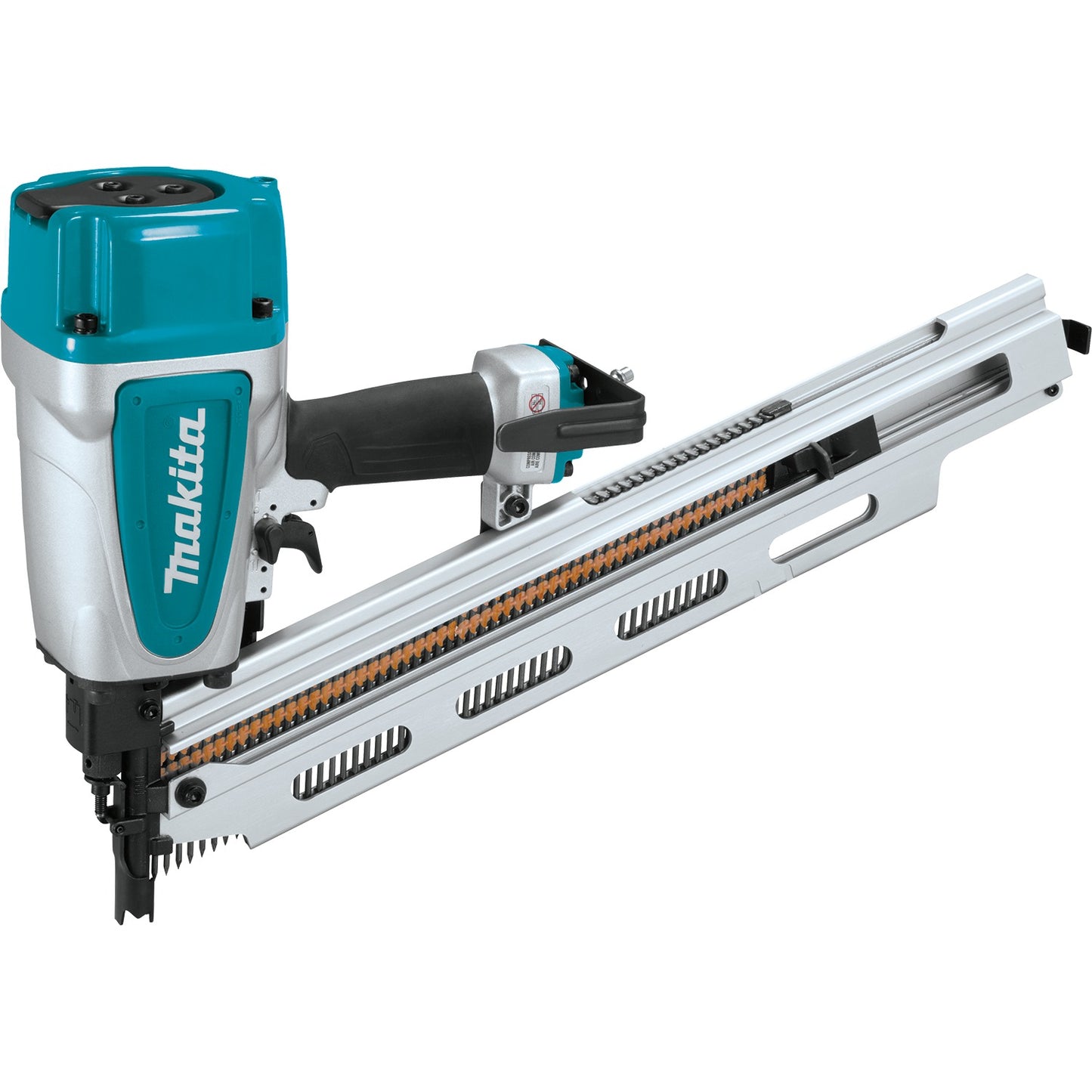

  • Solid top-loading aluminum magazine for longer life

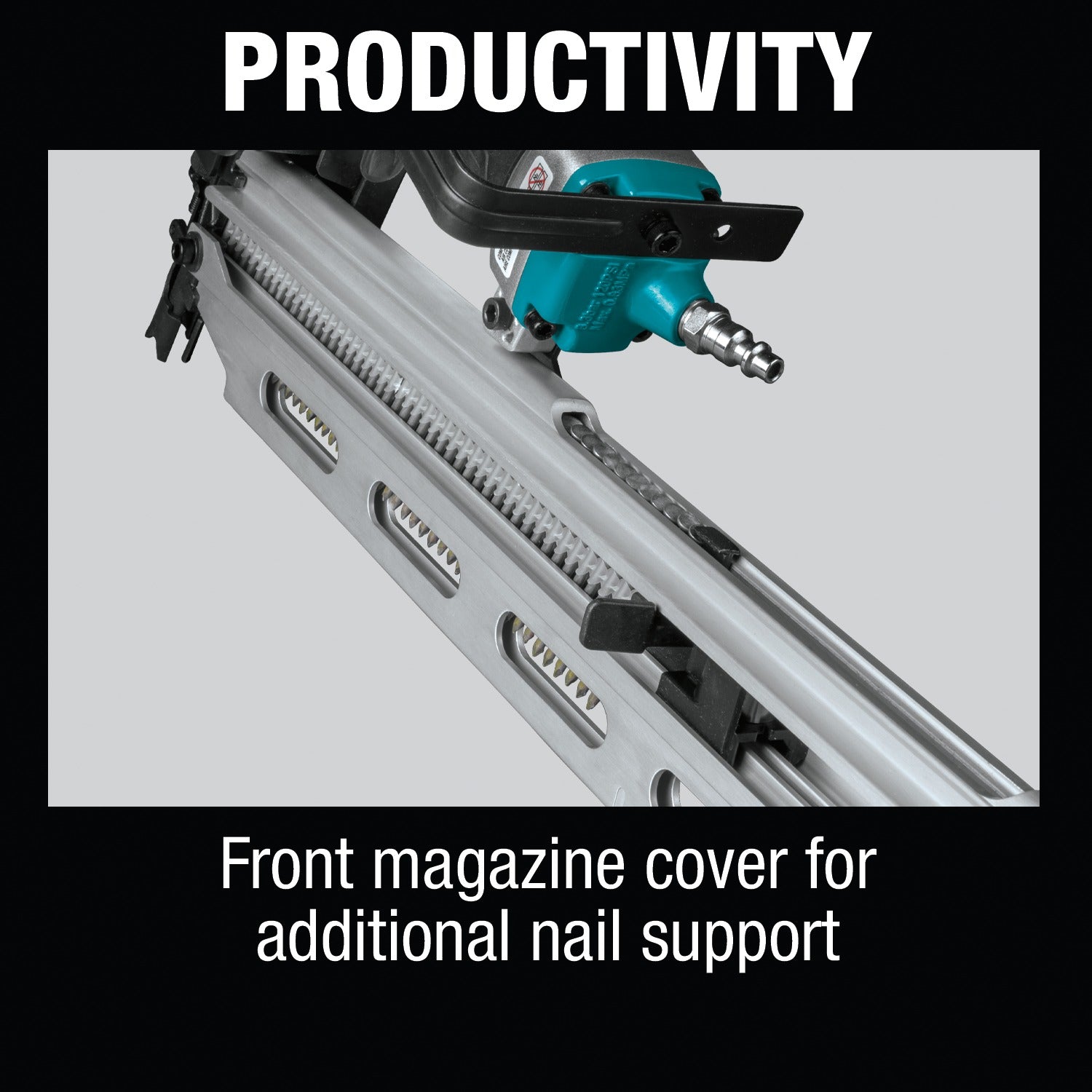

  • Front magazine cover for additional nail support
  • Heat treated S7 steel driver blade for durability
  • "Tool-less" depth adjustment engineered for more precise flush and countersink nailing
  • Reversible hook allows tool to remain close by
  • Ergonomic rubberized grip for increased comfort on the job
  • Sharp, pronounced spurs grip wood for controlled nailing at an angle
  • Rubber bumpers protect the tool and surface from damage
  • 2-mode selector switch allows operator to select contact or sequential nailing options
  • Nail lock-out mechanism protects tool and work surface from dry-fires
  • Minimum recommended air delivery of 4.3 SCFM @ 90PSI
  • 3-year limited warranty

Additional Information

ManufacturerMakita
Net Weight8.3 lbs.
Power TypePneumatic
Shipping Weight11.75 lbs.
Dimensions (LxWxH)22" x 4-5/8" x 13-3/4"
Operating Air Pressure (PSI)70 - 120
Nail Size2"-3-1/2" .113"-.148" shank diameter plastic collated
Maximum Magazine Capacity73
Fastening categoryFraming
Industrial Style Fitting Included1/4" NPT x 1/4"
Inlet Size1/4" NPT
Operating Air Pressure (Bar)4.9 - 8.3
Air Fitting IncludedYes
Air Consumption (SCFM)4.3
Tool Hook IncludedYes

Makita

Makita AN924 21º Full Round Head 3 1/2" Framing Nailer

Makita AN924 21º Full Round Head 3 1/2" Framing Nailer

GTIN : 088381857093

MPN : AN924

SKU : kpt006-AN924

Out of stock

Get it by Sat, Oct 11 - Thu, Oct 16

Regular price $340.00
Regular price Sale price $340.00
Sale Sold out
Shipping calculated at checkout.
