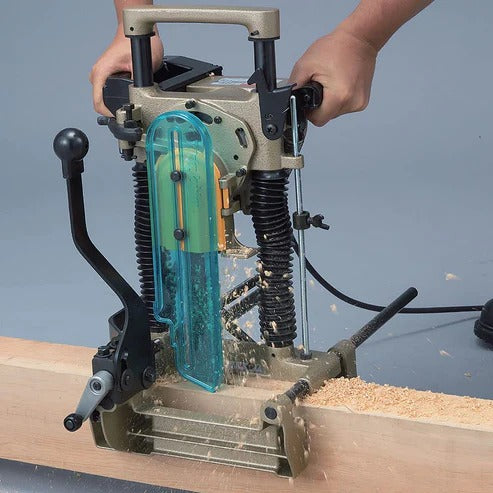

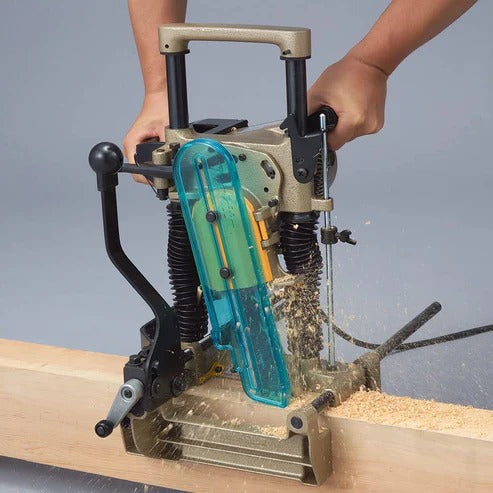

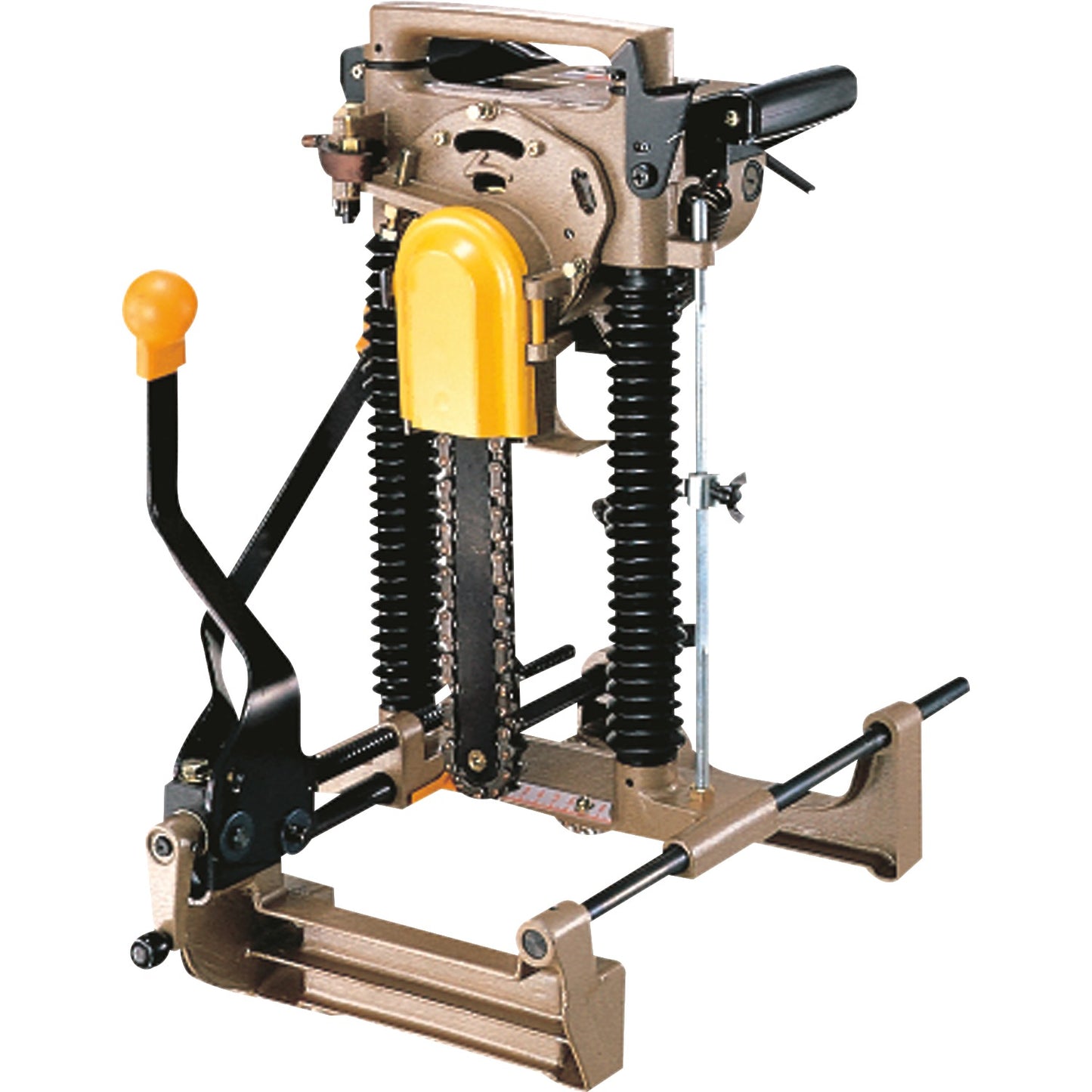

The Makita 7104L Chain Mortiser is engineered with power and accuracy features and is ideal for timber framing and log home building. The 10.5 AMP motor delivers 3,200 RPM to quickly notch or cut holes in thick wood stock, and will cut lap joints up to 5-1/8" in. The razor sharp chain is engineered for clean and accurate cutting, with a large adjustable vise and knob for increased versatility. It weighs only 38.1 lbs. for increased portability.

Key Features
  • SPEED : Maximum cutting speed of 1,000 ft./min. and razor sharp chain for clean, accurate cutting
  • CAPACITY : Adjustable vise attaches firmly to logs up to 12-1/8" thick; cuts lap joints up to 5-1/8"
  • CONVENIENCE : Only 38.1 lbs.; carrying handle
  • PRECISION : Ideal for timber framing or log home building
  • INCLUDES : Cutter chain, sharpening holder, wrench and oil

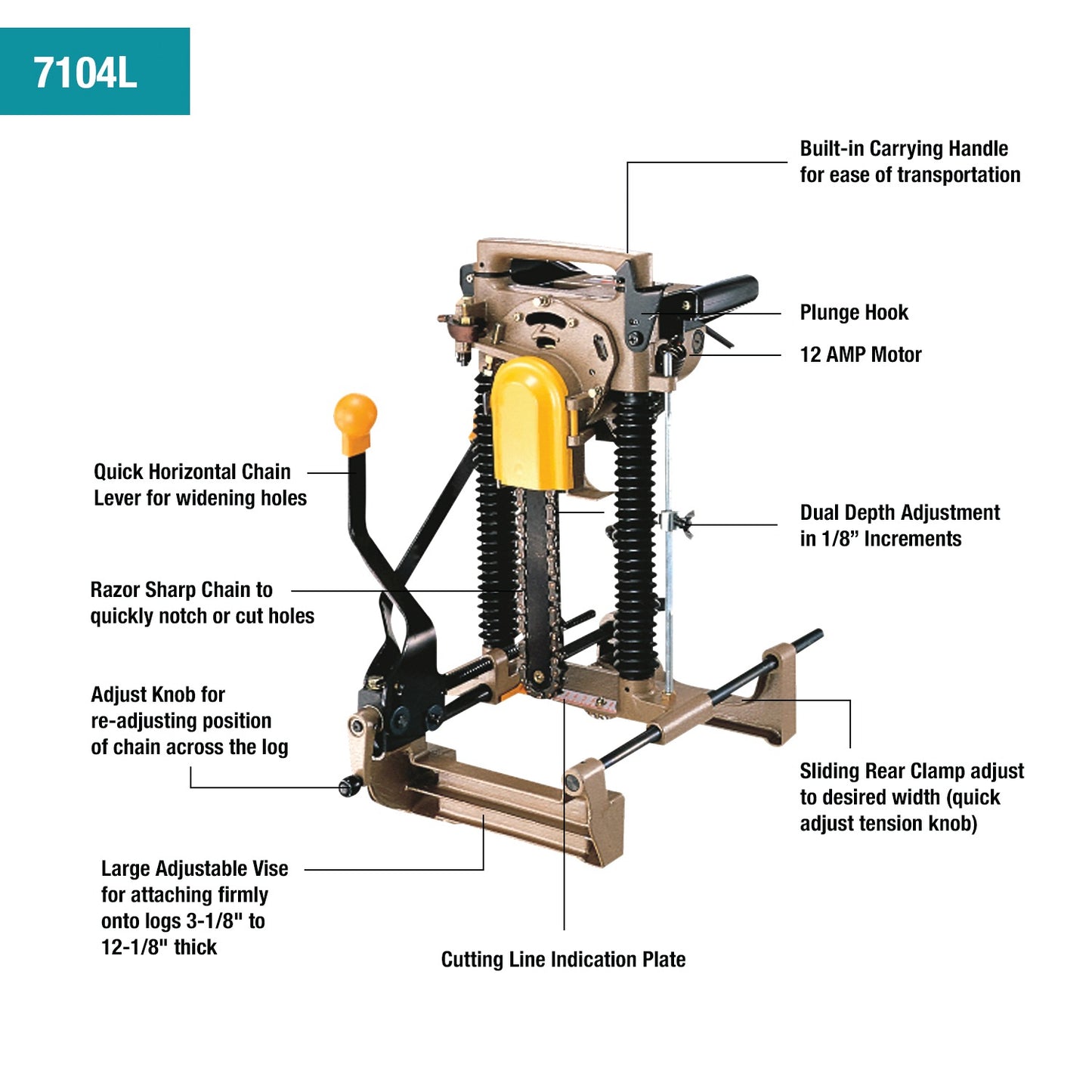

Features
  • Razor sharp chain for clean, accurate cutting
  • Extremely portable at only 38.1 lbs.
  • Powerful 10.5 AMP motor (3,200 RPM) to quickly notch or cut holes in thick wood stock
  • Cuts lap joints up to 5-1/8"
  • Large adjustable vise and knob for attaching firmly onto logs 3-1/8" to 12-1/8" thick
  • Innovative power tool notches or cuts through-holes in thick wood stock quickly, neatly and accurately
  • Sliding rear clamp adjustable to desired width with a quick adjust tension knob
  • Clamp tension lever for a firm hold on log
  • Plunge depth adjustment in 1/8" increments
  • Cutting line indication plate
  • Adjust knob for re-adjusting position of chain across the log
  • Quick horizontal chain lever for widening holes
  • Chain tension adjustment cover with snap action
  • Durable plastic boot protects twin steel rails
  • Externally accessible carbon brushes for greater serviceability
  • Built-in carrying handle for ease of transportation
  • Ideal for timber framing or log home building

Additional Information

Max. Hole Width (longitudinal) : 5-1/8"
Max. Hole Width (transverse) : 1-1/4"
Max. Hole Depth : 6-1/8"
No Load Speed : 3,200 RPM
Chain Speed : 1,000 FPM
AMPS : 10.5
Overall Length : 20-1/8"
Net Weight : 38.1 lbs.
Max. no load speed : 3,200 RPM

Makita

Makita 7104L Chain Mortiser

Makita 7104L Chain Mortiser

GTIN : 088381006415

MPN : 7104L

SKU : kpt006-7104L
