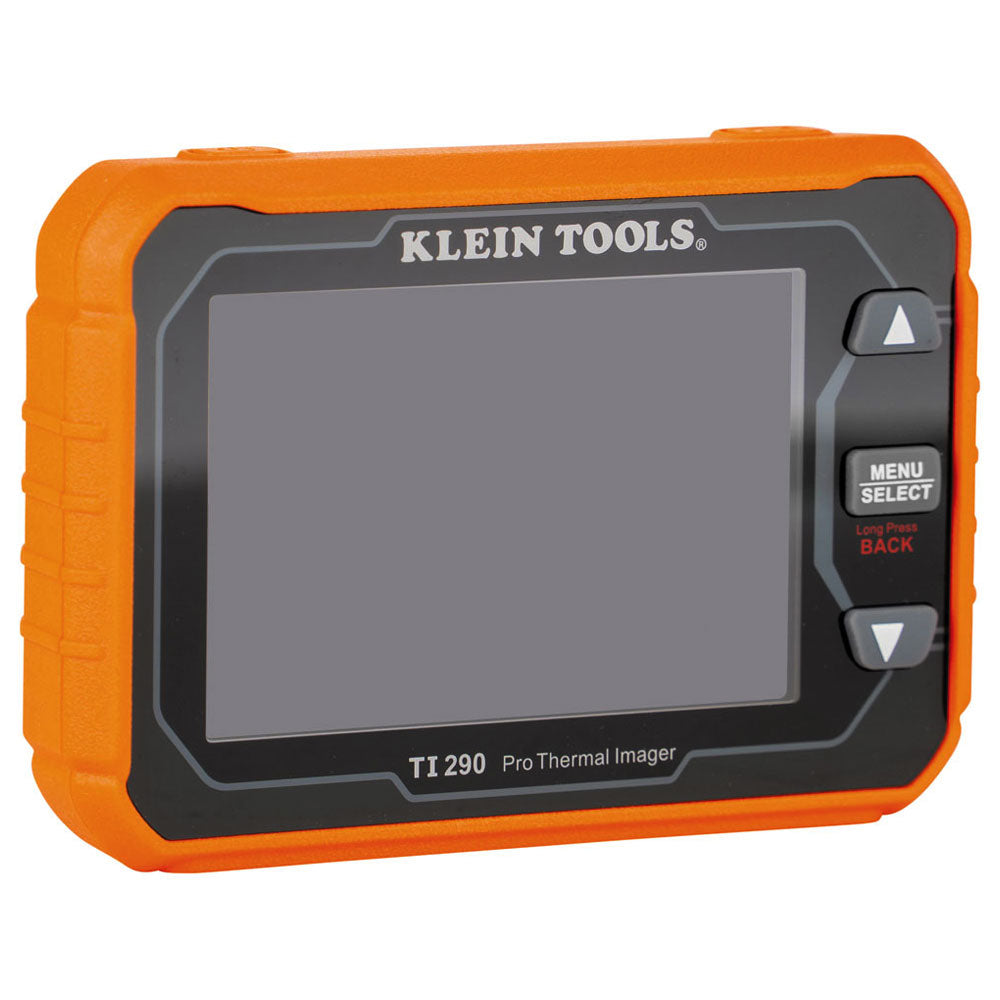

Klein Tools TI290 Rechargeable Pro Thermal Imager With Wi-Fi

1 13

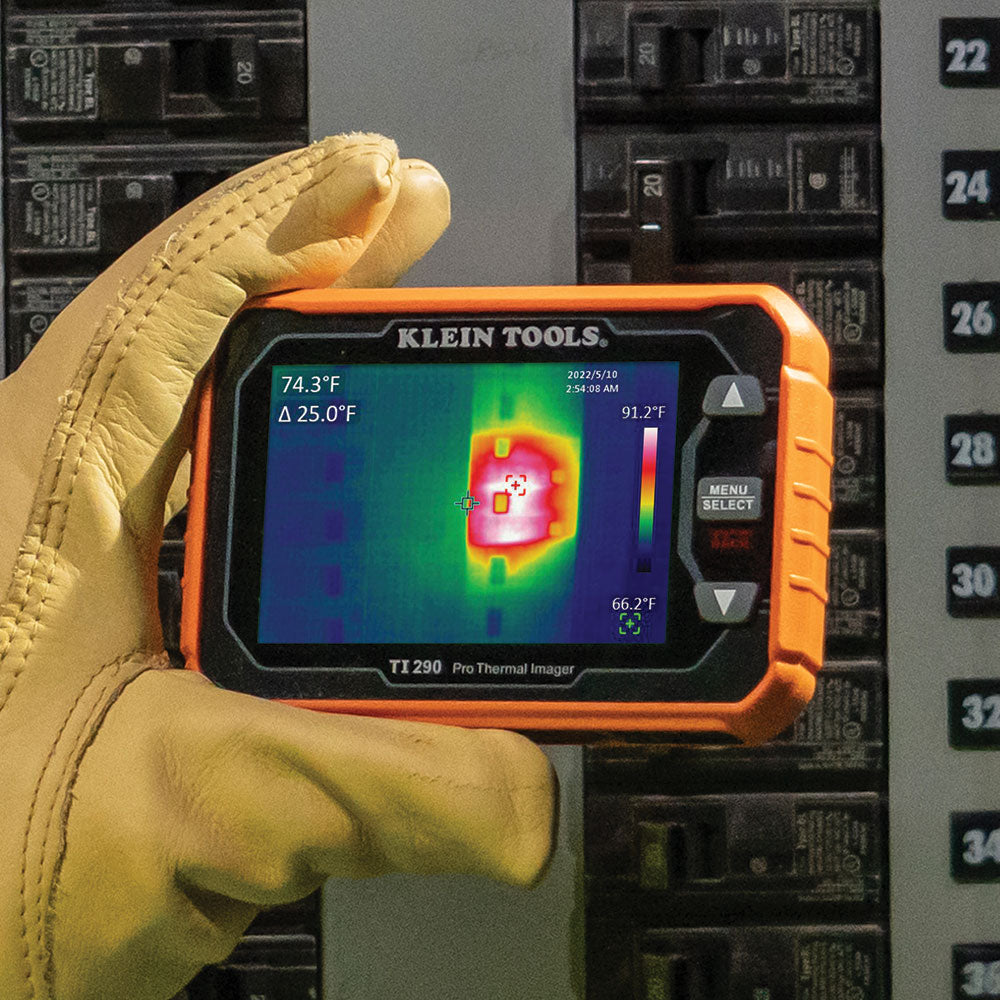

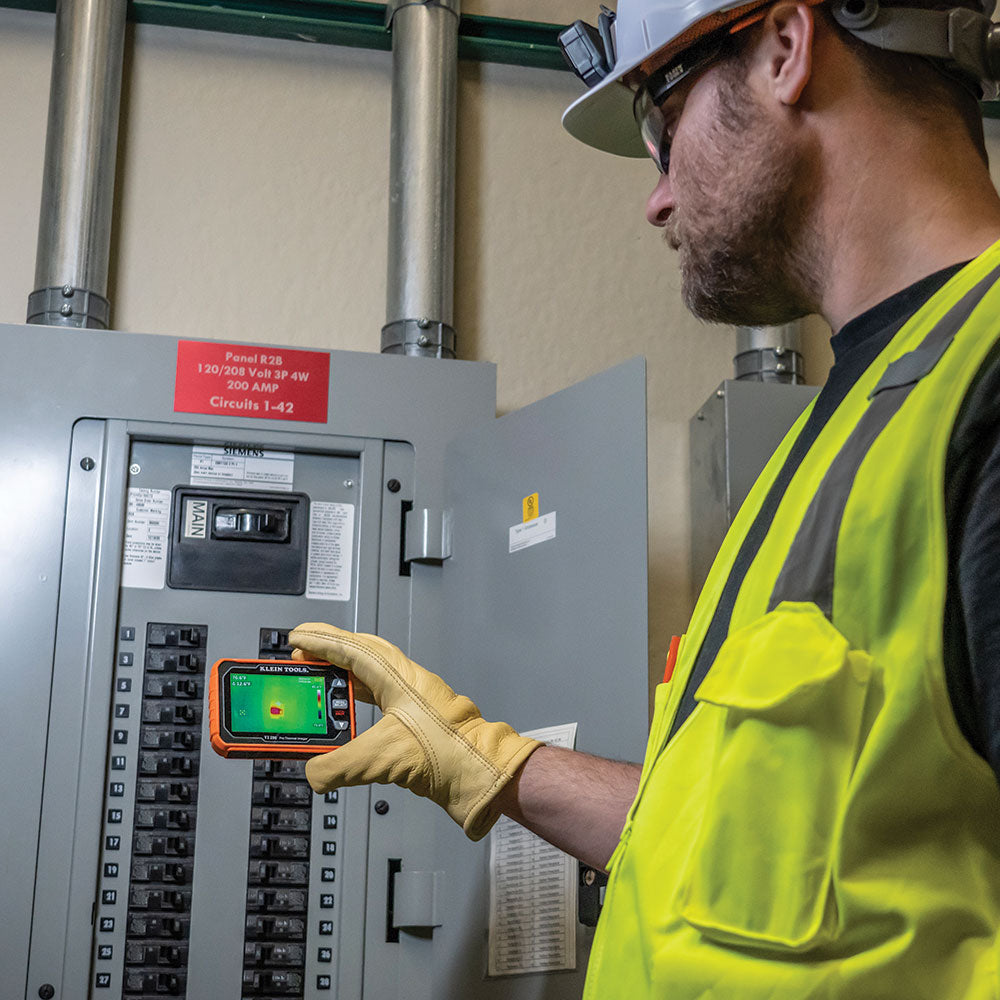

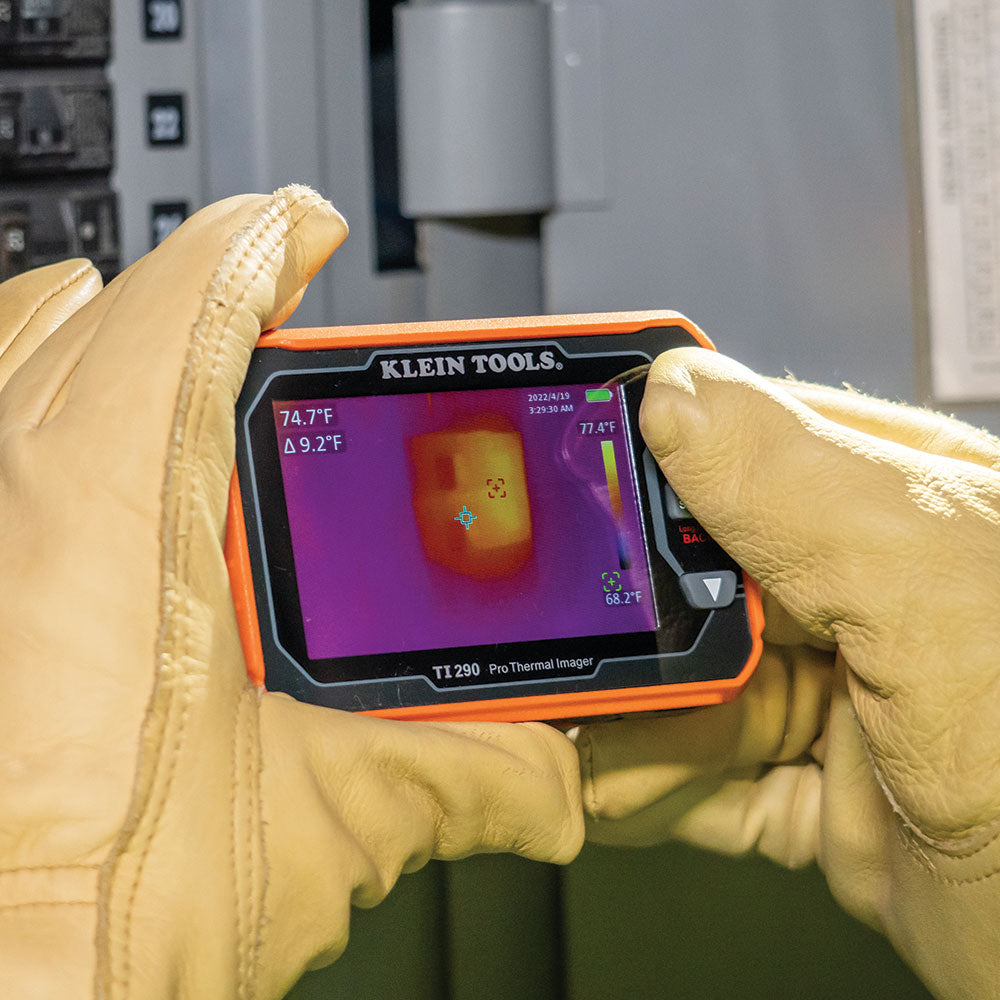

The Klein Tools TI290 is a high resolution, Wi-Fi enabled, professional model USB rechargeable Thermal Imager. The large LCD displays unseen hot and cold spots for instant troubleshooting. Excellent resolution with over 49,000 pixels and your choice of three color palettes. The meter provides high and low temperature points, crosshairs to pinpoint specific temperatures, and options for temperature alarms. App is available for free in Google Play store and in the App Store.

Features

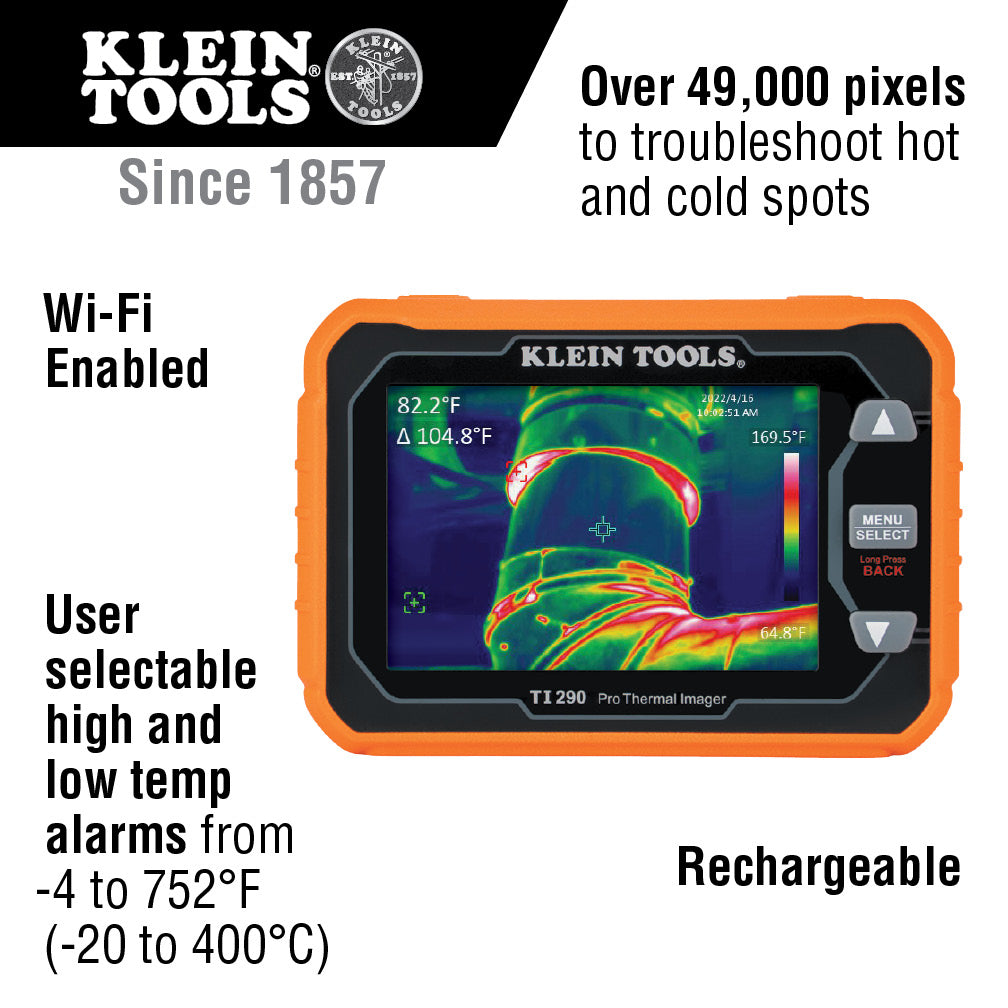

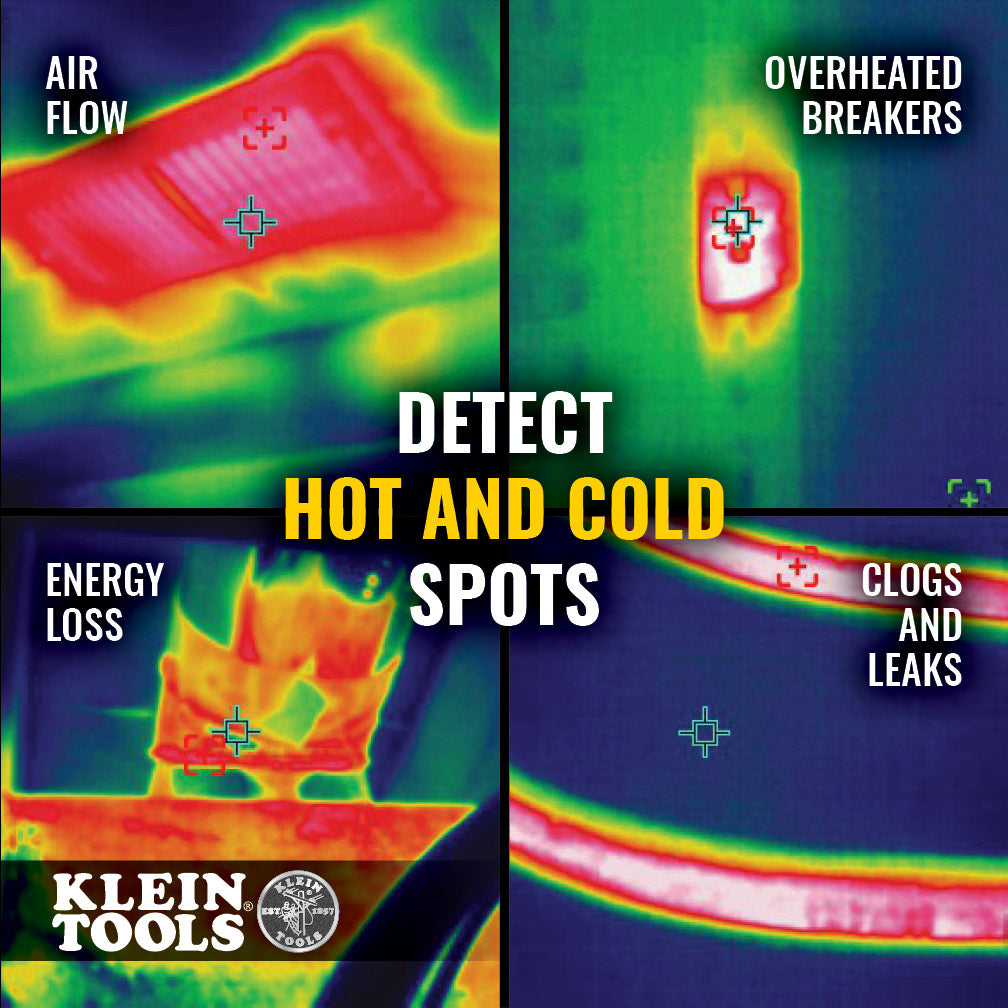

Thermal Imager has over 49,000 pixels to troubleshoot hot and cold spots

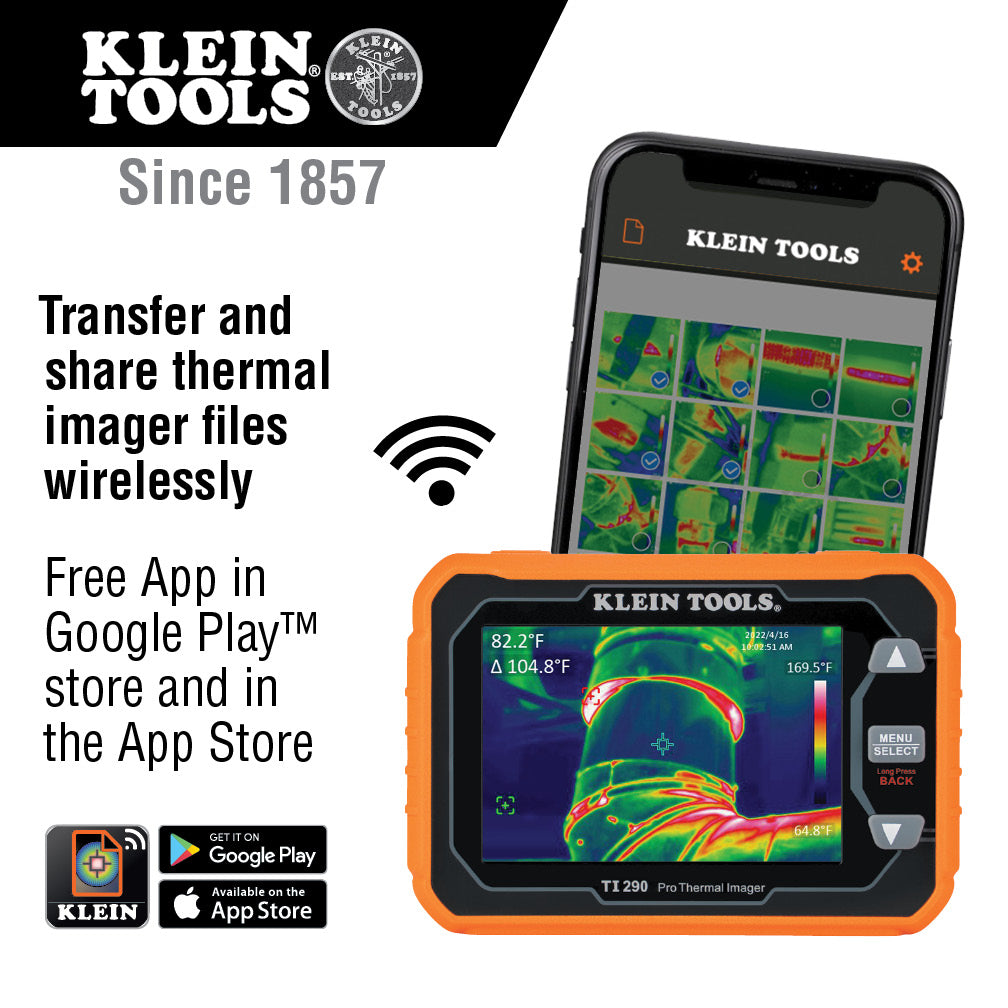

Easily capture, store and share thermal images with Wi-Fi capabilities
User selectable high and low temperature alarms from -4 to 752-Degree Fahrenheit (-20 to 400-Degree Celsius)
Adjustable emissivity from 0.01 to 0.99
Select color palettes to best capture the event; ironbow, rainbow, or grayscale

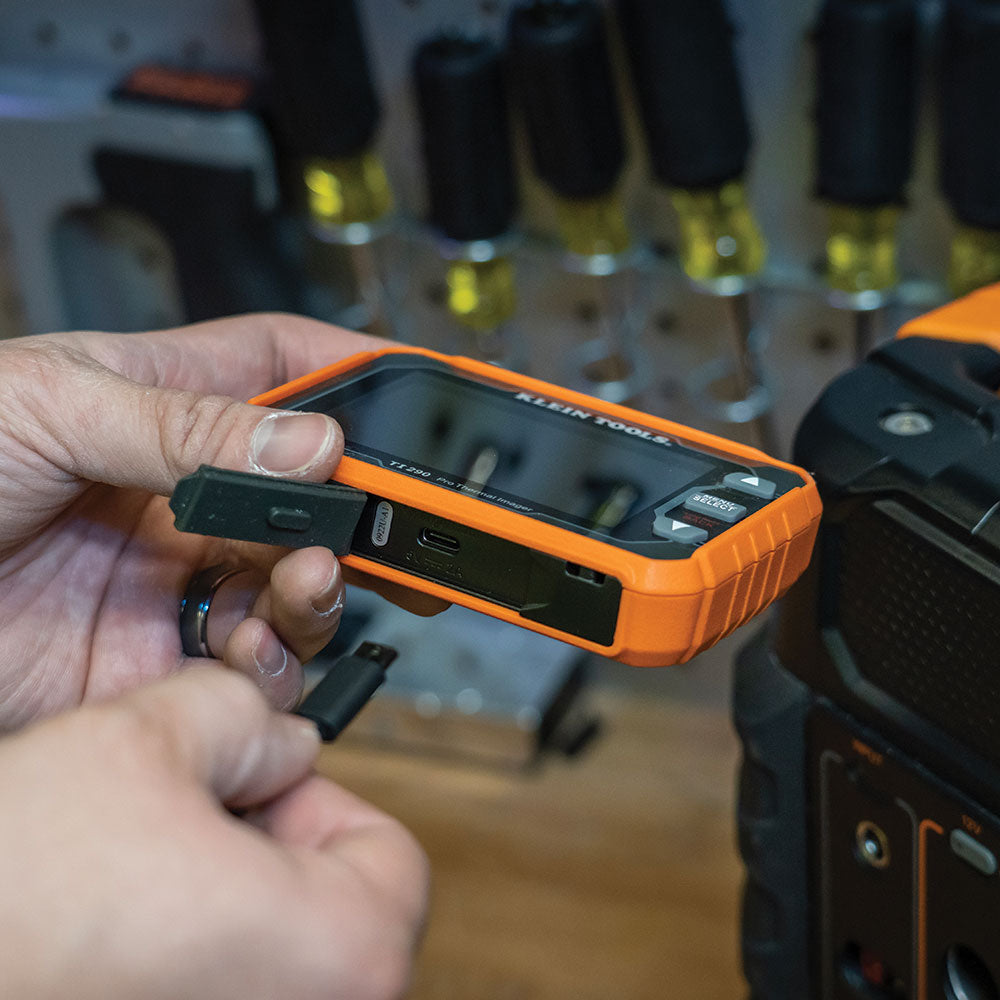

Rechargeable lithium-ion battery
App is available for free in Google Play store and in the App Store

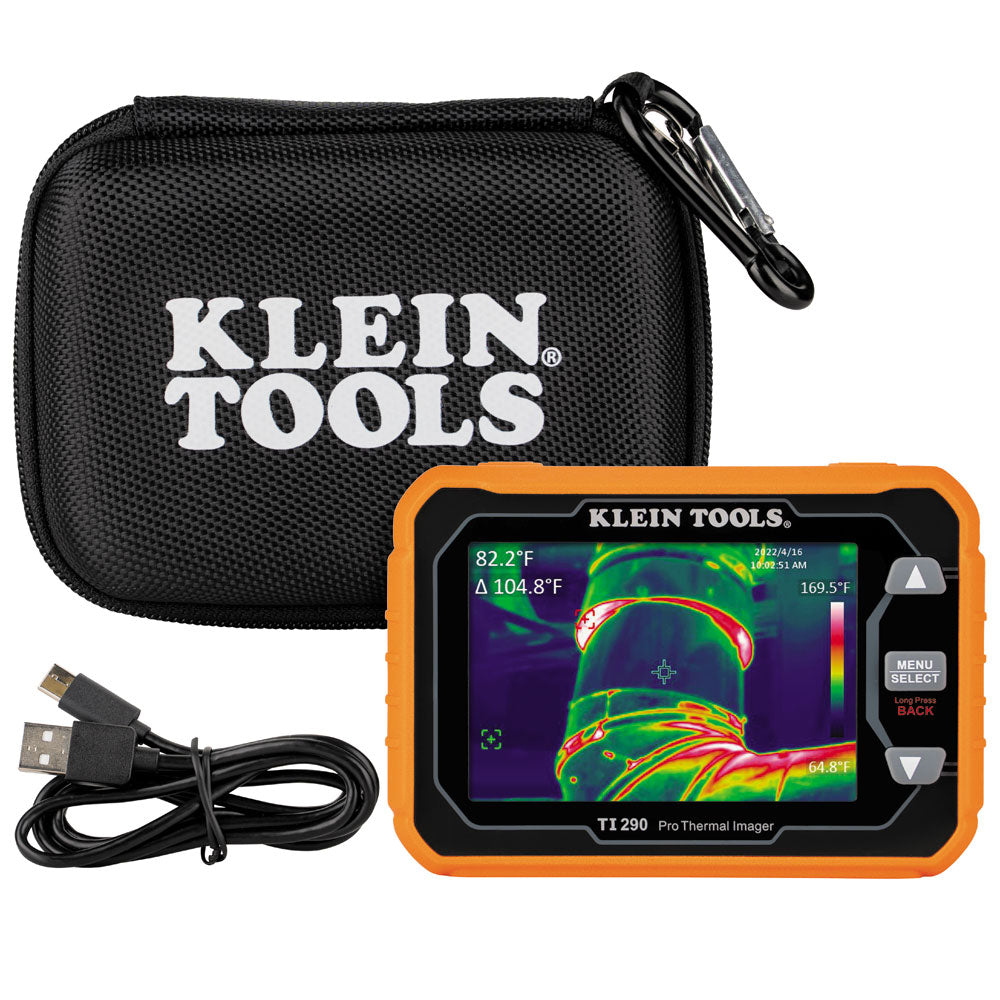

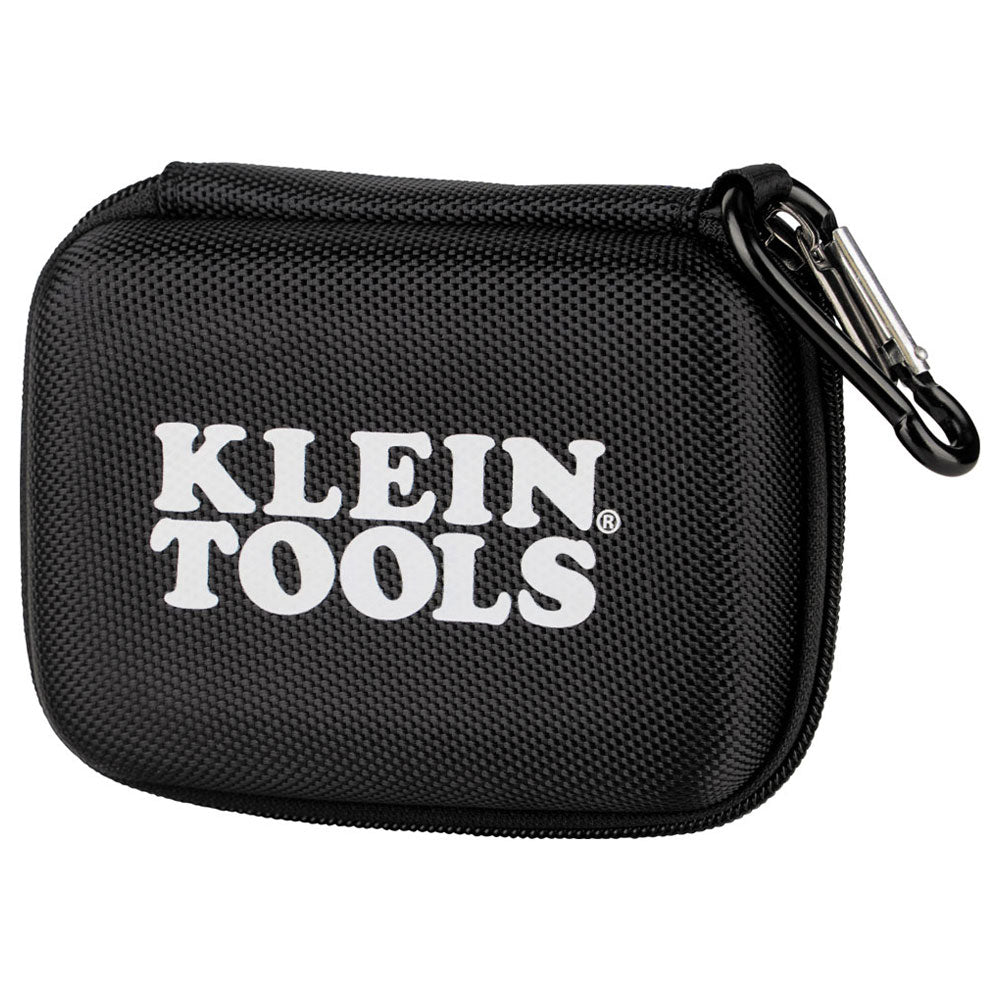

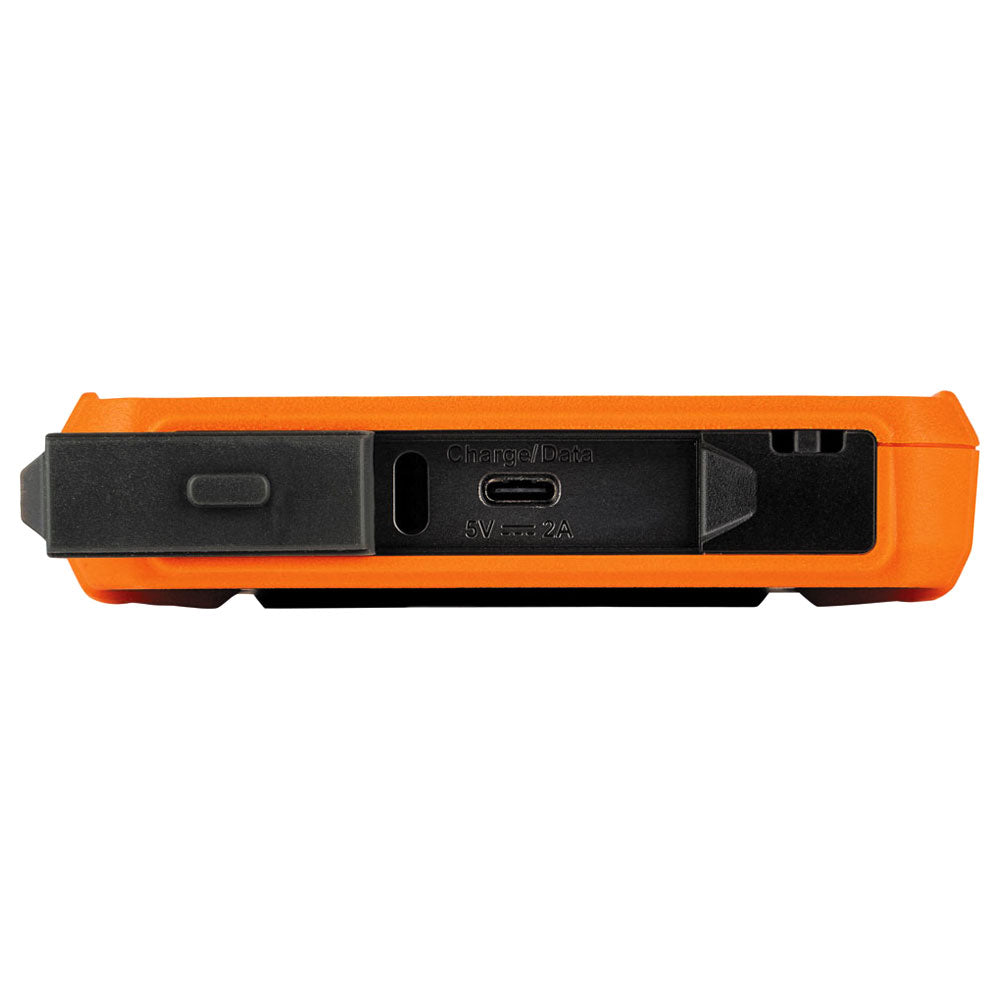

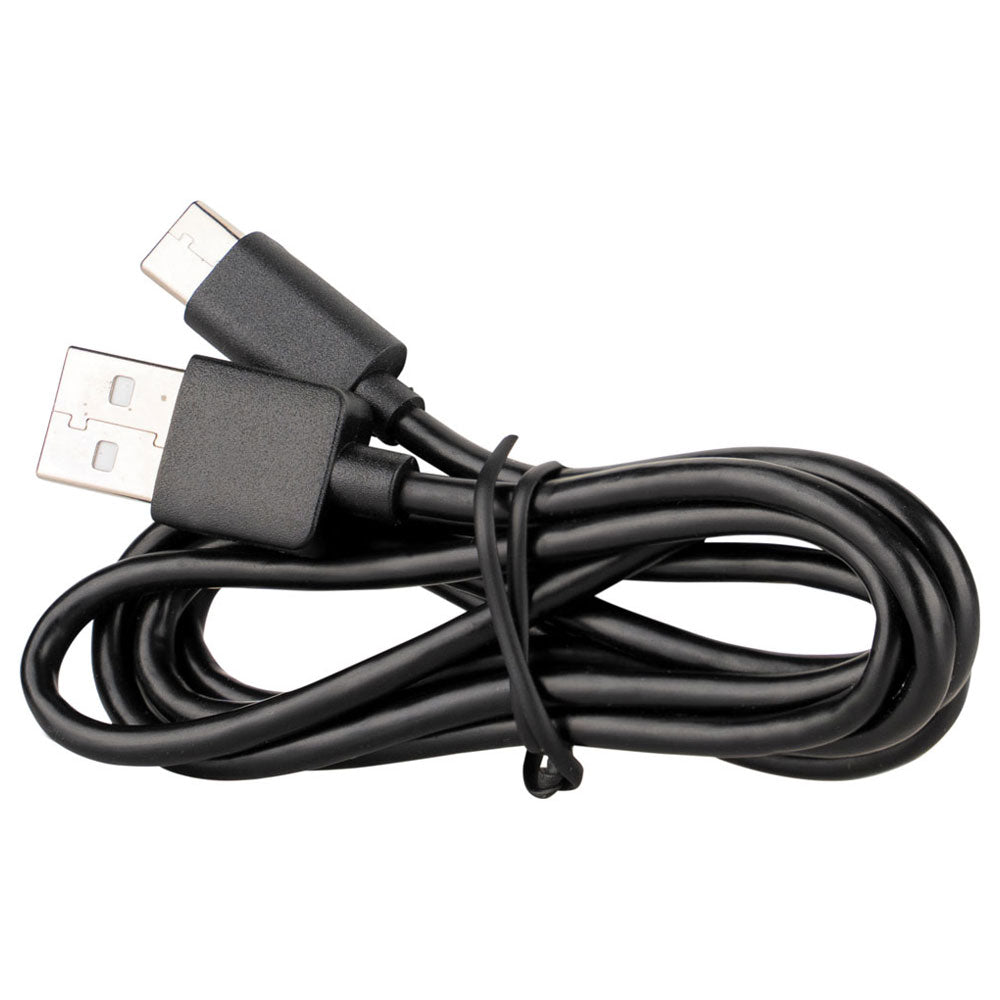

Includes thermal imager, USB-C charging cable, molded soft-storage case with carabiner, and instructions
Durable 6.6-Foot (2 m) drop test protection

Additional Information

Type Thermal Imager

Application View Hot and Cold Spots for Instant Troubleshooting

Special Features Wi-Fi Transfer, High and Low Temperature Points, Crosshairs to Pinpoint Specific Temperatures, Options for Temperature Alarms, 3 Color Palettes

Display 3.5'' (8.9 cm) TFT LCD

Display Resolution 480 x 320 Pixels

Sensor Type VOx Microbolometer

Sensor Resolution 49,152 Pixels

Thermal Sensitivity <50 mK

Spectral Range 8 to 14Î¼m

Temperature Range -4° to 752°F (-20° to 400°C)

Accuracy ±2°C (±3.6°F) or 2%, Whichever is Greater

Field of View 55.6° +/- 2.8°

Laser Sighting No

Emissivity 0.01 to 0.99, Adjustable

Color Palettes Ironbow, Rainbow, Grayscale
