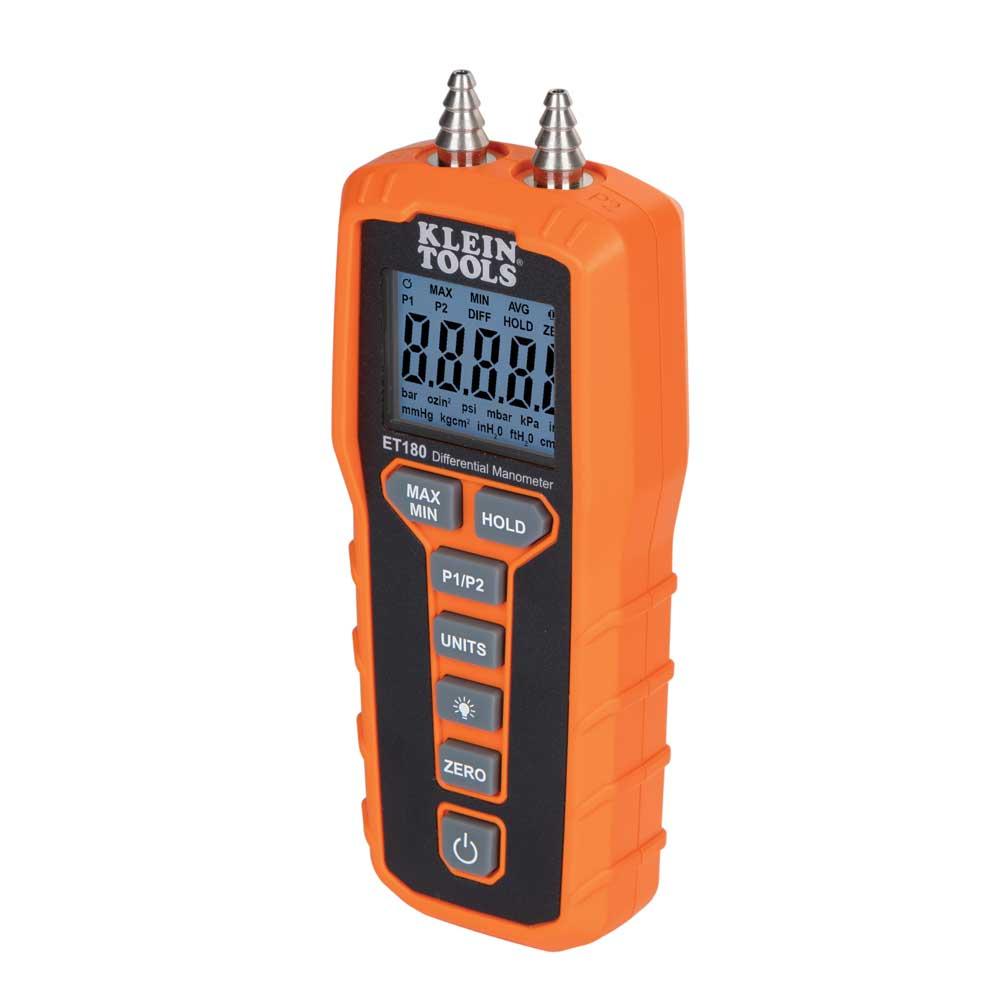

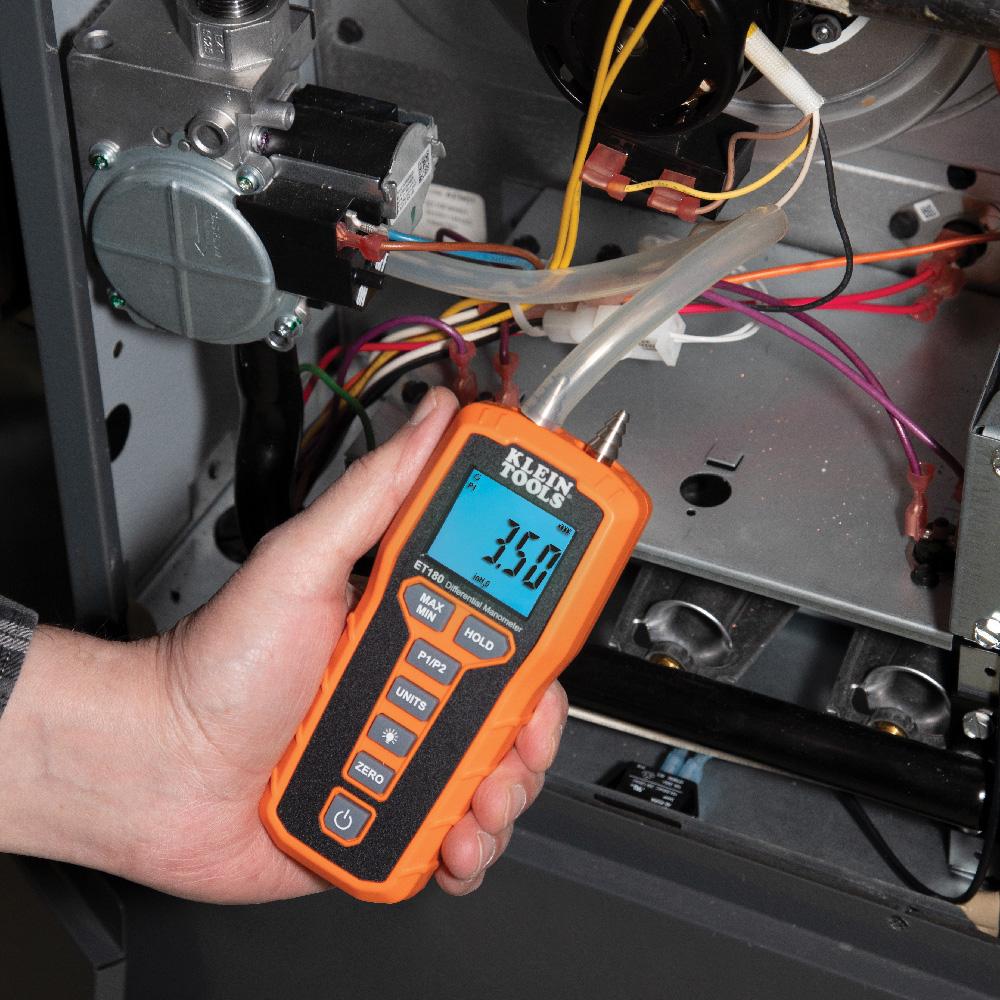

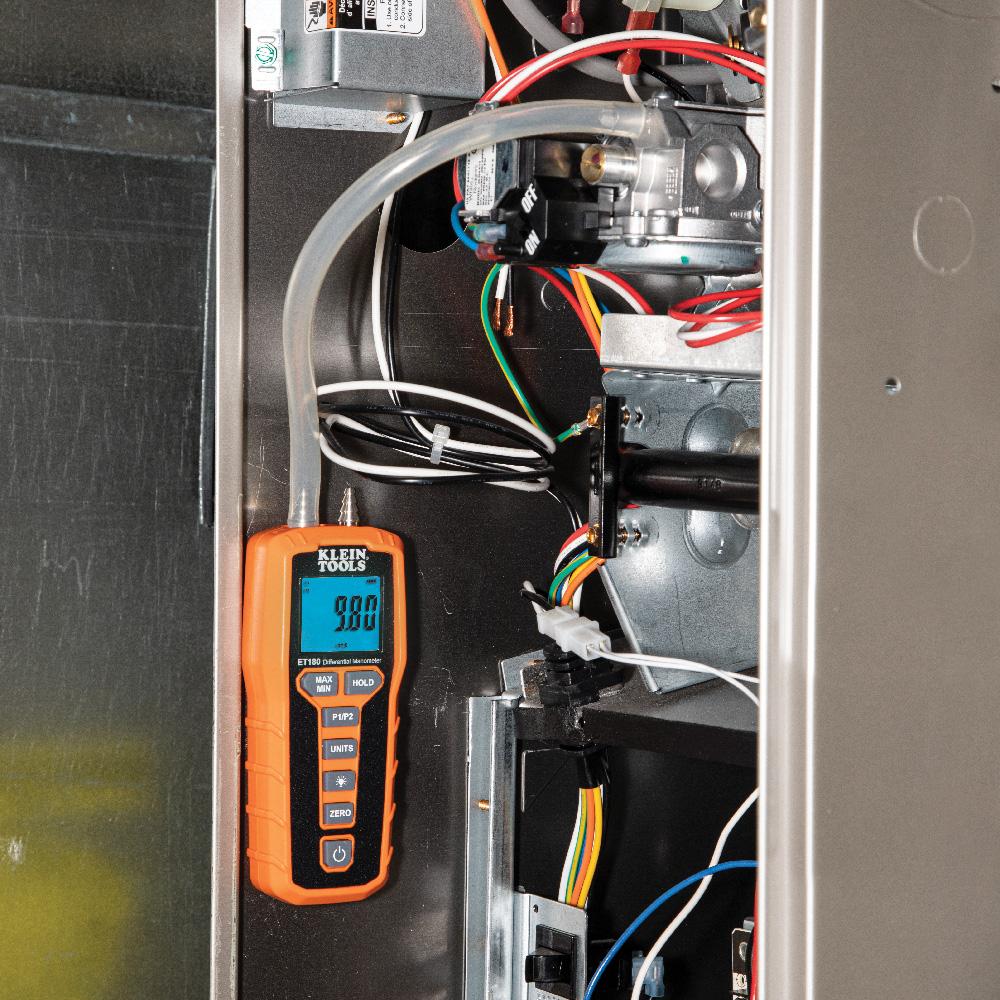

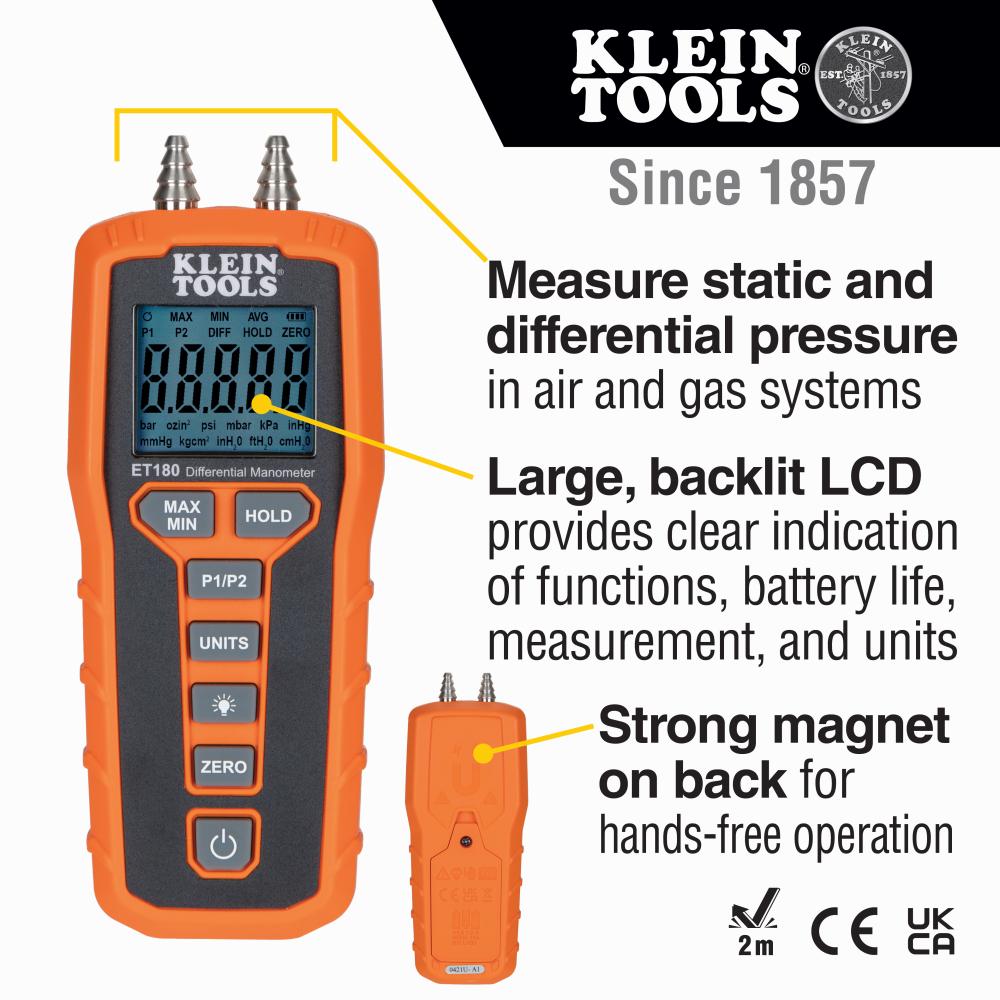

The ET180 Digital Differential Manometer from Klein Tools measures air and gas pressure for port 1, port 2, and measures the differential between the ports. Easily toggle between units: inH2O, bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, ftH20, and cmH2O. Large, backlit LCD shows minimum, maximum and average values. Magnet on back for hands-free operation.

  • Digital Manometer measures air and gas pressure for ports P1, P2, and differential
  • Range of +/- 60 inH2O and full scale accuracy of +/-1.5-Percent

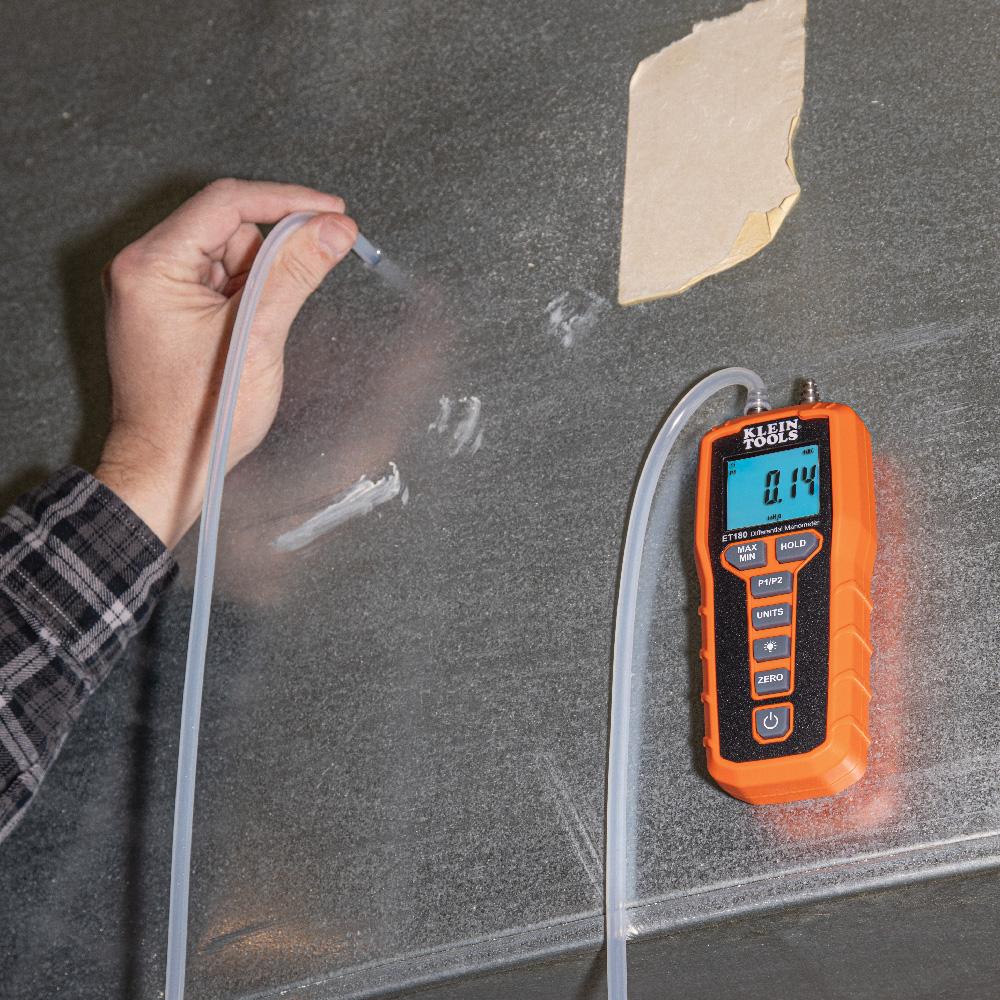

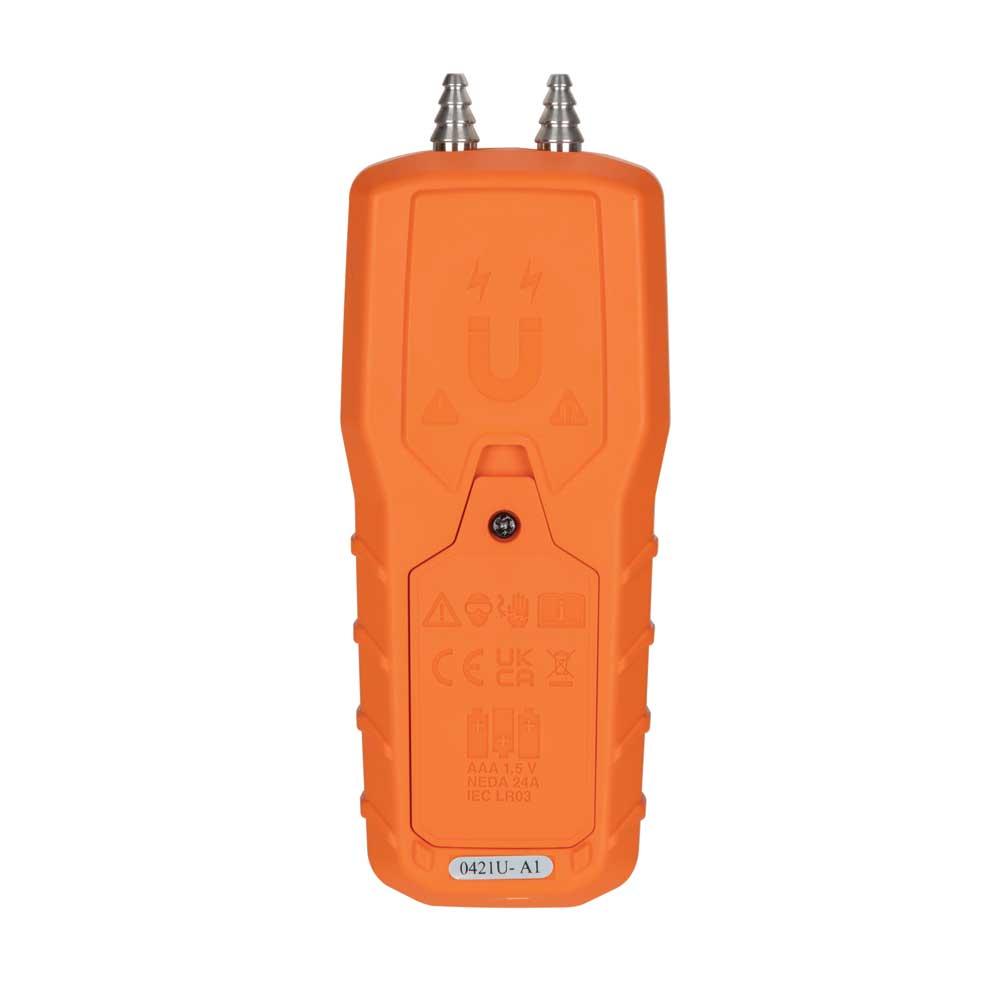

  • Strong magnet on back for hands-free operation
  • Units measured: inH2O, bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, ftH20, and cmH2O
  • Calculates minimum, maximum and average values
  • Large LCD is backlit for easy viewing in low light conditions
  • Auto-power off feature conserves battery life

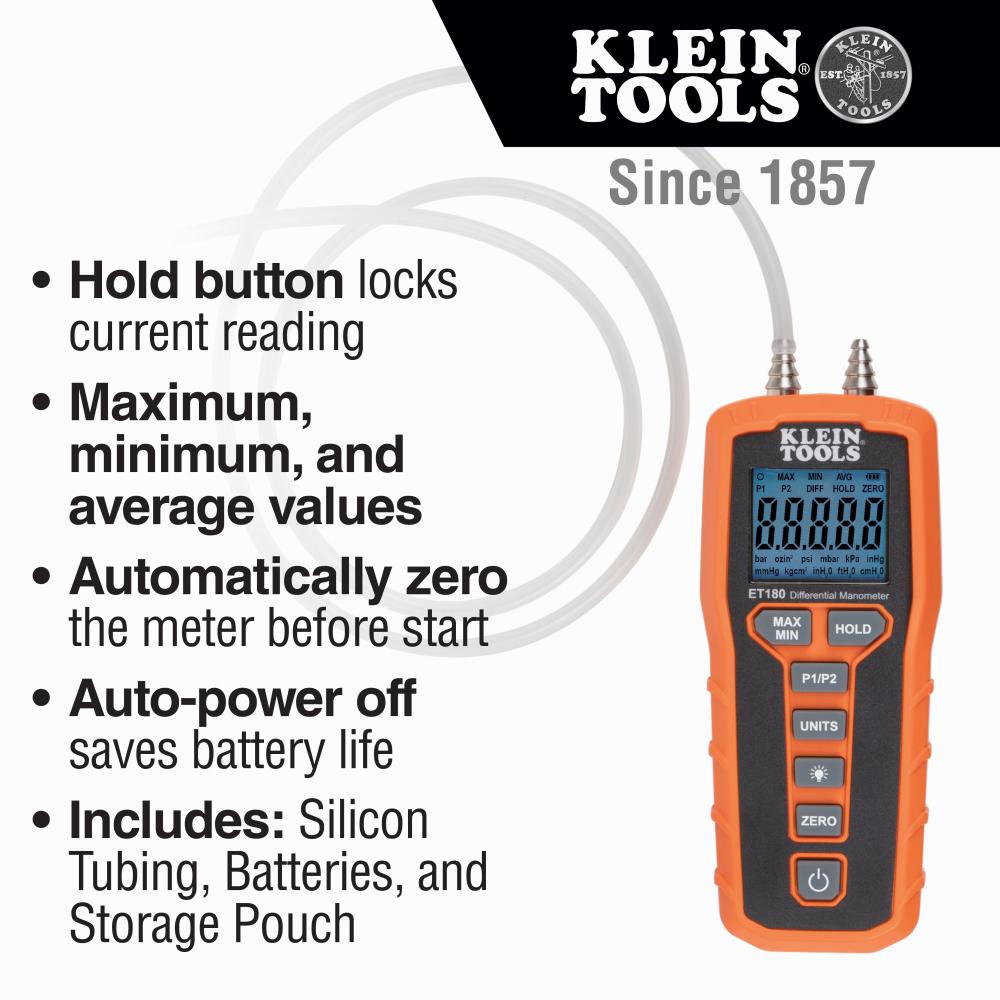

  • Hold button locks current reading on the display
  • Silicon tubing, 3 x AAA batteries, and storage pouch included

Additional Information

Type:Differential Pressure

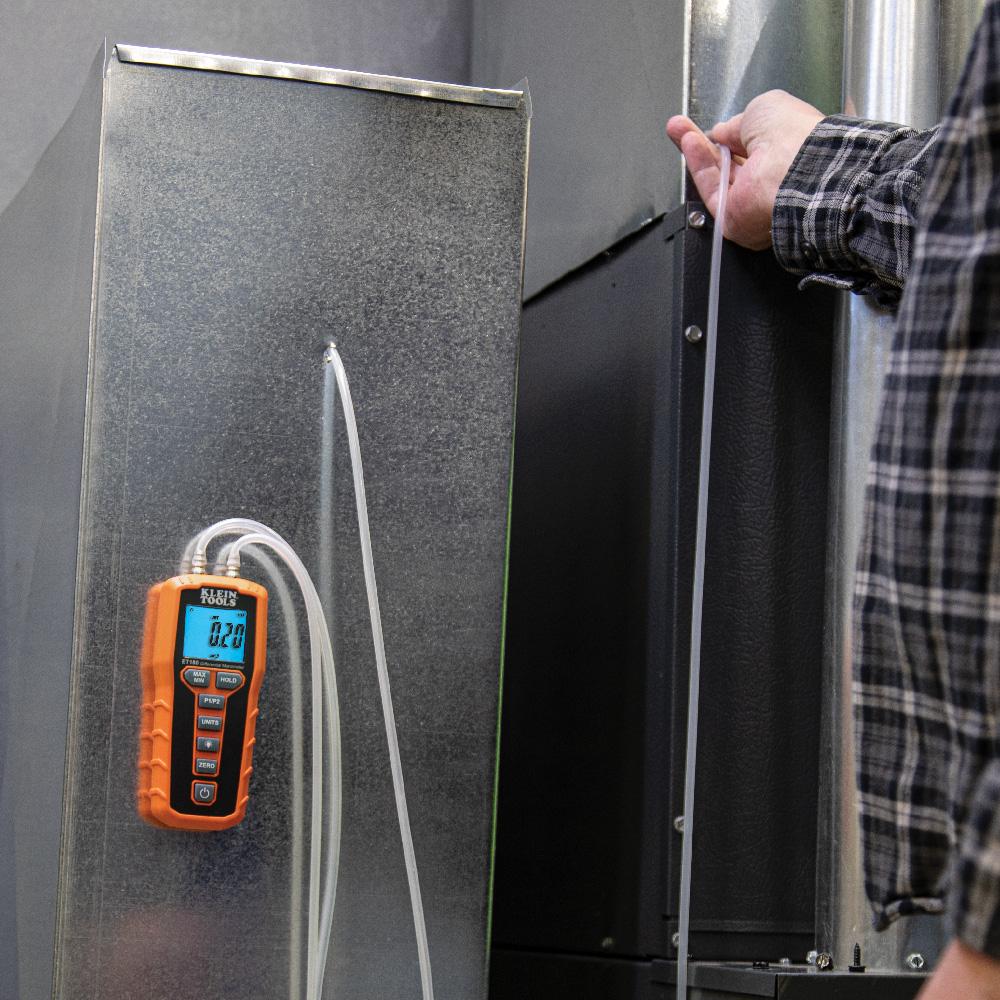

Application:Measure Static and Differential Pressure
Special Features:Magnet on Back of Housing
Modes:P1, P2, Differential
Pressure Measurement Range:+/- 60 inH2O
Maximum Pressure (psi):2.16 PSI
Maximum Pressure Reading (wc):60.0
Minimum Pressure Reading (wc):-60.0
Accuracy:+/-1.5% Full Scale
Measurement Units:bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, inH2O, ftH20, and cmH2O
Number of Ports:2

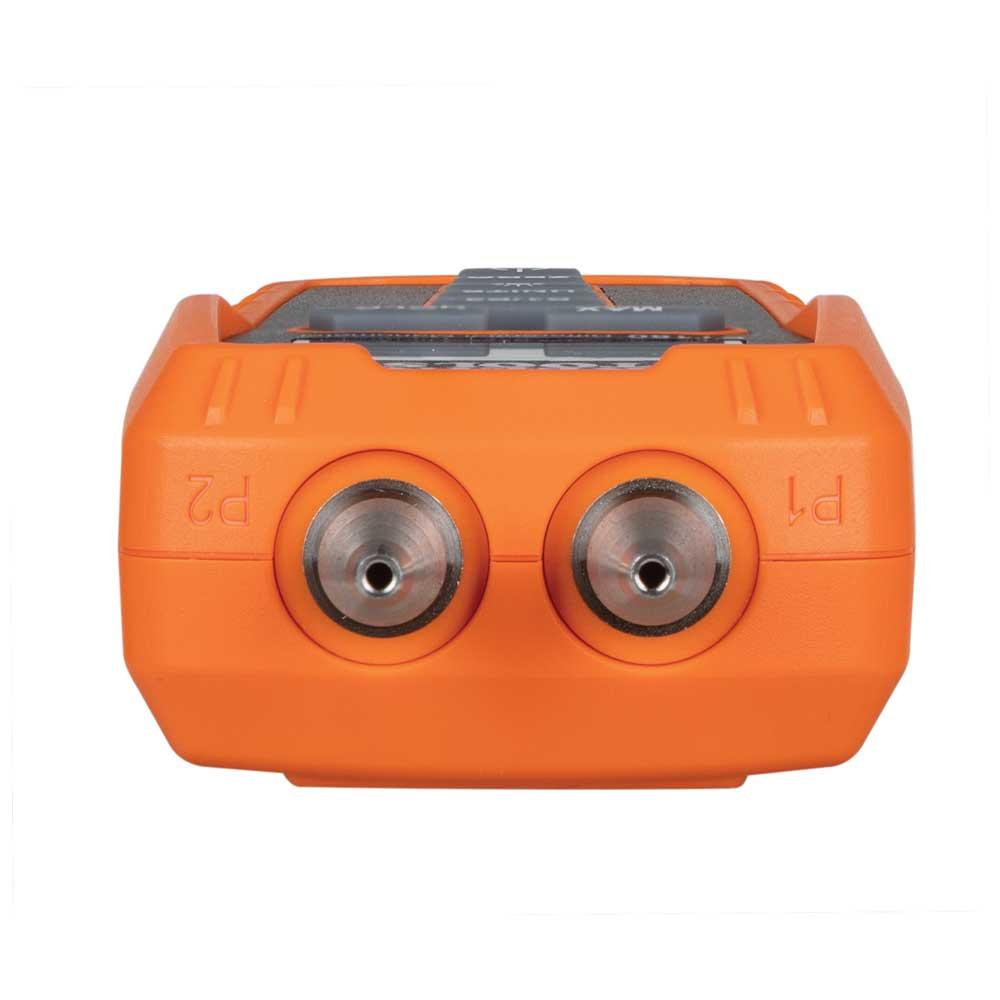

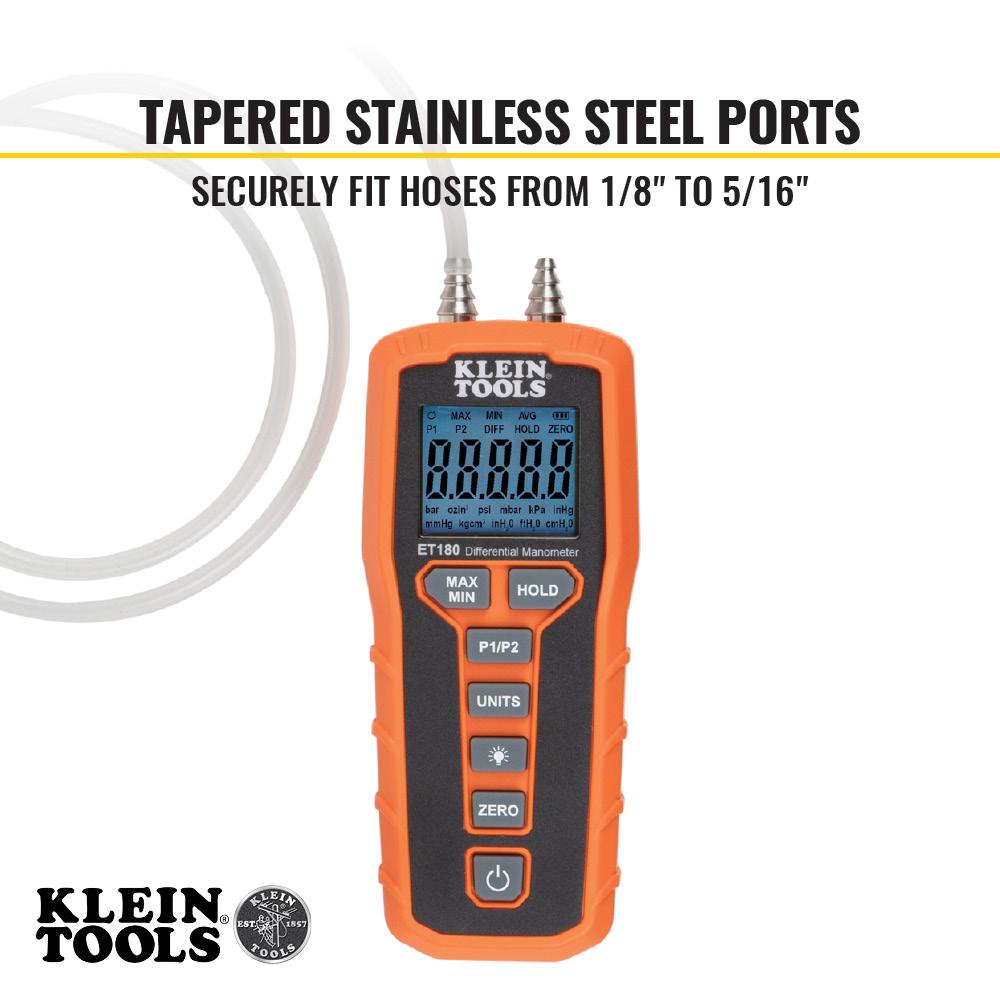

Connector Type:Tapered Stainless Steel Ports from 1/8"" to 5/15""
Temperature Range:32° to 122° F (0° to 50° C)
Display:Backlit LCD
Batteries:3 x AAA
Low Battery Indicator:Yes
Auto-Power Off:Yes
Material:ABS, Stainless Steel
Overall Length:2.47"" (6.3 cm)
Overall Height:6.19"" (15.7 cm)
Overall Width:1.38"" (3.5 cm)

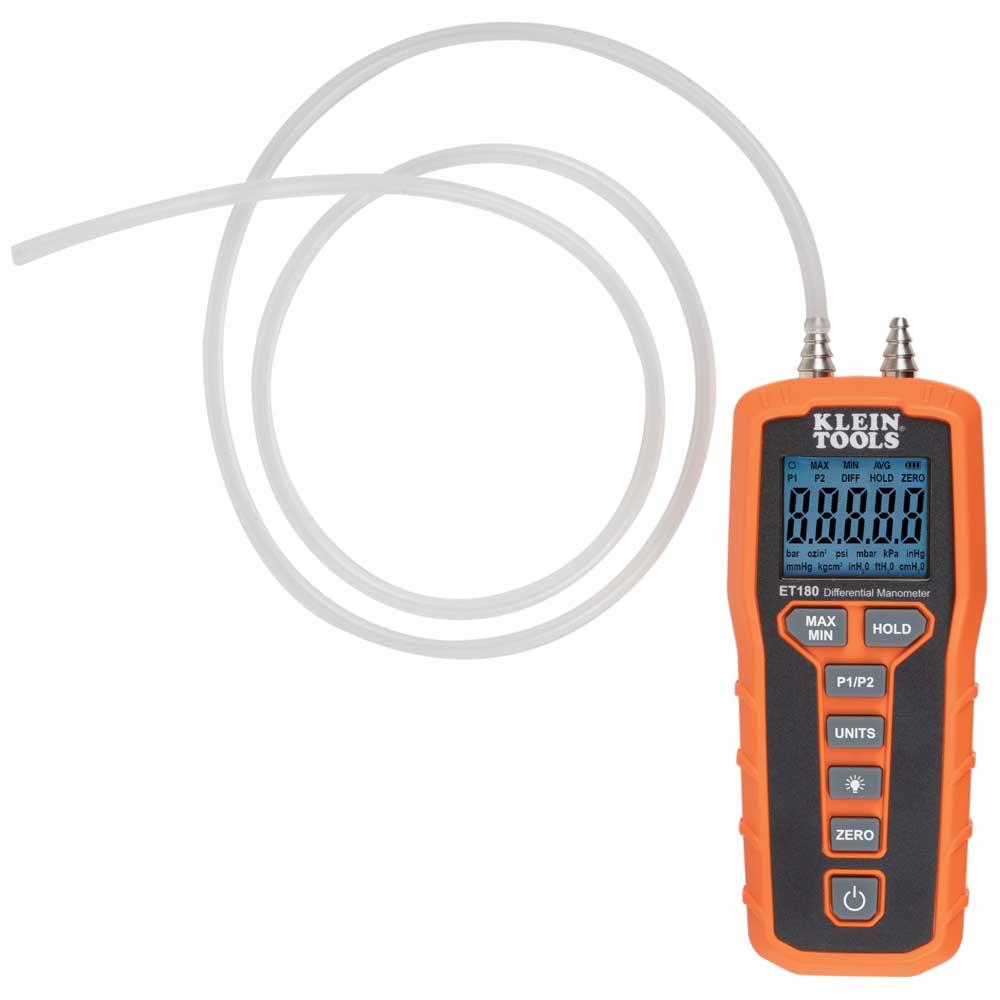

Included:6.56" (2 m) x 1/8"" (3 mm) Inside Diameter Silicon Tubing, 3 x AAA Batteries, Pouch, Instruction Manual
Standard:Conforms to EN 61326-1:2013; EN61326-2-3:2013; CE and UKCA Certified
Weight:7.2 oz (202 g)

Klein Tools

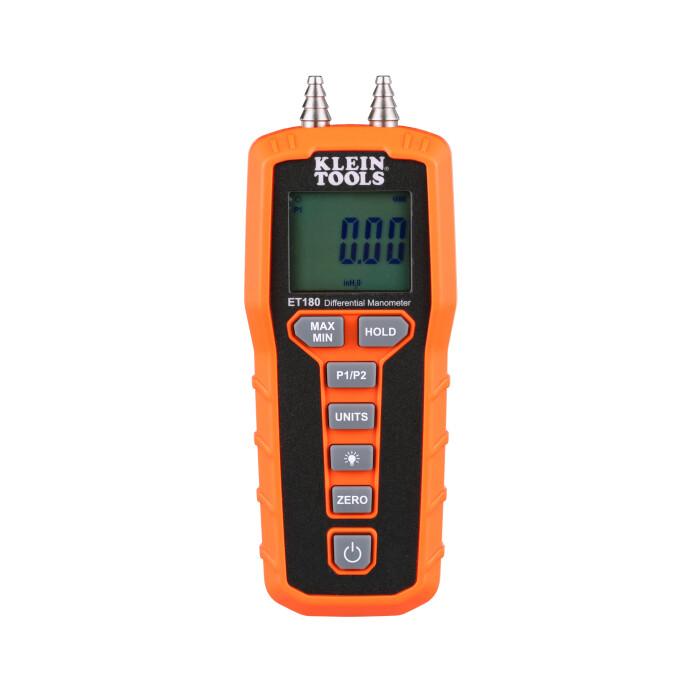

Klein Tools ET180 Digital Differential Manometer
