The CL900 Electrical Tester is an auto-ranging, true root mean square (TRMS) digital clamp meter. It measures AC/DC current via the clamp and measures AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance, and tests diodes via test-leads. It features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages, and has a dedicated mode for capturing Inrush Current.

  • Digital Clamp Meter measures 2000A AC/DC, 1000V AC/DC, 60 Milliohm
  • Rugged Klein ''TOUGH METER'' industrial design stands up to jobsite demands; built to withstand a 6.6-Foot (2m) drop
  • Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
  • CAT IV 600V, CAT III 1000V, Class 2, double insulation safety rating
  • Backlit display for clear visibility in environments with low ambient lighting
  • Dedicated mode for capturing Inrush Current
  • Non-contact voltage tester integrated into the clamp
  • Low impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
  • Audible continuity, capacitance, diode test, frequency and duty cycle, min/max feature, data hold capability
  • Test leads measure AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance and diodes
  • Clamp measures AC and DC current
  • Powers off automatically after 30 minutes of non-use to conserve battery life
  • Low battery indicator and easily accessible battery compartment

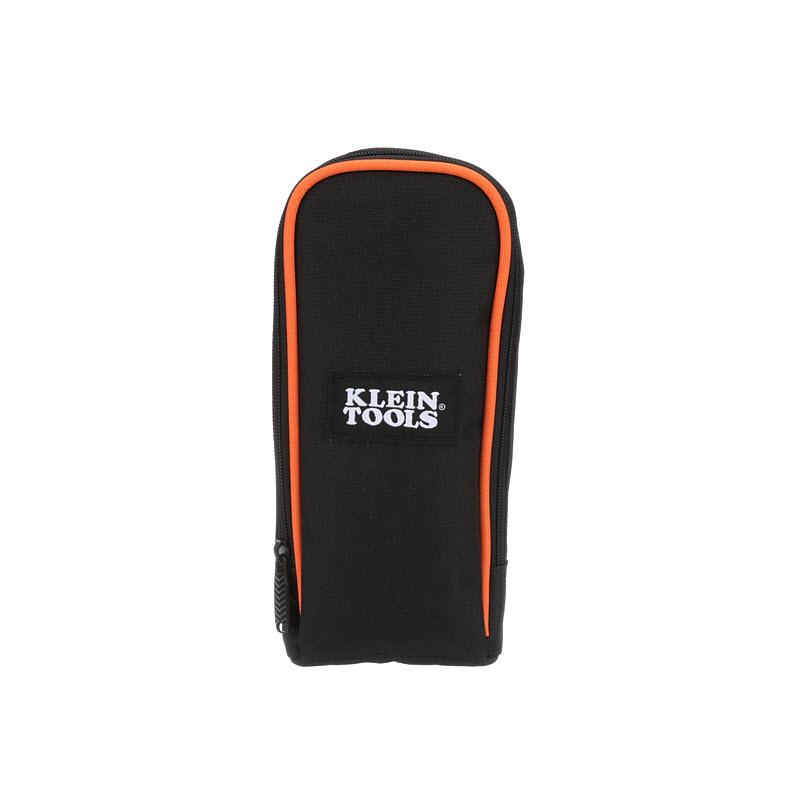

  • Includes carrying case (instruction manual), straight input test leads, and 2 x AAA batteries
  • Can be used with Magnetic Hanger Cat. No. 69417 (sold separately)

Additional Information

Type:Clamp Meter
Application:Measures Current to 2000A AC/DC
Special Features:Low Impedance (LoZ) Mode; Dedicated Mode for Capturing Inrush Current; Integrated Non-Contact Voltage Tester
Material:Plastic/Electronics
Batteries:2 x AAA
Auto-Power Off:Yes
Jaw Size:2"" (5 cm)
Drop Protection:6.6" (2 m)
Display:6000 Count LCD
Functions:Audible Continuity, Capacitance, Diode Test, Frequency & Duty Cycle, Min/Max feature, Data Hold capability, Inrush Current, Low Impedance
Voltage:1000V AC/DC
Frequency:500kHz
Current:2000A AC/DC
Capacitance:6000µF
Ohms (Resistance):60M¦
AC Voltage:1000
DC Voltage:1000
DC Polarity Indicator:Yes
DC Micro-Amp:No
Ingress Protection:IP40
Standard:CAT IV 600V, CAT III 1000V
Included:Carrying Case, Instruction Manual, Straight Input Test Leads, Batteries
Overall Length:10.39"" (26.4 cm)
Overall Height:1.70"" (4.3 cm)
Overall Width:3.90"" (9.9 cm)
Weight:17.6 oz (499 g)

Klein Tools

Klein Tools CL900 Digital Clamp Meter, Ac Auto-Range Trms, Low Impedance (Loz), 2000 Amp

Klein Tools CL900 Digital Clamp Meter, Ac Auto-Range Trms, Low Impedance (Loz), 2000 Amp

GTIN : 092644692352

MPN : CL900

SKU : kpt036-CL900
