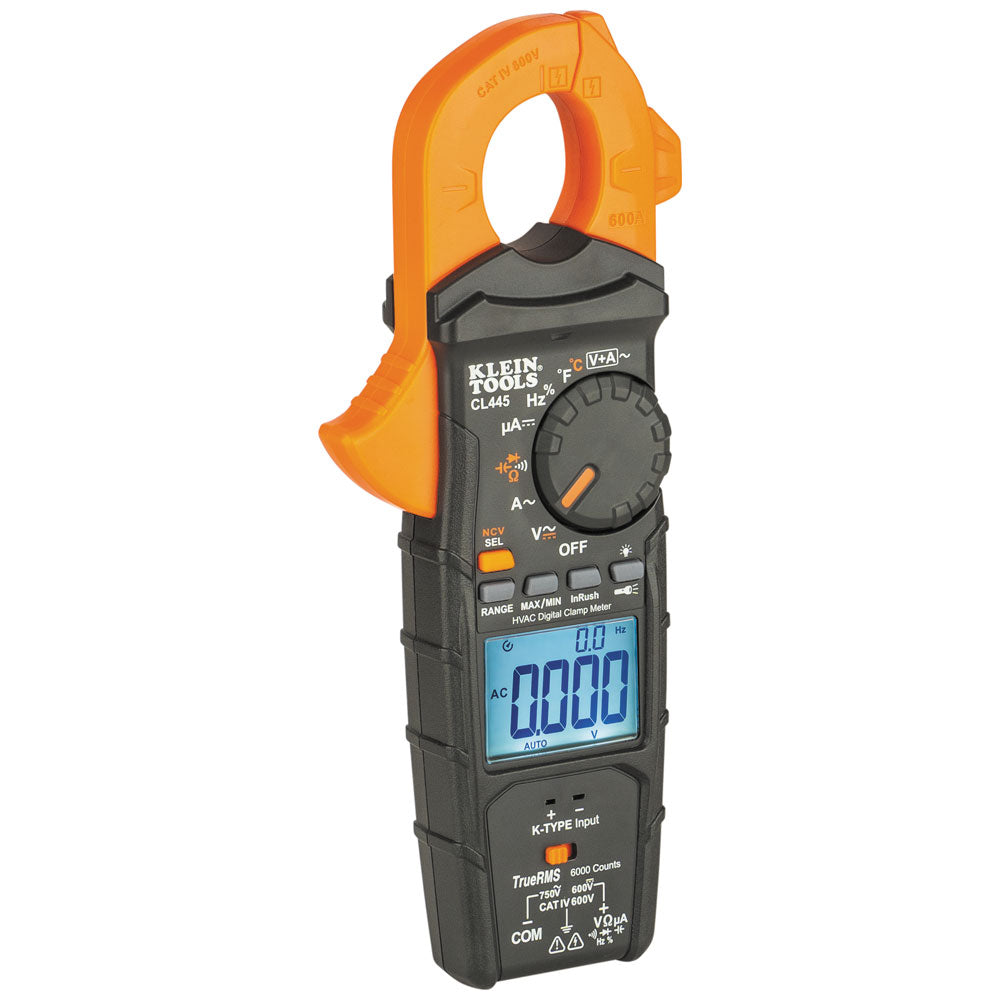

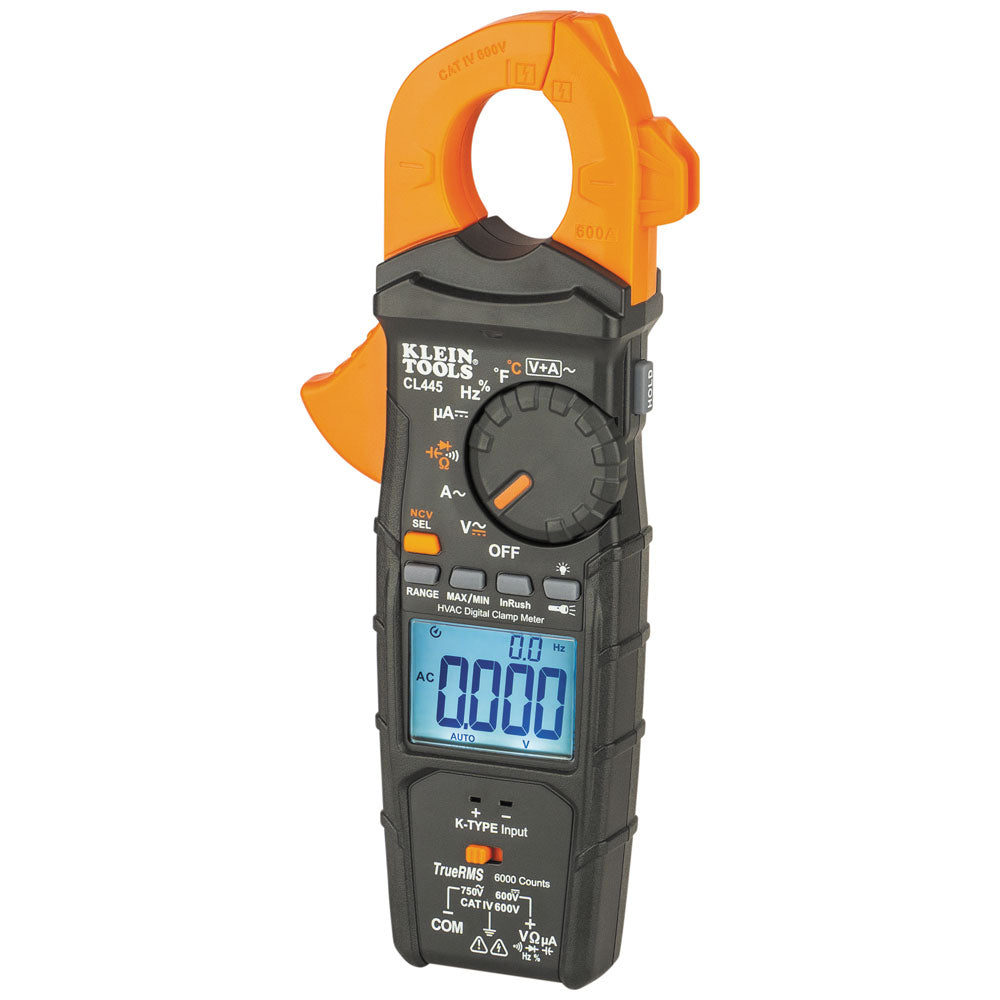

Klein Tools CL445 Clamp Meter is an advanced HVAC clamp meter with automatically ranging true root mean square (TRMS) for maximum accuracy. The meter measures AC current, inrush current, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, temperature, diodes, and more. This Digital Clamp Meter can simultaneously measure current and voltage, has a built-in worklight and comes with right-angle input test leads, push-on alligator clips, K-Type thermocouple, storage pouch, instructional manual, and 3 x AAA batteries.

Features

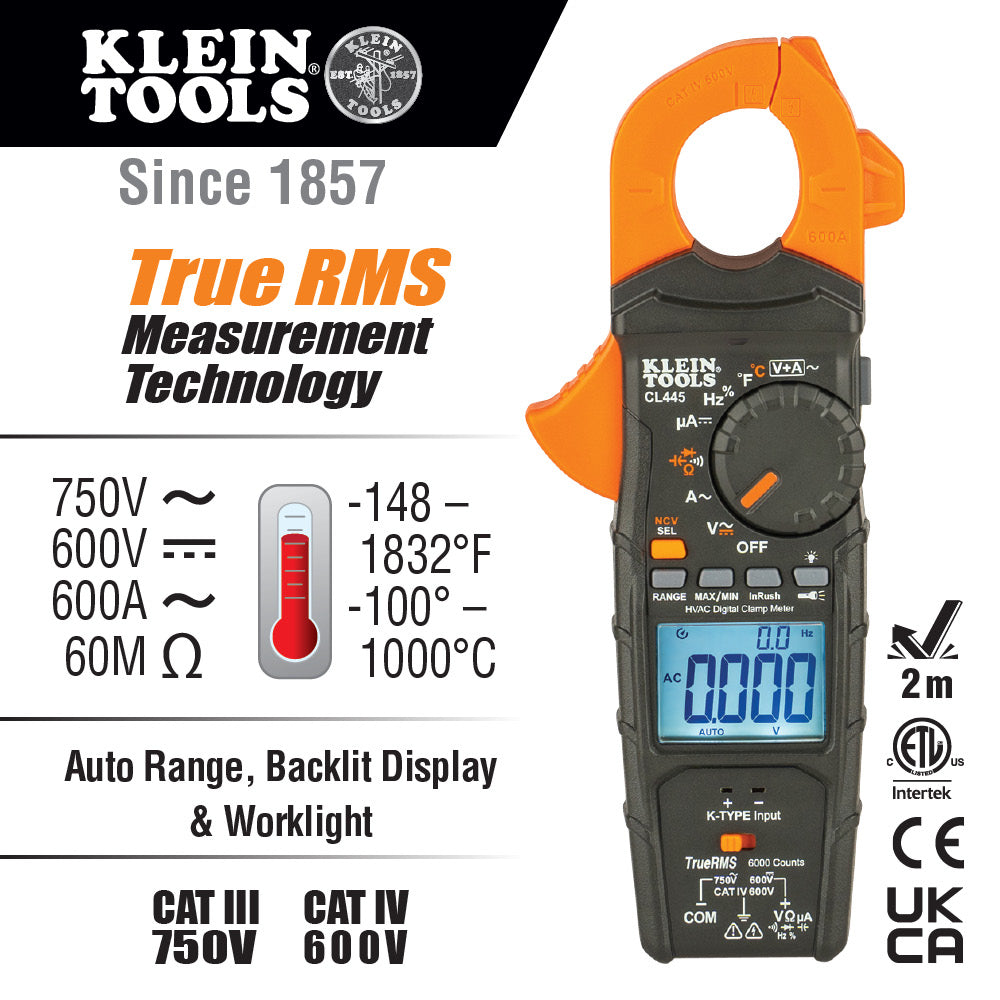

  • CL445 HVAC Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter
  • Digital clamp measures 600 A AC current and inrush current
  • Test leads measure 750V AC/600V DC voltage, DC micro amp, resistance, continuity, frequency, duty-cycle, capacitance, and diode tests

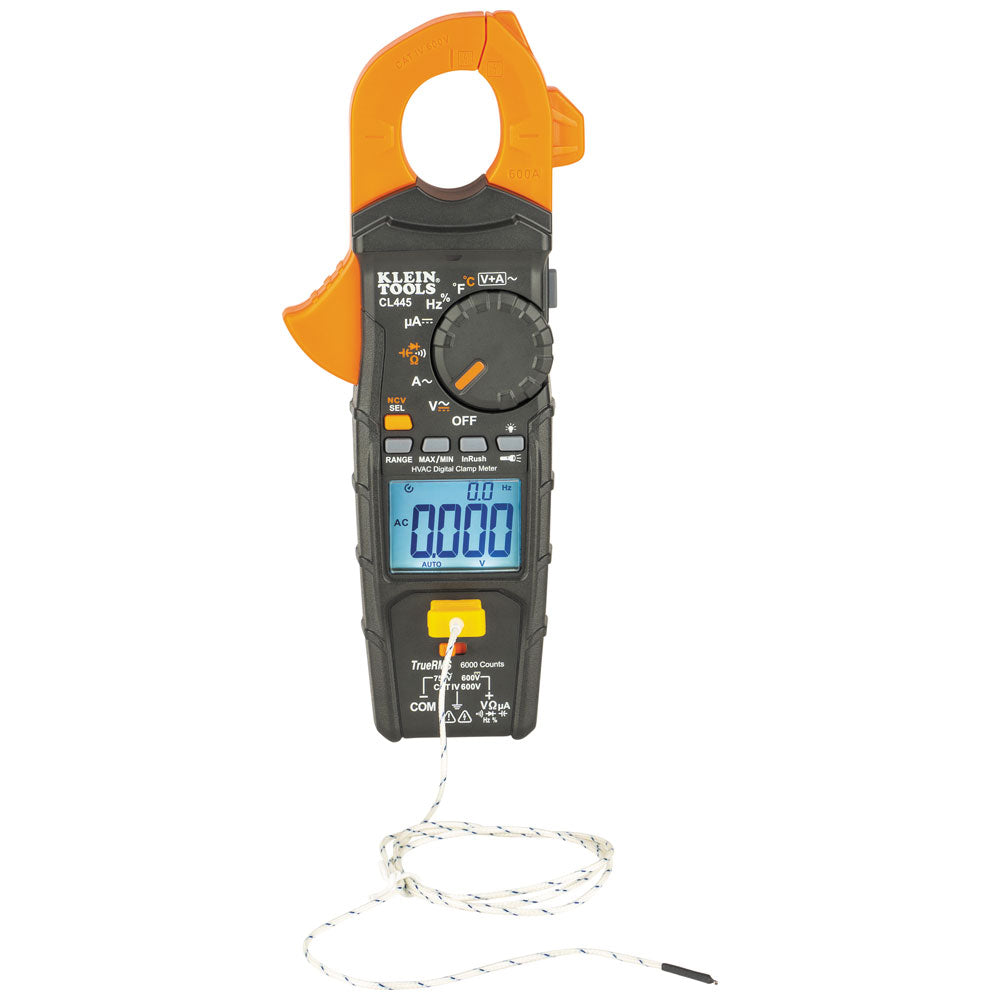

  • K-Type thermocouple port for measuring temperature from -148 to 1832-Degree Fahrenheit (-100 to 1000-Degree Celsius)
  • Detect AC current with non-contact voltage tester integrated into the clamp jaw

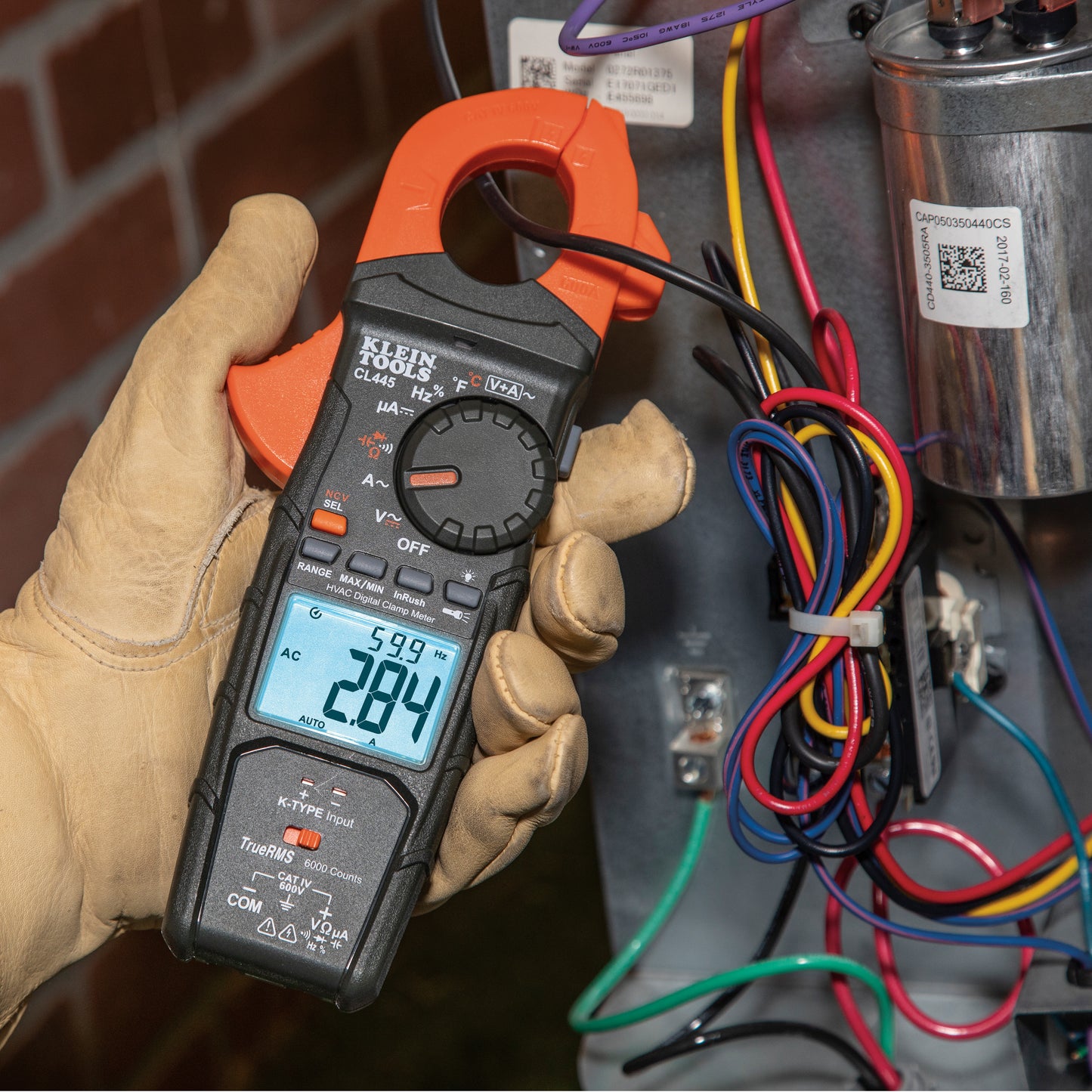

  • Backlit LCD with dual V + A function allows simultaneous viewing of voltage and current measurements
  • Dedicated mode for capturing DC micro amp and inrush current

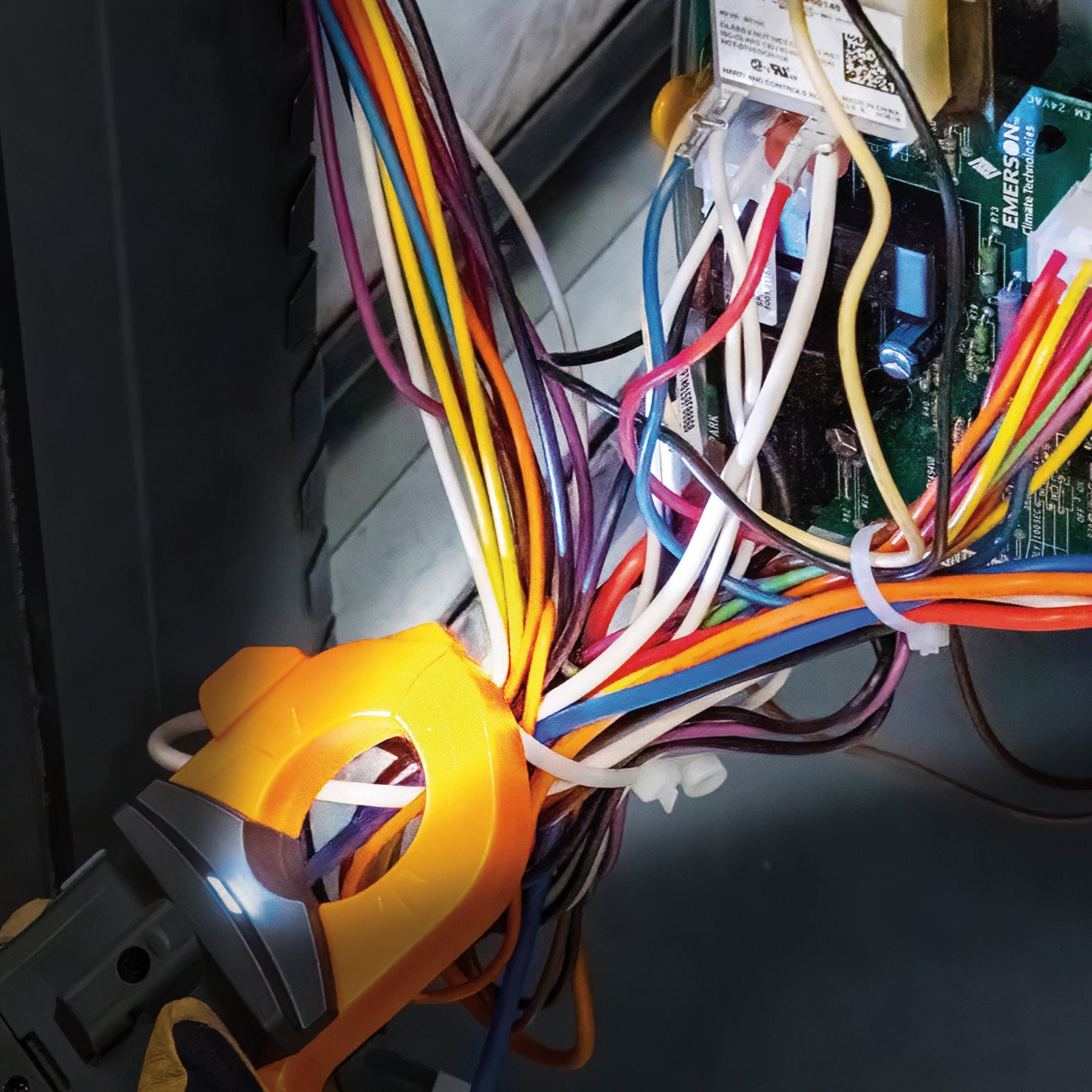

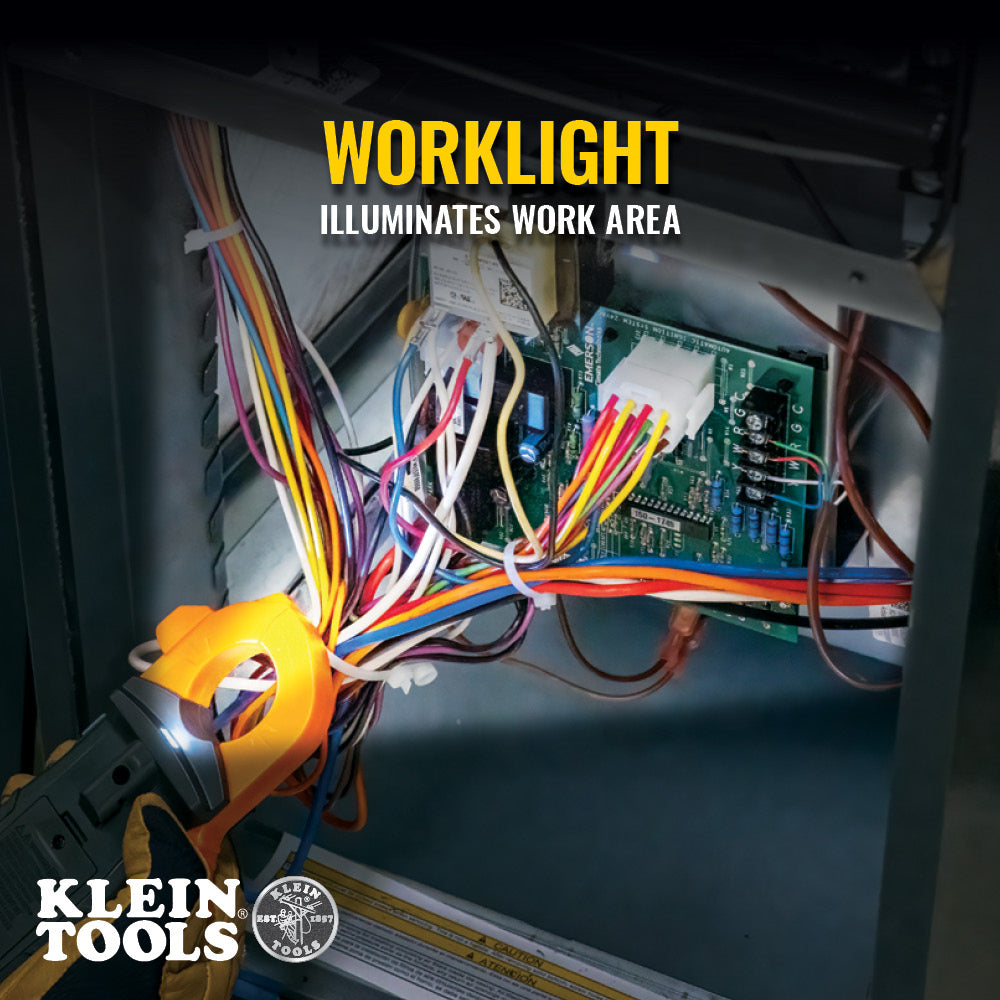

  • Meter has a built-in worklight to illuminate in low light areas
  • CAT IV 600V, CAT III 750V, Class 2, Double insulation safety rating

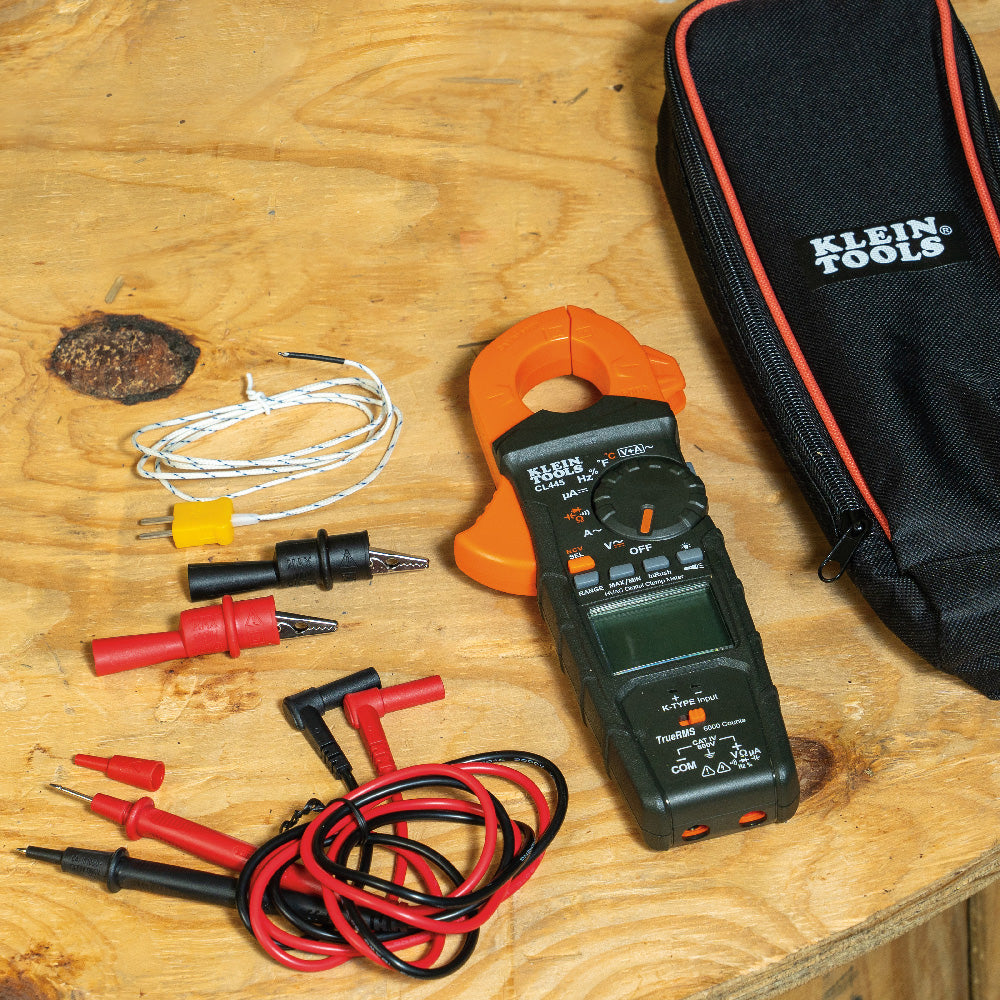

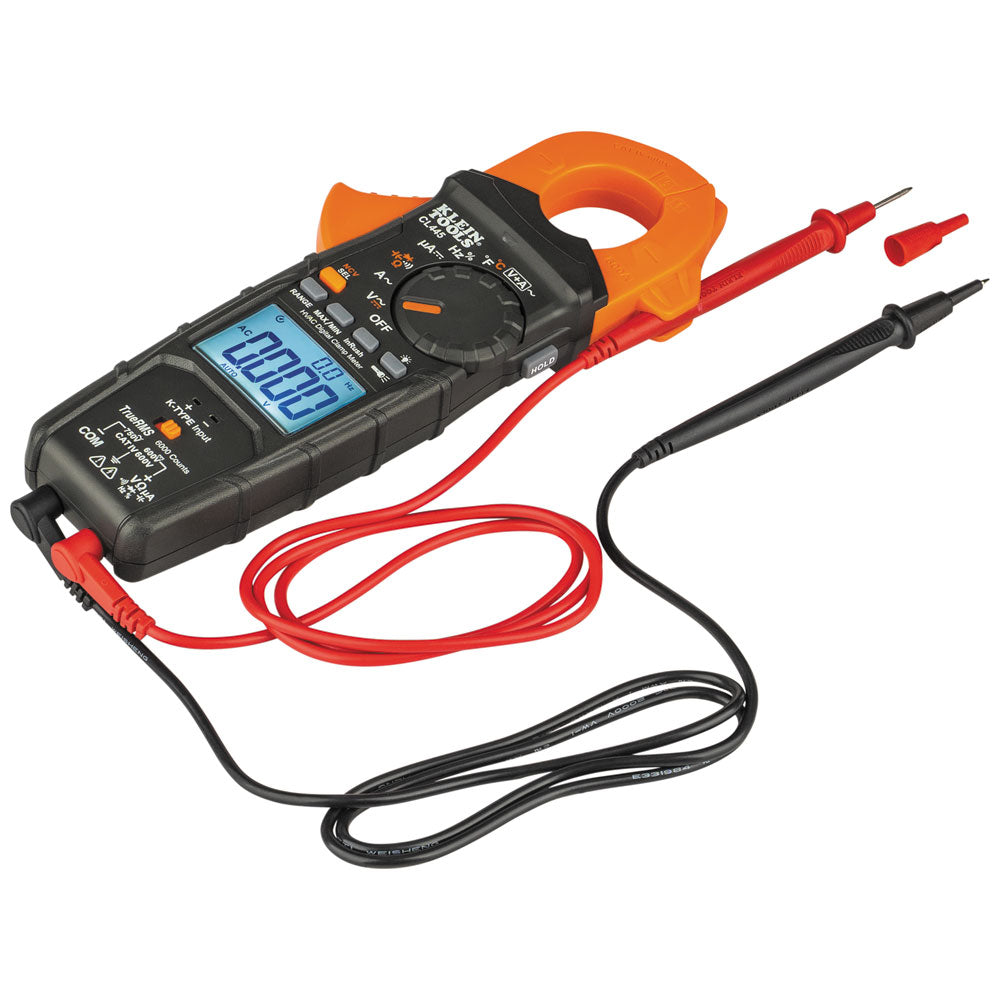

  • Includes right-angle input test leads, push-on alligator clips, K-type thermocouple, storage pouch, instruction manual, and 3 x AAA batteries
  • Can be used with Magnetic Hanger (Cat. No. 69417, sold separately) for hands free operation

Additional Information

Type HVAC TRMS Clamp Meter
Application Measures AC Current, Inrush Current, AC/DC Voltage, DC Microamps, Resistance, Continuity, Frequency, Capacitance, Temperature, Diodes, and More
Special Features Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; V + A Simultaneously Displayed; Built-in Worklight
Material ABS/Electronics
Batteries 3 x AAA
Auto-Power Off Yes
Jaw Size 1.25'' (3.2 cm)
Drop Protection 6.6' (2 m)
Display 6000 Count LCD
Functions TRMS, AC Current, Inrush Current, AC/DC Voltage, DC Microamps, Resistance, Audible Continuity, Frequency, AC Voltage + AC Amperage, Capacitance, Temperature, Non-Contact Voltage Testing, Diodes, Min/Max, Data Hold Capability
Voltage 750V AC; 600V DC
Frequency 60 kHz
Current 600A
Capacitance 6.000mF
Ohms (Resistance) 60M„¦
AC Voltage 750V
DC Voltage 600V
DC Polarity Indicator Yes
DC Micro-Amp 600µA
Temperature Range -148° to 1832°F (-100° to 1000°C)
Standard CAT IV 600V, CAT III 750V, Class 2, Double Insulation Safety Rating

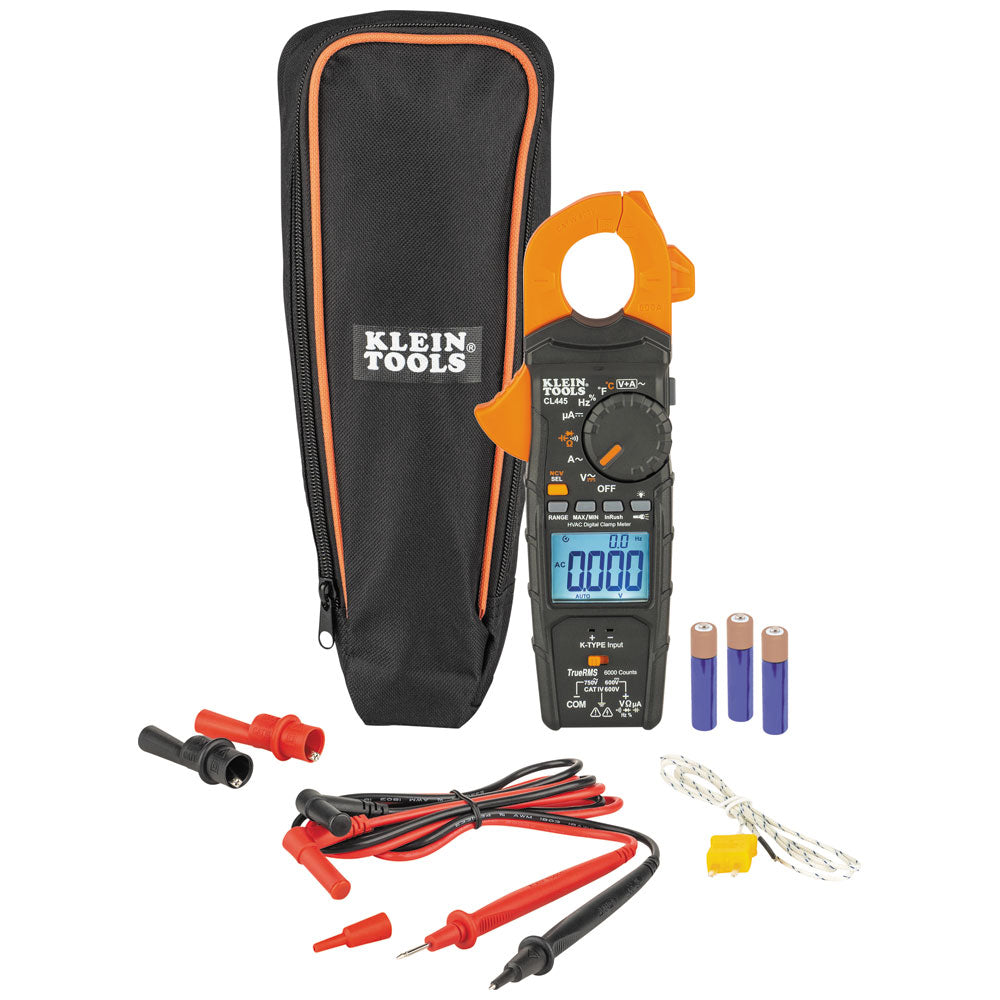

Included Clamp Meter; Right-Angle Input Test Leads; Push-On Alligator Clips; K-Type Thermocouple; Storage Pouch; Instruction Manual; and 3 x AAA Batteries
Overall Length 9.24'' (23.5 cm)
Overall Height 1.59'' (4 cm)
Overall Width 3.77'' (9.6 cm)
Weight 12.5 oz (355 g)
UPC 092644693786
