The #CIH20DL data logging anemometer is ideal for low-airflow applications. It can detect breezes as gentle as 40 ft./min (0.2 m/sec).

  • Measures and displays air speed and airflowvolume in several Imperial or metric units
  • Simultaneously measures and displays ambient temperature
  • Calculates and displays min/max/avg session values of air speed, or maximum values of air speed + temperature
  • 8:1 laser thermometer for non-contact surface temperature measurement
  • The telescoping probe and cable extend the reach of the hot wire sensor and thermistor to up to6 ft. (1.8m)
  • Jumbo backlit LCD with three readouts
  • Stores/recalls up to nine sets of any three readings in nonvolatile memory
  • Logs up to 20,000 data points internally, for later download and display as an Excel-formatted graph or table on a Windows PC using the included software and USB cable
  • Min/max/avg + data hold
  • °F/°C switch
  • Auto power off (can be disabled for data logging)

Additional Information

ManufacturerGeneral Tools
IncludesPC interface/data logging software on CD USB cable AC adaptor Battery Custom hard plastic carrying case 1-year limited warranty
Dimensions7.24 x 2.75 x 1.57 in. (184 x 70 x 40mm)
Auto power offAfter 10 minutes of inactivity when on battery power; after 30 minutes when on AC power; automatically disabled when the meter is running on AC power in data logging mode
Power source"9V" battery (included) or AC adaptor (included)
Ambient temperature measurement range/resolution32° to 158°F (0° to 70°C)/0.1°
Ambient temperature measurement accuracy1.5°F (0.8°C)
Air speed measurement range/accuracy40 to 7874 ft./min (0.2 to 40 m/sec)/3% of reading
Air speed measurement resolutions0.1 ft./min; 0.01 m/s; 0.01 km/h; 0.01 mph; 0.01 knots
Airflow volume measurement range/accuracy0 to 2.5 million CFM (0 to 72,000 CMM)/3% of reading
Airflow volume measurement resolutions1 CMM; 1 CFM from 0 to 99,999 CFM; 10 CFM from 100,000 to 999,999 CFM; 100 CFM from 1,000,000 to 2,500,000 CFM
IRT distance-to-spot (DS) ratio
IRT measurement range/resolution-25° to 999°F (-32° to 538°C)/0.1°
IRT measurement accuracy5.4°F (3°C) from -25° to -4°F (-32° to 20°C); 3.6°F (2°C) from -4° to 212°F (-20° to 100°C); 2% of reading from 212° to 999°F (100&de
IRT emissivity settingFixed at 0.95
Data logging sampling timeAdjustable from 5 seconds to 1 hour
Extended length of telescoping hot wire probe70.8 in. (1.8m)
LCD size1.69 x 2.4 in. (33 x 51mm)
Operating temperature32° to 122°F (0° to 50°C) @ 10 to 90% RH

General Tools

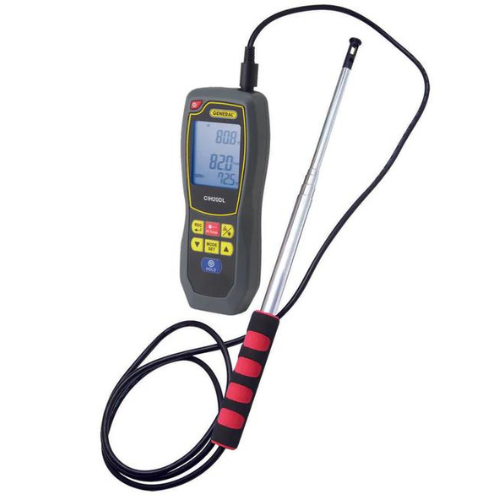

General Tools CIH20DL Data Logging Airflow Volume Hot Wire Anemometer With 8:1 Infrared Thermometer

General Tools CIH20DL Data Logging Airflow Volume Hot Wire Anemometer With 8:1 Infrared Thermometer

GTIN :

MPN : CIH20DL

SKU : kpt028-CIH20DL

In Stock - 1 (Available by Sun, Jan 12 - Thu, Jan 16)

$469.57
