  • Permanent magnet for extremely safe work at heights as well as a pivoting motor cable protection sleeve and high-quality workmanship for tough use.
  • Lightweight, compact tool with powerful torque for sustained high work progress thanks to the FEIN high-performance motor with tacho electronics.
  • Machine with extra large stroke for all drilling work, such as mag base and twist drilling, tapping, countersinking and reaming.
  • Extra narrow permanent magnet with magnetic bias.
  • Motion sensor.
  • Simple and error-proof control concept in the operator's field of view.
  • Convenient magnetic holding force display.
  • Reversible.
  • Integrated coolant tank.
  • "Memory function" speed storage.
  • Hand feed wheel can be mounted on either side.

Additional Information

Weight27.56 [12.50] lbs[kg]
Power consumption1,010 W
Full load speed130 - 520 rpm
Sound pressure level LpA86,7 dB
Sound power level LWA97,7 dB
Peak sound value LpCpeak101,2 dB
Vibration value 1 ahv 3-way<2,5 m/s²
TappingM 14
Carbide cutter max. dia.1-3/8 [35] in[mm]
HSS cutter max. dia.1-3/8 [35] in[mm]
Cutter max. drilling depth2 [50] in[mm]
Twist drill max. dia.5/8 [16] in[mm]
Max. countersinking dia.1-1/4 [31] in[mm]
Reaming max. dia.5/8 [16] in[mm]
Cutter holder3/4" Weldon
Cutter changetool-free
Stroke5-5/16 [135] in[mm]
Total stroke range10-1/4 [260] in[mm]
Magnetic holding force2023 [9,000] lbs[N]
Magnetic base dimensions7-11/16 [195] x 2-3/4 [70] in[mm]
Power output550 W
Cable with plug13.1 [4] ft[m]

Fein

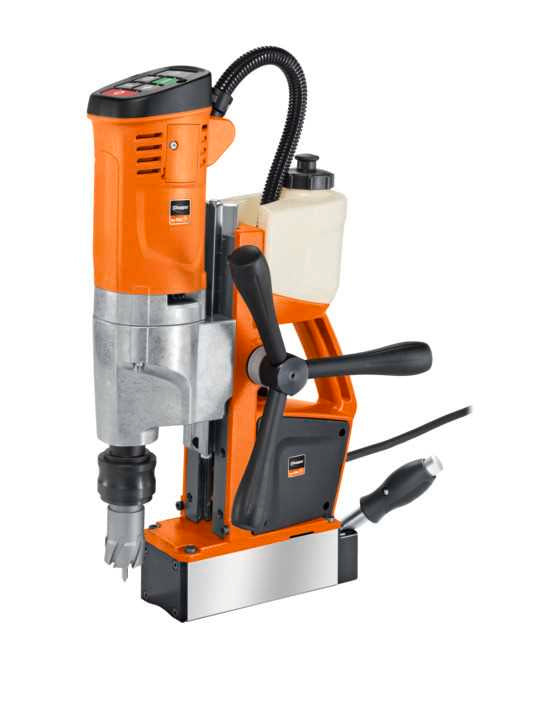

Fein 72707361090 Core_Drill_Jmu137Pqw Set/N09 60H1

Fein 72707361090 Core_Drill_Jmu137Pqw Set/N09 60H1

GTIN :

MPN : 72707361090

SKU : kpt040-72707361090

Back Order

Get it by Tue, Jul 01 - Sun, Jul 06

$1,699.95
$1,699.95
Sale Sold out
Shipping calculated at checkout.
