  • FEIN 1,700 W high-performance motor with high torque for heavy drilling work.
  • For tough use, thanks to top-quality workmanship and pivoting motor cable protection sleeve.
  • Machine with extra large stroke for all drilling work, such as mag base and twist drilling, tapping, countersinking and reaming.
  • Mechanical 4-speed gearbox.
  • High magnetic holding force.
  • Torque arm for increased magnetic holding power.
  • Motion sensor.
  • Torque slip clutch.
  • Convenient magnetic holding force display.
  • Electronic speed setting.
  • Reversible.
  • MT4 tool mounting.
  • Integrated coolant tank.
  • Personal safety switches.

Additional Information

Weight79.37 [36.00] lbs[kg]
Power consumption1,700 W
Sound pressure level LpA86,0 dB
Sound power level LWA97,0 dB
Peak sound value LpCpeak98,5 dB
Vibration value 1 ahv 3-wayah,D = 1,4 m/s²
Tool mountMT 4
TappingM 36
Carbide cutter max. dia.4 [101] in[mm]
HSS cutter max. dia.3 [75] in[mm]
Cutter max. drilling depth4 [101] in[mm]
Twist drill max. dia.1-3/8 [35] in[mm]
Max. countersinking dia.2-3/8 [60] in[mm]
Reaming max. dia.1-3/8 [35] in[mm]
Cutter holderWeldon 32
Stroke11 [280] in[mm]
Total stroke range15-3/4 [400] in[mm]
Magnetic holding force5171 [23,000] lbs[N]
Magnetic base dimensions9-7/16 [240] x 4-3/4 [120] in[mm]
Power output850 W
Cable with plug13.1 [4] ft[m]
Load speed: 1st gear60 / 120 rpm
Load speed: 2nd gear90 / 170 rpm
Load speed: 3rd gear150 / 300 rpm
Load speed: 4th gear230 / 430 rpm
No-load speed: 1st gear100 / 190 rpm
No-load speed: 2nd gear160 / 290 rpm
No-load speed: 3rd gear270 / 500 rpm
No-load speed: 4th gear420 / 750 rpm

Fein

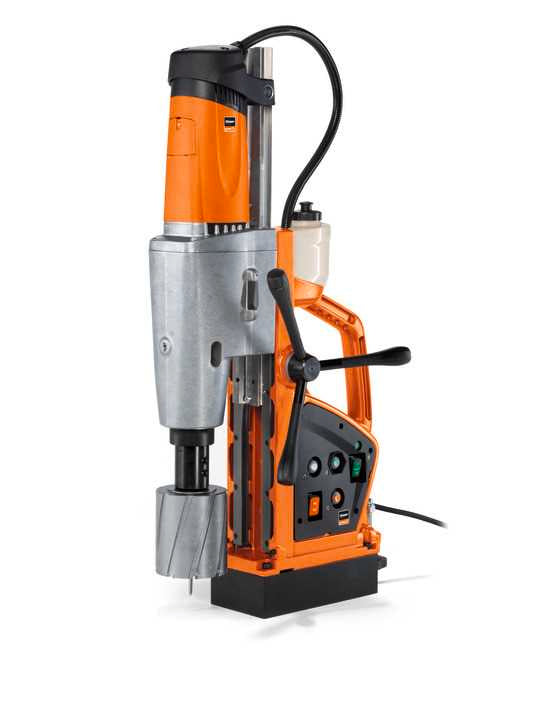

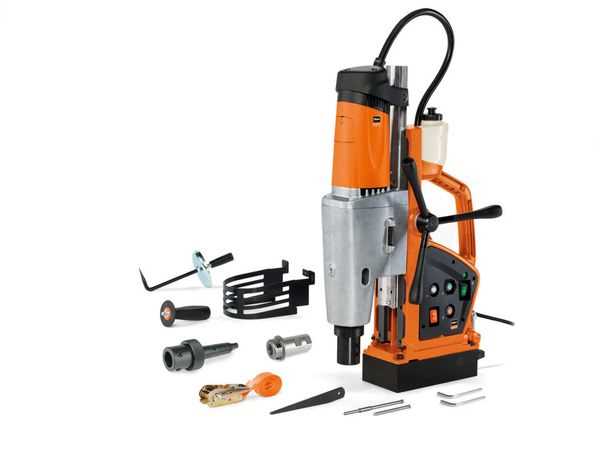

Fein 72706061090 Magn.Core Drill. Jmu404M Set N09

Fein 72706061090 Magn.Core Drill. Jmu404M Set N09

GTIN :

MPN : 72706061090

SKU : kpt040-72706061090

Back Order

Get it by Tue, Jul 01 - Sun, Jul 06

$3,249.95
$3,249.95
