1 4
  • Extremely wear-resistant tool concept with swivel-mounted motor cable protection hose for tough conditions in industry and skilled trades.
  • Perfect power-to-weight ratio, thanks to compact, weight-optimized design and FEIN 1100 W high-performance motor with tacho electronics for high speed stability for reliable and efficient operation.
  • Universal use, such as mag base drilling, twist drilling, tapping, countersinking, and reaming is possible due to forward / reverse rotation, electronic speed setting and a 10-1/4 in [260 mm] stroke.
  • Small, with MT2 tool mount.
  • Simple and error-proof control concept in the operator's field of view.
  • Convenient magnetic holding force display.
  • High magnetic holding force.
  • Motion sensor.
  • Additional magnet switch in the drill stand.
  • Integrated coolant tank.
  • Hand feed wheel can be mounted on either side.
  • "Memory function" speed storage.
  • optional using accessory.

Additional Information

Weight23.59 [10.70] lbs[kg]
Power consumption1,100 W
Full load speed130 - 520 rpm
Sound pressure level LpA82,3 dB
Sound power level LWA93,3 dB
Peak sound value LpCpeak95,9 dB
Vibration value 1 ahv 3-wayah,D <2,5 m/s²
Tool mountMT 2
TappingM 14
Carbide cutter max. dia.1-3/8 [35] in[mm]
HSS cutter max. dia.1-3/8 [35] in[mm]
Cutter max. drilling depth2 [50] (3 [75] )* in[mm]
Twist drill max. dia.3/4 [18] in[mm]
Max. countersinking dia.1-1/4 [31] in[mm]
Reaming max. dia.3/4 [18] in[mm]
Cutter holder3/4" Weldon
Cutter changetool-free
Stroke5-5/16 [135] in[mm]
Total stroke range10-1/4 [260] in[mm]
Magnetic holding force2248 [10,000] lbs[N]

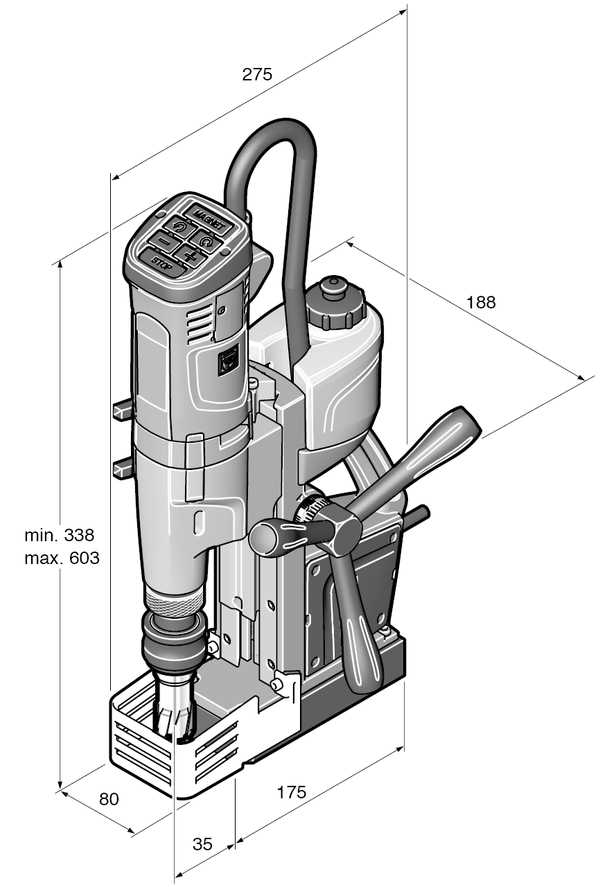

Magnetic base dimensions6-7/8 [175] x 3-1/8 [80] in[mm]
Power output550 W
Cable with plug13.1 [4] ft[m]

Fein

Fein 72705661120 Core Drill.Mach.Jmu137Mqw Setn09

Fein 72705661120 Core Drill.Mach.Jmu137Mqw Setn09

GTIN :

MPN : 72705661120

SKU : kpt040-72705661120

Back Order

Get it by Tue, Jul 01 - Sun, Jul 06

$1,499.95
$1,499.95
Sale Sold out
Shipping calculated at checkout.
