1 6
  • Extremely resilient design due to solid machine construction with pivoting motor cable protection sleeve. Designed for heavy use in trade and industry.
  • Perfect power-to-weight ratio, thanks to compact, weight-optimized design and FEIN 1100 W high-performance motor with tacho electronics for high speed stability for reliable and efficient operation.
  • Universal use, such as mag base drilling, twist drilling, tapping, countersinking, and reaming is possible due to forward / reverse rotation, electronic speed setting and a 10-1/4 in [260 mm] stroke.
  • Small, with mechanic 2-gearbox for twist drilling.
  • Simple and error-proof control concept in the operator's field of view.
  • Convenient magnetic holding force display.
  • High magnetic holding force.
  • Motion sensor.
  • Additional magnet switch in the drill stand.
  • Integrated coolant tank.
  • Hand feed wheel can be mounted on either side.
  • "Memory function" speed storage.

Additional Information

Weight24.47 [11.10] lbs[kg]
Power consumption1,100 W
Sound pressure level LpA83,2 dB
Sound power level LWA94,2 dB
Peak sound value LpCpeak96,8 dB
Vibration value 1 ahv 3-wayah,D <2,5 m/s²
TappingM 14
Carbide cutter max. dia.1-3/8 [35] in[mm]
HSS cutter max. dia.1-3/8 [35] in[mm]
Cutter max. drilling depth2 [50] in[mm]
Twist drill max. dia.5/8 [16] in[mm]
Max. countersinking dia.1-1/4 [31] in[mm]
Reaming max. dia.5/8 [16] in[mm]
Cutter holder3/4" Weldon
Cutter changetool-free
Stroke5-5/16 [135] in[mm]
Total stroke range10-1/4 [260] in[mm]
Magnetic holding force2136 [9,500] lbs[N]

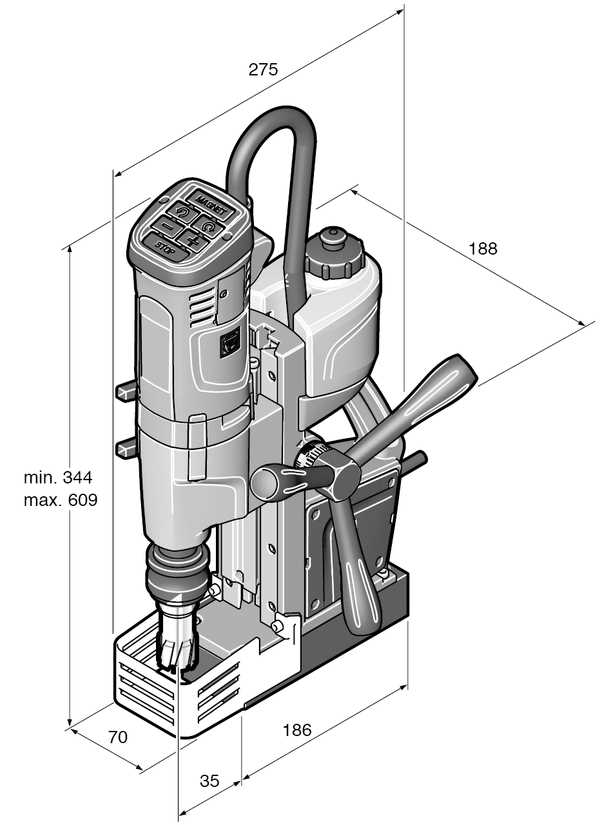

Magnetic base dimensions7-5/16 [186] x 2-3/4 [70] in[mm]
Power output550 W
Cable with plug13.1 [4] ft[m]
Load speed: 1st gear130 - 520 rpm
Load speed: 2nd gear400 - 1,600 rpm

Fein

Fein 72705861120 Core Drill.Mach Jmu137-2Qw N09 120V60H

Fein 72705861120 Core Drill.Mach Jmu137-2Qw N09 120V60H

GTIN :

MPN : 72705861120

SKU : kpt040-72705861120

Back Order

Get it by Tue, Jul 01 - Sun, Jul 06

$1,699.95
$1,699.95
Sale Sold out
Shipping calculated at checkout.
