1 4
  • Stable speed, even in the toughest applications.
  • Fine drill spindle adjustment for convenient machine alignment.
  • Double drill motor guides enable use of the longest annular cutters.
  • Reversible
  • Electronic speed control.
  • MT3 interface.
  • High magnetic holding force.
  • Convenient magnetic holding force display.
  • Integrated coolant tank.

Additional Information

Weight35.05 [15.90] lbs[kg]
Power consumption1,300 W
Sound pressure level LpA81,6 dB
Sound power level LWA92,6 dB
Peak sound value LpCpeak95,2 dB
Tool mountMT 3
TappingM 20
Carbide cutter max. dia.2-1/2 [65] in[mm]
HSS cutter max. dia.1-3/4 [45] in[mm]
Cutter max. drilling depth2 [50] in[mm]
Twist drill max. dia.1 [25] in[mm]
Max. countersinking dia.2 [50] in[mm]
Reaming max. dia.1 [25] in[mm]
Cutter holder3/4" Weldon
Cutter changetool-free
Stroke5-11/16 [145] in[mm]
Total stroke range12-3/8 [315] in[mm]
Magnetic holding force3147 [14,000] lbs[N]
Magnetic base dimensions8-1/16 [205] x 3-3/4 [95] in[mm]
Power output730 W
Cable with plug13.1 [4] ft[m]
Load speed: 1st gear120 - 240 rpm
Load speed: 2nd gear260 - 520 rpm
Drill stand adjustment range1/4 [6] in[mm]
Drill stand angular adjustment7°

Fein

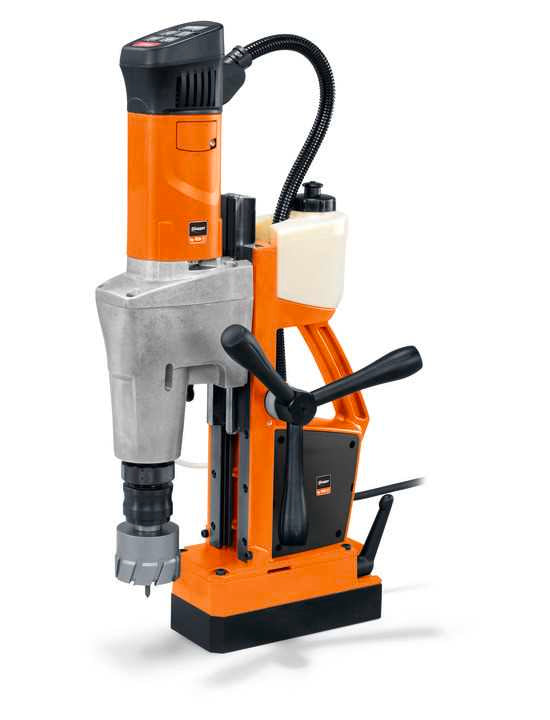

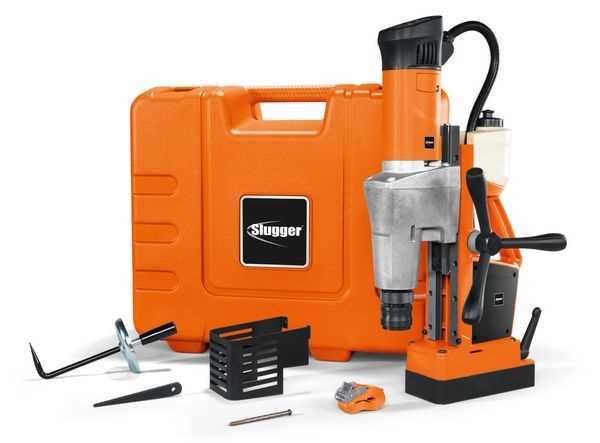

Fein 72704761120 Metal Coredrill Jcm256U N09 Set 60H120V

Fein 72704761120 Metal Coredrill Jcm256U N09 Set 60H120V

GTIN :

MPN : 72704761120

SKU : kpt040-72704761120

Back Order

Get it by Sat, Jan 10 - Thu, Jan 15

$2,299.95
$2,299.95
Sale Sold out
Shipping calculated at checkout.
