Features
  • Features Drop-Forged and Heat Treated Body and Components
  • Can Be Used for Both Vertical and Horizontal to Vertical Lifting Through 180°
  • Exclusive Feature is a Patented Wear Indicator System. When Any of the Cam'S Straight Line, Convex Teeth Are Flattened Between Unique Wear Indicator Grooves, It is Time to Change the Cam.
  • Note: The Pad and Cam Should Be Replaced at the Same Time
  • Clamps Are 100% Proof Tested and Certificate of Test Supplied with Each Clamp
  • Minimum WLL of at Least 10% of the Maximum WLL
Specifications
  • UPC - 020418175664
  • Foreign Trade Code - 8205700090
  • Set - No
  • Packaging - Boxed
  • Weight Each (lb) - 9.00 lb
  • Weight - 9
  • A Dimension - 5-7/8
  • B Dimension - 11-1/4 in
  • C Dimension - 3-1/16 in
  • D Dimension - 3-1/16 in
  • E Dimension - 2-1/16 in
  • F Dimension - 5-1/4 in
  • Working Load Limit Metric Ton - 1 t
  • G Dimension - 3-5/8 in
  • H Dimension - 1-5/8 in
  • Grip Range - 3/4 to 1-3/8 in.
  • I Dimension - 5-7/8 in

Crescent

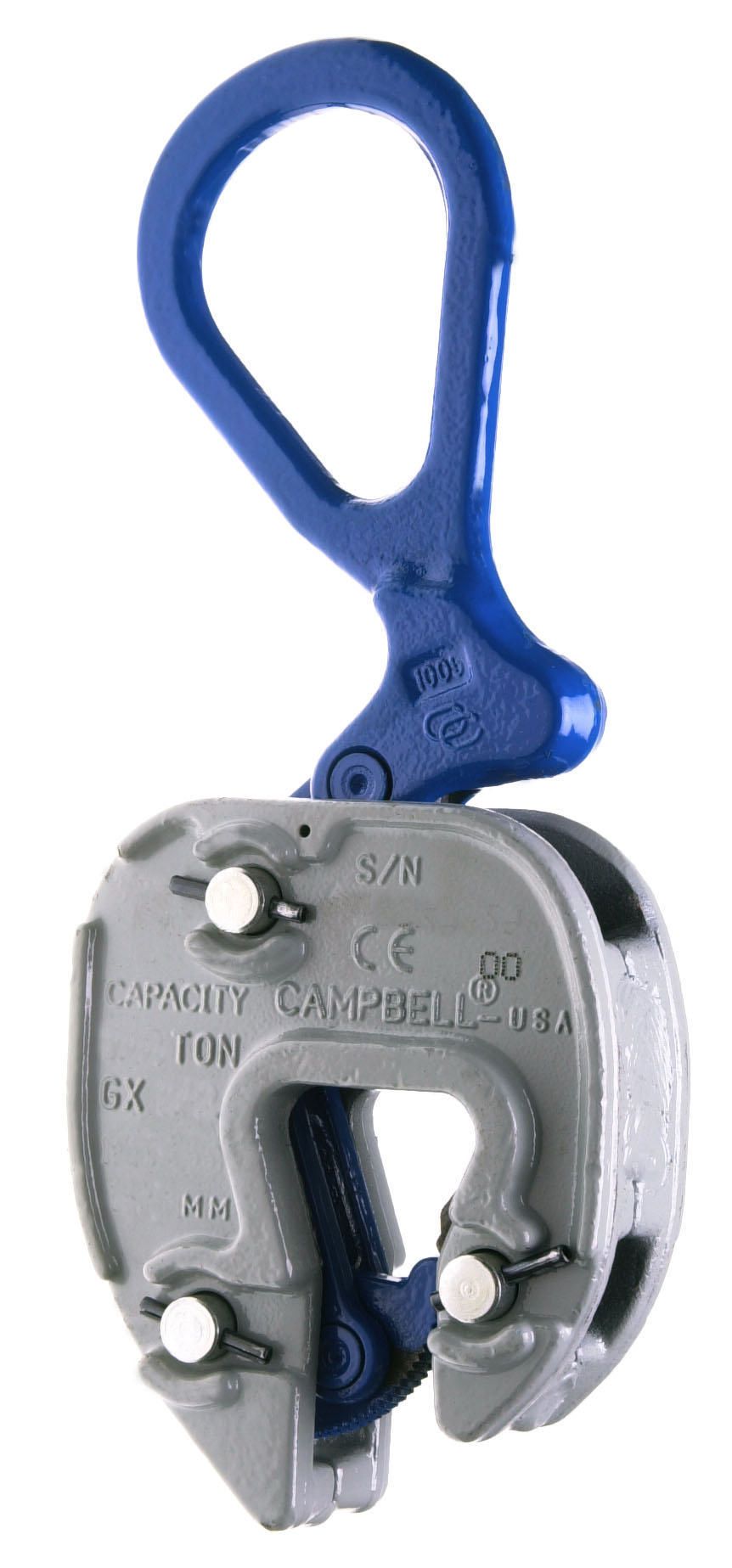

Campbell 6423923 GX Plate Clamp, 3/4"- 1-3/8" Grip, 1 ton WLL

Campbell 6423923 GX Plate Clamp, 3/4"- 1-3/8" Grip, 1 ton WLL

SKU : kpi263-6423923

MPN : 6423923

GTIN : 20418175664

Dropship

$1,852.60
$1,852.60
Sale Sold out
Shipping calculated at checkout.
