Features
  • Designed for a Secure Bite on Small or Odd Shaped, Wide Flanged Beams
  • Can Be Used for Both Vertical and Horizontal to Vertical Lifting Through 180°
  • Put Short Leg Under Plate When Lifting From Horizontal to Vertical
  • Replacement Parts Are Same As for Standard "GX" Clamps
  • Note: The Pad and Cam Should Be Replaced at the Same Time
  • Clamps Are 100% Proof Tested and Certificate of Test Supplied with Each Clamp
  • Minimum WLL of at Least 10% of the Maximum WLL
Specifications
  • UPC - 020418177330
  • Foreign Trade Code - 8205700090
  • Set - No
  • Packaging - Boxed
  • Weight Each (lb) - 4.25 lb
  • Weight - 4
  • A Dimension - 4
  • B Dimension - 9-1/2 in
  • C Dimension - 2-1/8 in
  • D Dimension - 2-5/8 in
  • E Dimension - 2 in
  • F Dimension - 4-1/16 in
  • Working Load Limit Metric Ton - 1/2 t
  • G Dimension - 2-7/8 in
  • H Dimension - 1-3/8 in
  • Grip Range - 1/16 to 5/8 in.
  • I Dimension - 4-3/4 in

Crescent

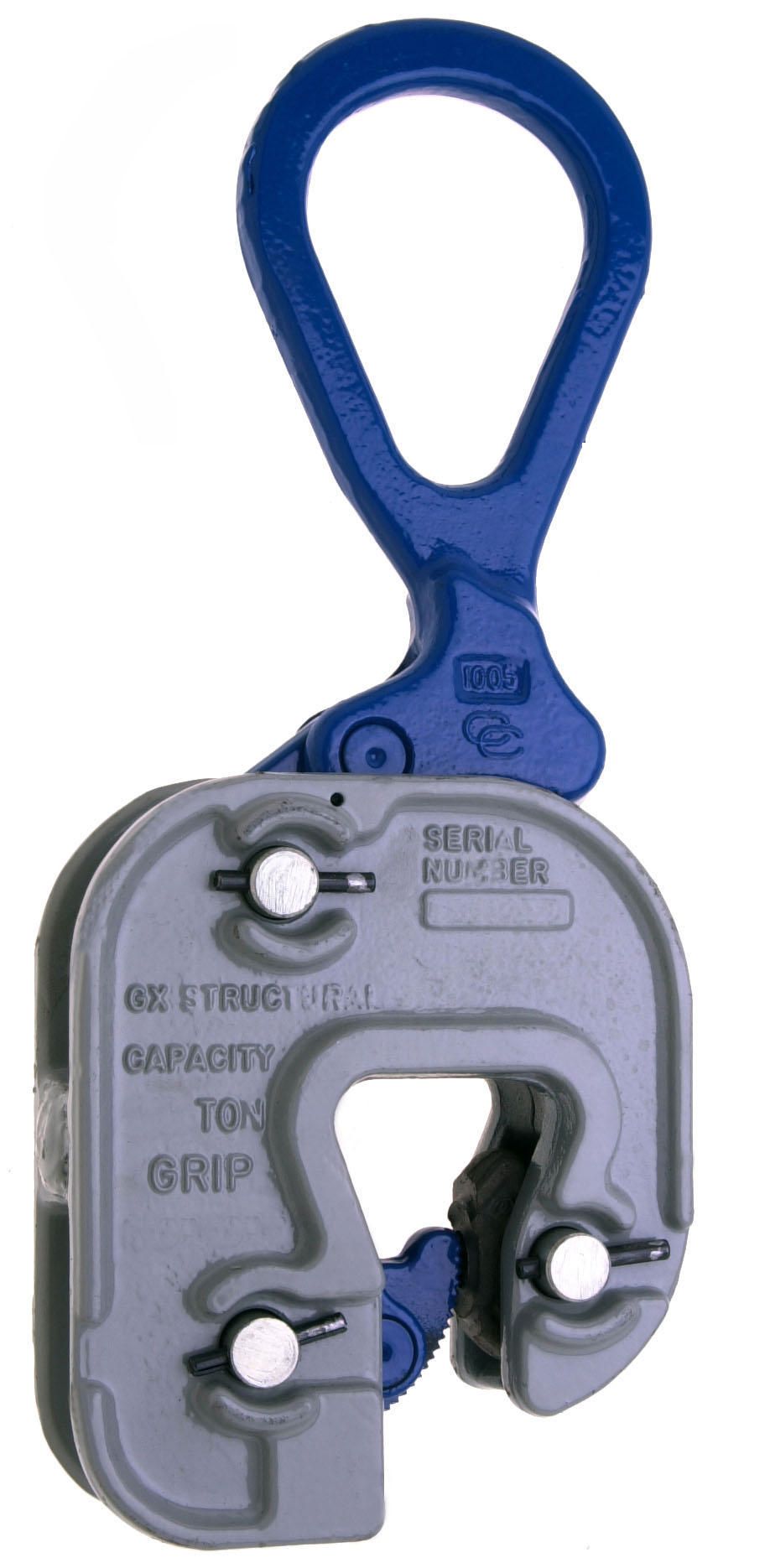

Campbell 6423100 GX Structural Short Leg Plate Clamp, 1/16"- 5/8" Grip, 1/2 ton WLL

Campbell 6423100 GX Structural Short Leg Plate Clamp, 1/16"- 5/8" Grip, 1/2 ton WLL

SKU : kpi263-6423100

MPN : 6423100

GTIN : 20418177330

Dropship

$1,298.41
$1,298.41
Sale Sold out
Shipping calculated at checkout.
