Features
  • Available in a 1/2, 1, and 2 Metric Ton Capacities
  • Can Be Used for Both Vertical and Horizontal to Vertical Lifting Through 180°
  • Drop Forged and Heat Treated Components, with Gripping Surfaces of Case Hardened Alloy Steel.
  • Exclusive Feature is a Patented Wear Indicator System. When Any of the Cam'S Straight Line, Convex Teeth Are Flattened Between Unique Wear Indicator Grooves, It is Time to Change the Cam.
  • Note: The Pad and Cam Should Be Replaced at the Same Time
  • Newly Designed "Cam Engaging Locking Lever" Keeps the Cam in Contact with the Plate. The Tension Arm and Spring Mechanism Facilitate Attaching and Removing the Clamp. These Clamps Will Not Lift Plate When in the "Lever Open" Position
  • Clamps Are 100% Proof Tested and Certificate of Test Supplied with Each Clamp
  • Minimum WLL of at Least 10% of the Maximum WLL
  • Warning: NEVER Tamper with a Clamps Tension Arm or Spring Mechanism During a Lift.
Specifications
  • UPC - 020418187032
  • Foreign Trade Code - 8205700090
  • Set - No
  • Packaging - Boxed
  • Weight Each (lb) - 10.50 lb
  • Weight - 10.5
  • A Dimension - 7-1/4
  • B Dimension - 12-1/8 in
  • C Dimension - 2-9/16 in
  • D Dimension - 3-5/16 in
  • E Dimension - 2-1/4 in
  • F Dimension - 4-7/8 in
  • Working Load Limit Metric Ton - 2 t
  • G Dimension - 3-1/2 in
  • H Dimension - 1-5/8 in
  • Grip Range - 1/16 to 7/8 in.
  • I Dimension - 5-15/16 in

Crescent

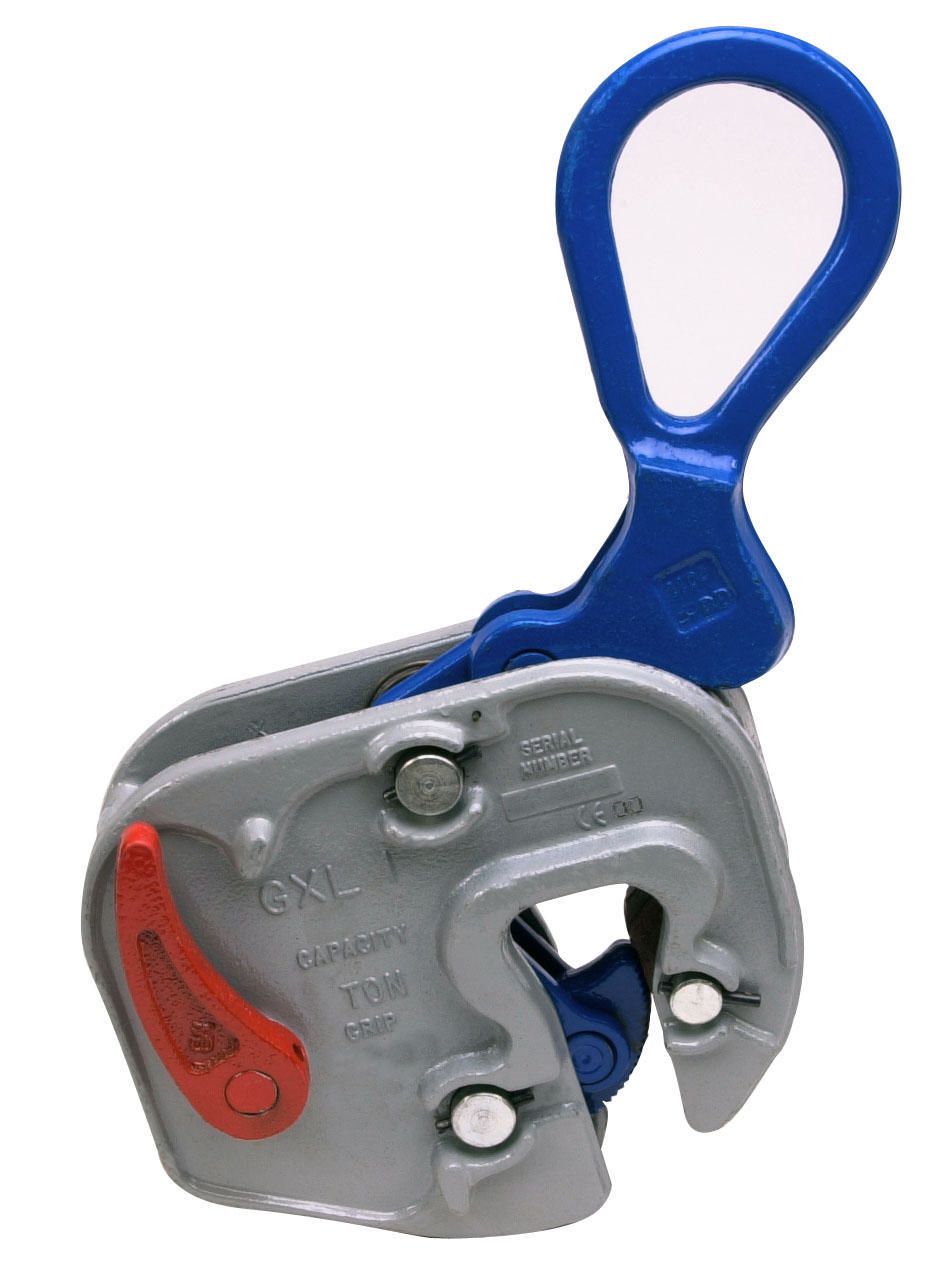

Campbell 6422002 GXL Plate Clamp, 1/16"- 7/8" Grip, 2 ton WLL

Campbell 6422002 GXL Plate Clamp, 1/16"- 7/8" Grip, 2 ton WLL

SKU : kpi263-6422002

MPN : 6422002

GTIN : 20418187032

Dropship

$2,522.97
