Features
  • Recommended for Turning Plates From Horizontal to Vertical As Well As Through A 180° Arc
  • The Convex, Serrated Cam Swivels on A Ball Joint So That the Area of Cam Engagement Increases As Load Increases
  • Drop Forged Body and Shackle
  • Clamps Are 100% Proof Tested and Certificate of Test Supplied with Each Clamp
  • Minimum WLL of at Least 10% of the Maximum WLL
  • Note: Clamp Features a Torque Limiting Handle to Prevent Overtightening. Screw Needs to Be Hand Tight Only! Do Not Overtighten.
Specifications
  • UPC - 020418096419
  • Foreign Trade Code - 8205700090
  • Set - No
  • Packaging - Boxed
  • Weight Each (lb) - 39.00 lb
  • Weight - 40
  • A Dimension - 10
  • B Dimension - 14-1/4 in
  • C Dimension - 8-1/4 in
  • D Dimension - 3-1/4 in
  • E Dimension - 4-1/2 in
  • F Dimension - 1-1/8 in
  • Working Load Limit Metric Ton - 6 t
  • P Dimension - 2-1/4 in
  • H Dimension - 3 in
  • J Dimension - 4-1/2 in
  • O Dimension - 12 in
  • Grip Range - 0 to 3 in.
  • Model Number - SAC-6

Crescent

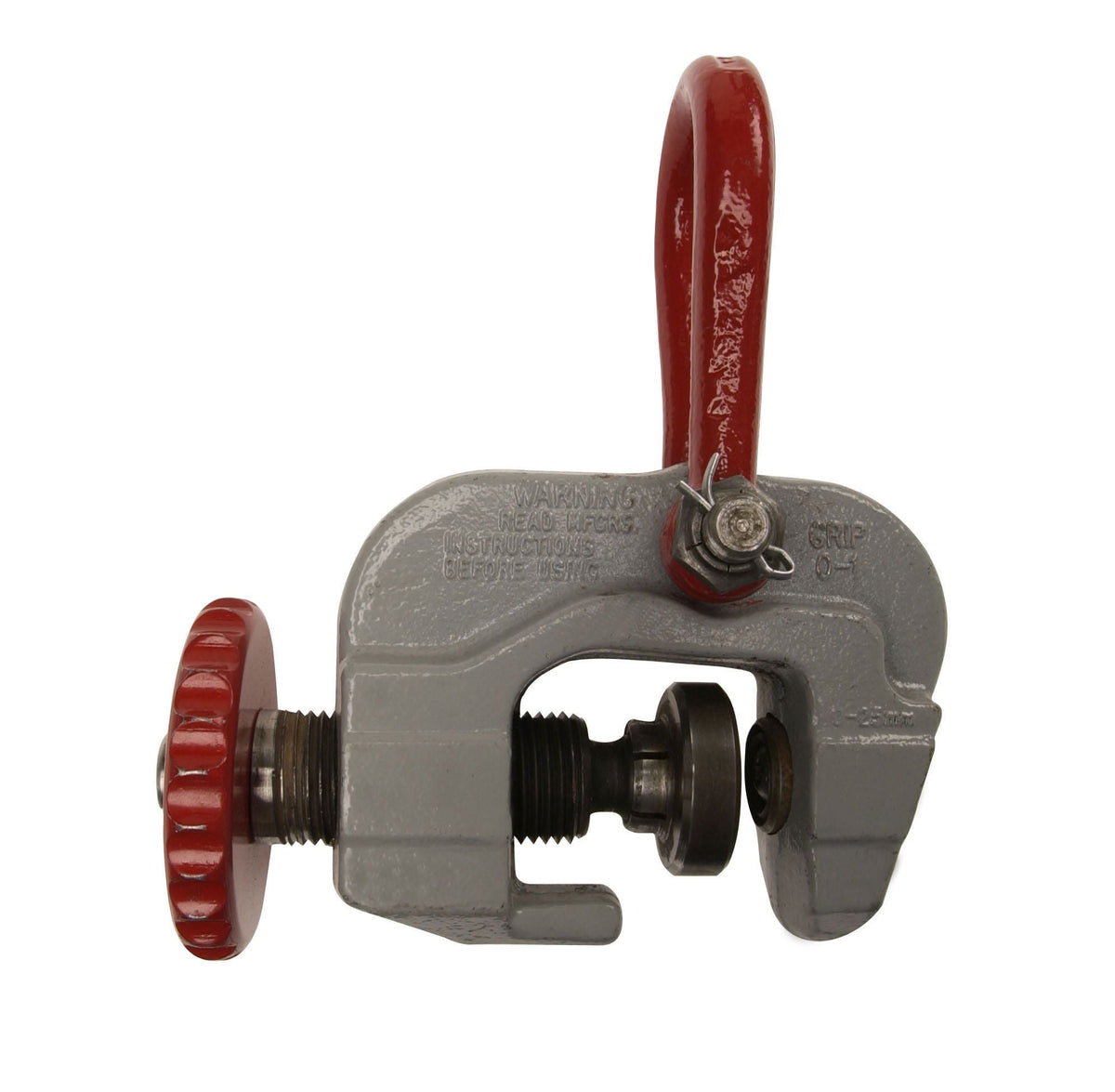

Campbell 6421002 SAC (Screw Adjusted Cam) Plate Clamp, 0" - 3" Grip, 6 ton WLL

Campbell 6421002 SAC (Screw Adjusted Cam) Plate Clamp, 0" - 3" Grip, 6 ton WLL

SKU : kpi263-6421002

MPN : 6421002

GTIN : 20418096419

Dropship

$5,198.13
$5,198.13
