Features
  • Shackle Bodies Are Drop-Forged Carbon Steel
  • Self Colored (Painted Blue)
  • C-419-S Shackles Meet the Design Requirements of Federal Specification RR-C-271, Type IVA, Grade A, Class 2
  • Working Load Limit, Size, Manufacture Name, Date Code and USA Permanently Marked on Each Shackle
  • Statistically Tested for Impact Resistance, Tensile Strength, Hardness, Ductility and Fatigue
  • 419 Series Shackles Meet or Exceed All Manufacturing Requirements of the ASME B30.26 ”Rigging Hardware”. These Include the Material Ductility Requirement (Section 26-1.1.2), the Design Factor Requirement (Section 26.1.2), the Identification Requirement (Section 26-1.5.1), and the Effective Temperature Range (Section 26-1.6.1). The Shackles Can Be Proof Tested in Accordance with Section 26-1.4 Upon Request
  • Certification Available Upon Request
  • 6 to 1 Design Factor
  • Pins and Bolts Are Heat-Treated and Made of Alloy Steel
  • DO NOT EXCEED THE WORKING LOAD LIMIT
Specifications
  • UPC - 020418076381
  • Foreign Trade Code - 7326908688
  • Set - No
  • Packaging - Boxed
  • Weight Each (lb) - 10.00 lb
  • Weight Per 100 Pieces (lb) - 1000
  • B Dimension - 1-3/8 in
  • C Dimension - 4-1/2 in
  • D Dimension - 2 in
  • E Dimension - 3-1/4 in
  • F Dimension - 3 in
  • Working Load Limit Short Ton - 12 T

Crescent

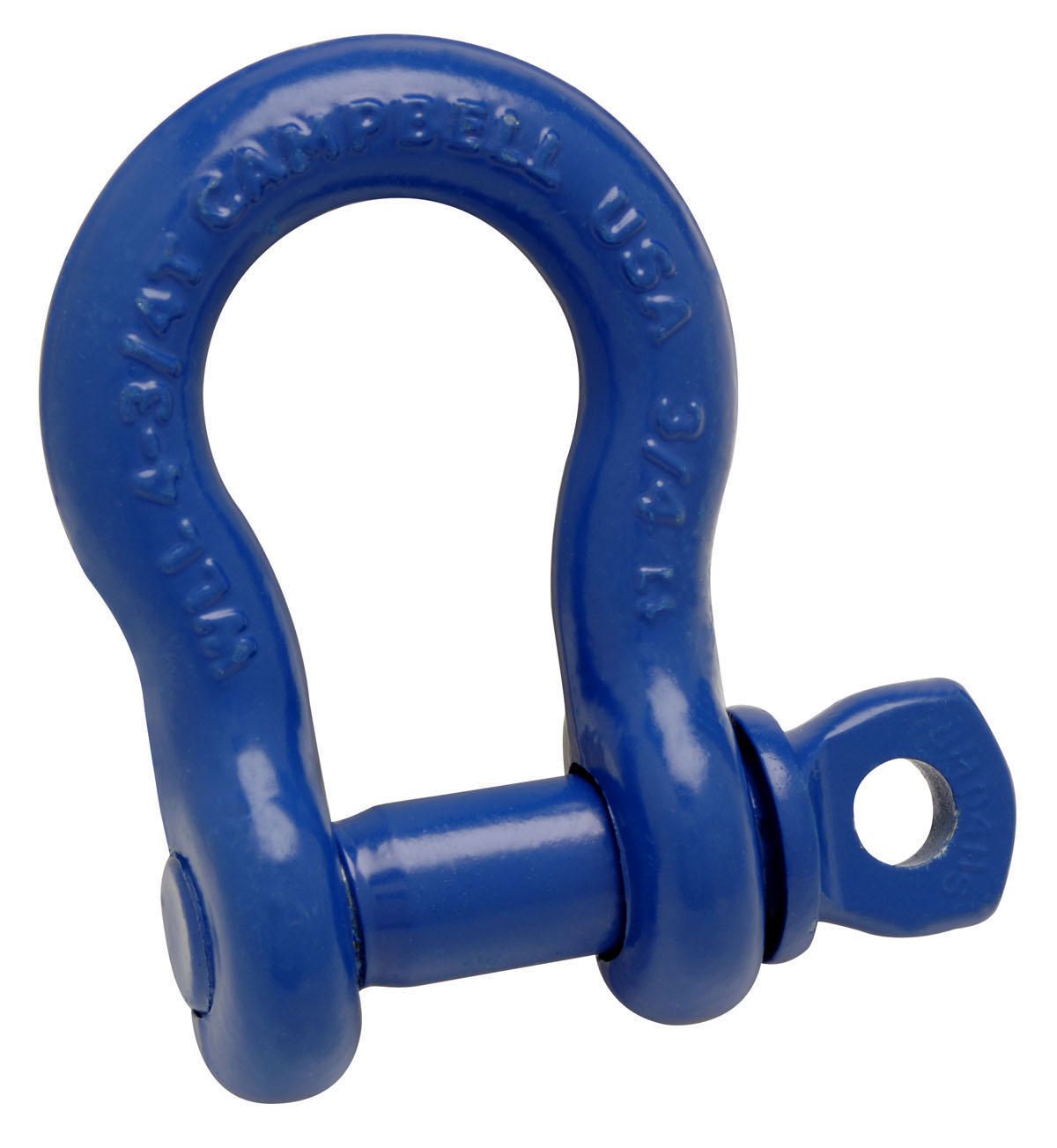

Campbell 5412005 1-1/4" Anchor Shackle, Screw Pin, Forged Carbon Steel, Painted Blue

Campbell 5412005 1-1/4" Anchor Shackle, Screw Pin, Forged Carbon Steel, Painted Blue

SKU : kpi263-5412005

MPN : 5412005

GTIN : 20418076381

Dropship

$243.55
$243.55
Sale Sold out
Shipping calculated at checkout.
