The Bosch RH540S Spline 1-9/16 In. Combination Hammer provides maximum productivity in all day drilling and chiseling applications. Equipped with 6.1 Ft.-Lbs. of impact energy (E.P.T.A.). The RH540S provides up to 39% more impact energy versus the previous model for best-in-class performance. The RH540S also provides variable speed. This delivers better bit control during application start-up.

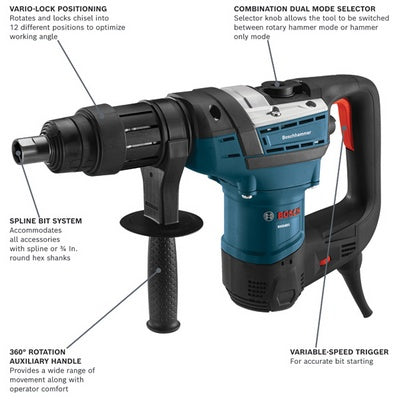

  • Spline bit system — accommodates all accessories with spline or 3/4 In. round hex shanks

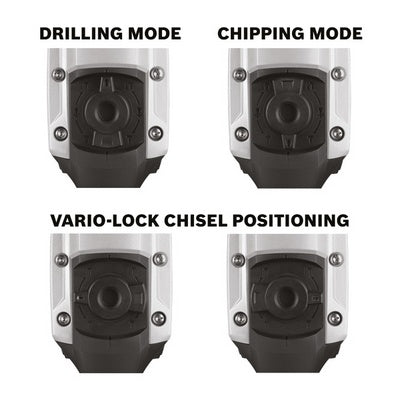

  • Combination dual mode selector — selector knob allows the tool to be switched between rotary hammer mode or hammer only mode
  • Vario-Lock positioning — rotates and locks chisel into 12 different positions to optimize working angle
  • Innovative service modules — designed so a qualified service technician can quickly replace the brushes and cord
  • 360° Auxiliary handle — provides a wide range of movement along with operator comfort
  • Integral clutch — disengages torque transmission if the bit gets into a bind situation
  • Grounded design, CSA listed, complies to OSHA
  • 2 modes of operation - rotary hammer or hammer-only
  • (1) RH540S Spline 1-9/16 In. Combination Hammer
  • (1) Auxiliary Handle
  • (1) Grease Tube
  • (1) Carrying Case

Additional Information

Cord Length8 ft
No Load RPM170-340
Service Baretool Numbers3611B69110
Weight11.3720  kg
Width152  mm
Height419  mm
Length628.650  mm
Material StatusActive
Date of Valid Distribution Status20220103
Country of OriginChina
Chuck Size1-9/16 in
Impact Energy/EPTA (ft. lbs)6.1 Ft.-Lbs. EPTA
No Load BPM1,500-2,900
Optimal Concrete Capacity Range1/2" - 1-3/8"


Bosch RH540S 1-9/16" Spline Rotary Hammer

Bosch RH540S 1-9/16" Spline Rotary Hammer

GTIN : 000346456158


SKU : kpt010-RH540S


Regular price $459.00
Regular price Sale price $459.00
