  • 1 Template Guide
  • 1-3/8 In. outer diameter
  • 1-19/64 In. inner diameter
  • Approximately 7/16 In. protrusion below subbase
  • Primary application: mortising for 5/8 In. radius hinge
  • The cut diameter of router bit used with the template guide must be at least 1/16 In. less than the inner diameter of template guidepoint
  • Too large to work with PR009 subbase for palm router fixed base PR001
  • Compatible with optional RA1129 Template Guide Adapter Set for easy change of Bosch quick-release template guides and common threaded template guides
  • Also for use with 1613EVS and 1614EVS routers

Additional Information

ManufacturerBosch
Weight0.0360  kg
Width101.600  mm
Height22  mm
Length152  mm
Material StatusActive
Date of Valid Distribution Status20211228
Country of OriginChina
AttachmentsBosch 83038 Bosch 83039
Used on Model No.Bosch 1613, 1613EVS, 1614, 1614EVS, RA1126 Adapter (used with 1617-, 1618-, 1619-, and MR23EVS- Series Routers), PR011 Plunge Base for Palm Routers. Too large to work with PR009 Round Subbase for PR011 Fixed Base for Palm Routers
Size1-3/8" OD (Outside Diameter), 1-19/64" ID (Inside Diameter), 7/16" (approximate) protrusion beyond bottom of router subbase

Bosch

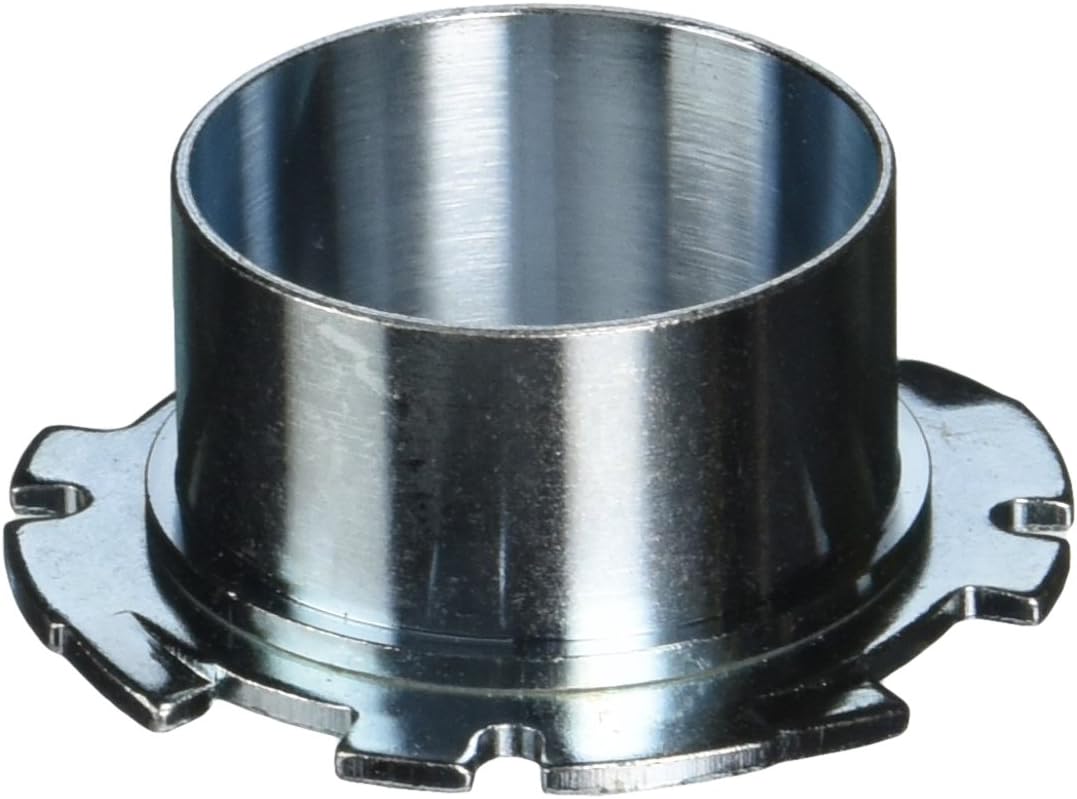

Bosch RA1121 Quick-Release Templet Guide (1-3/8" Od) For 5/8" Hinge Radius

Bosch RA1121 Quick-Release Templet Guide (1-3/8" Od) For 5/8" Hinge Radius

GTIN : 000346256635

MPN :

SKU : kpt010-RA1121

Drop-Ship

Regular price $14.59
Regular price Sale price $14.59
Sale Sold out
Shipping calculated at checkout.
