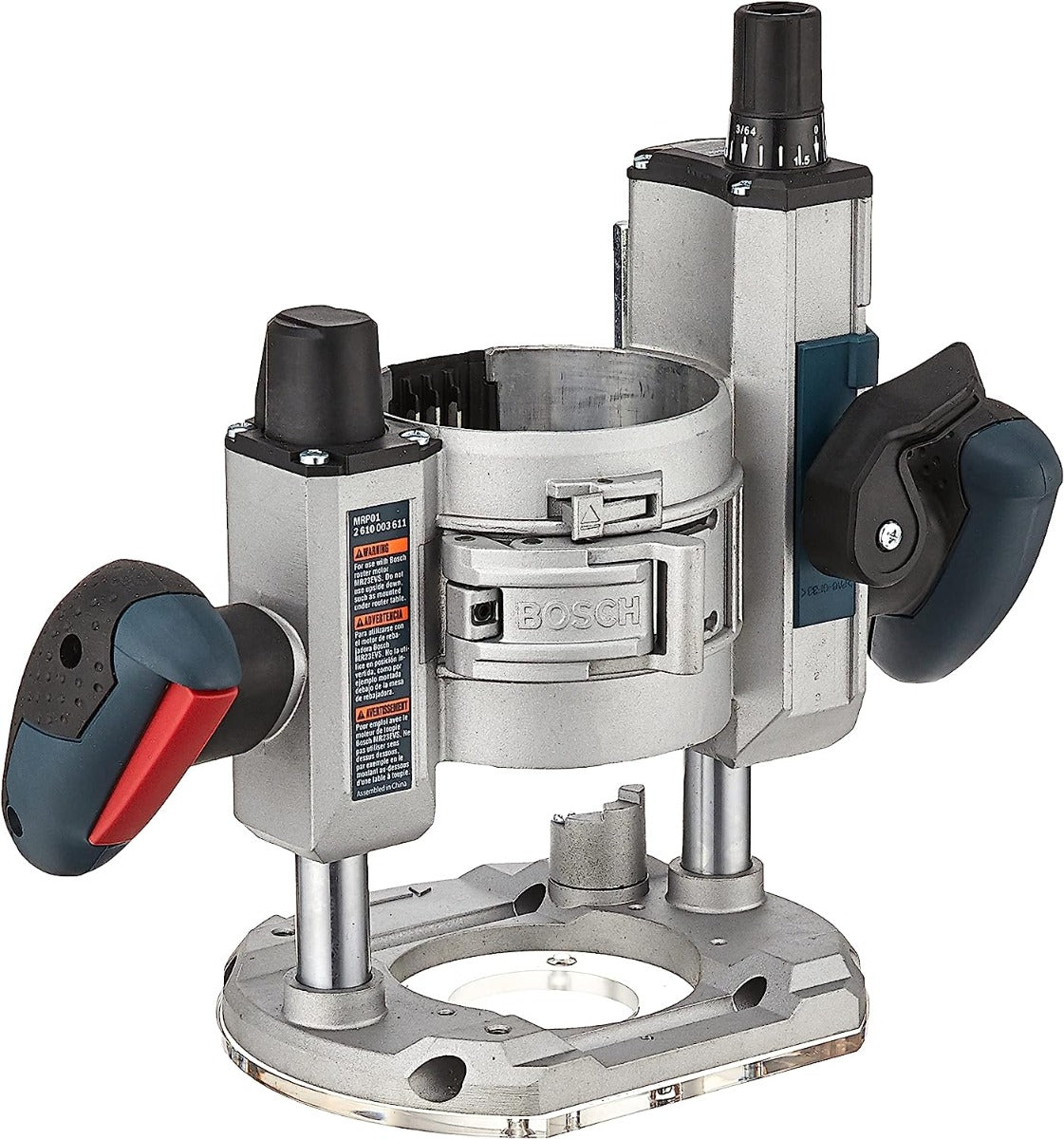

The Bosch MRP01plunge base is designed for use with the Bosch MR23-series routers (MRF23EVS, MRP23EVS and MRC23EVSK) and greatly expands the router's versatility. Most importantly, it features the Bosch Trigger Control system that is the first trigger control system on a modular router system. The unit also delivers very smooth plunge action and features and spring-lock plunge control lever conveniently located for easy usage.The depth adjustment system includes a multi-step adjustable depth stop turret plus the Bosch Afterlock microfine depth adjustment fast, accurate bit depth setting. This base allows a plunging depth of up to 2-5/16 In. The Precision Centering Design allows the subbase to be centered around the bit, which makes it easy to keep the bit on intended cut line when using jigs, templets, dovetail fixtures and similar guidance devices. The MRP01 plunge base accepts several different Bosch routing attachments, including the RA1126 Tool-free Templet Guide Adapter, RA1054 Deluxe Router Guide and RA1177AT Dust Hood Kit.

  • 1 Plunge Base
  • Afterlock microfine depth adjustment for easy and precise bit depth adjustment at any plunge setting
  • Smooth plunge action, spring-lock plunge lever and depth rod for easy and precise plunge routing
  • Wide 3-5/16 In. base opening and 2 In. sub-base opening accepts larger bits
  • Adjustable turret stop - makes it easy to set an cumulative depth for multiple-pass operations
  • Contoured soft-grip handles - provides enhanced control and comfort
  • Plunge-release lever - conveniently located to allow maximum control
  • Precision centering design - makes it easy to keep bit on intended cutline when using jigs, templates, dovetail fixtures and similar guidance devices
  • Compatible with optional RA1129 Template Guide Adapter Set – for easy change of Bosch quick-release template guides and common threaded template guides
  • Plunge base with fine adjustment knob and on/off switch located in the handle
  • Trigger control system conveniently located in handle for enhanced control

Additional Information

Weight3.4970  kg
Width222  mm
Height323.850  mm
Length355.600  mm
Material StatusActive
Date of Valid Distribution Status20220103
Country of OriginChina
AttachmentsBosch RA1175 Bosch RA1177AT Bosch RA1126 Bosch 2610956312 Bosch RA1151 Bosch RA1054
Used on Model No.Bosch MR23EVS Router Motor
Fits Tool ModelMR23EVS Router Motor
Subbase Opening2"


Bosch MRP01 Router Plunge Base For Mr23 Series

Bosch MRP01 Router Plunge Base For Mr23 Series

GTIN : 000346397383


SKU : kpt010-MRP01


Regular price $139.00
Regular price Sale price $139.00
