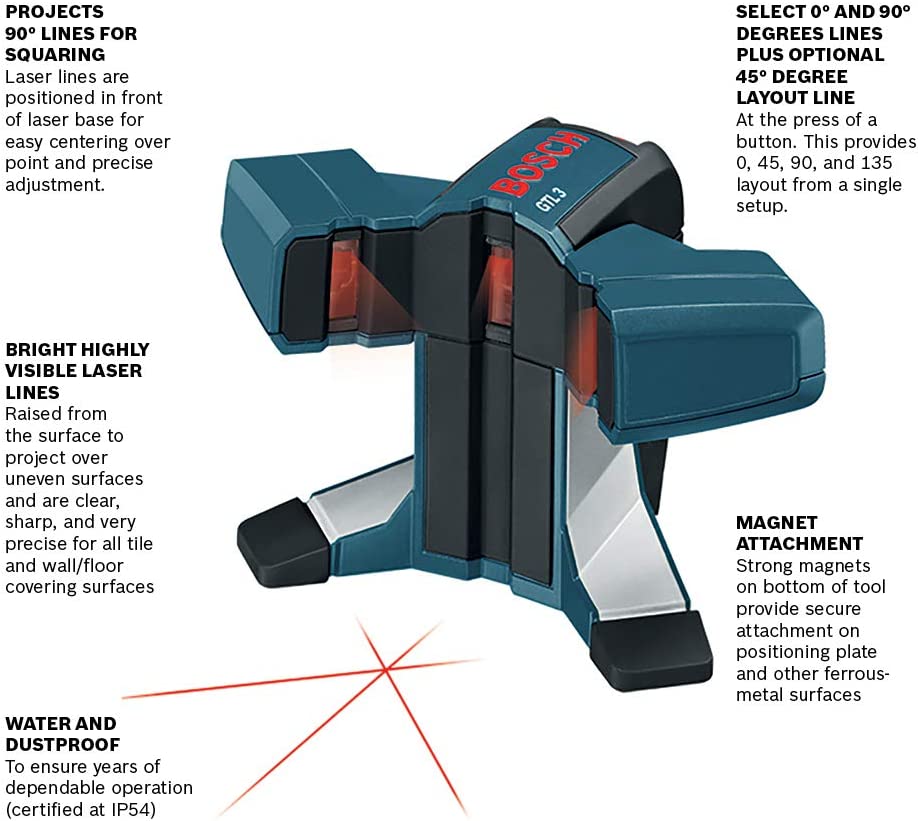

The Bosch GTL3 Wall/Floor Covering Laser is designed to make tile installation and other installation easier and faster. Bosch asked flooring contractors how a laser layout tool could make their work easier, and the GTL3 is the solution. It generates layout lines at 0° and 90° from a single setup. The highly visible laser beams are elevated to go past several objects, and the laser has a strong magnet and a steel positioning plate for maximum versatility. Select 0° and 90° degrees lines plus optional 45° degree layout line at the press of a button. This layout laser provides 0°, 45°, 90° and 135° layout lines from a single setup point.
Features- Ideal for wall/floor covering layout designed to tile installation and other installation easier and faster
- 0° and 90° layout lines helps to layout tile and to make squaring a room easier

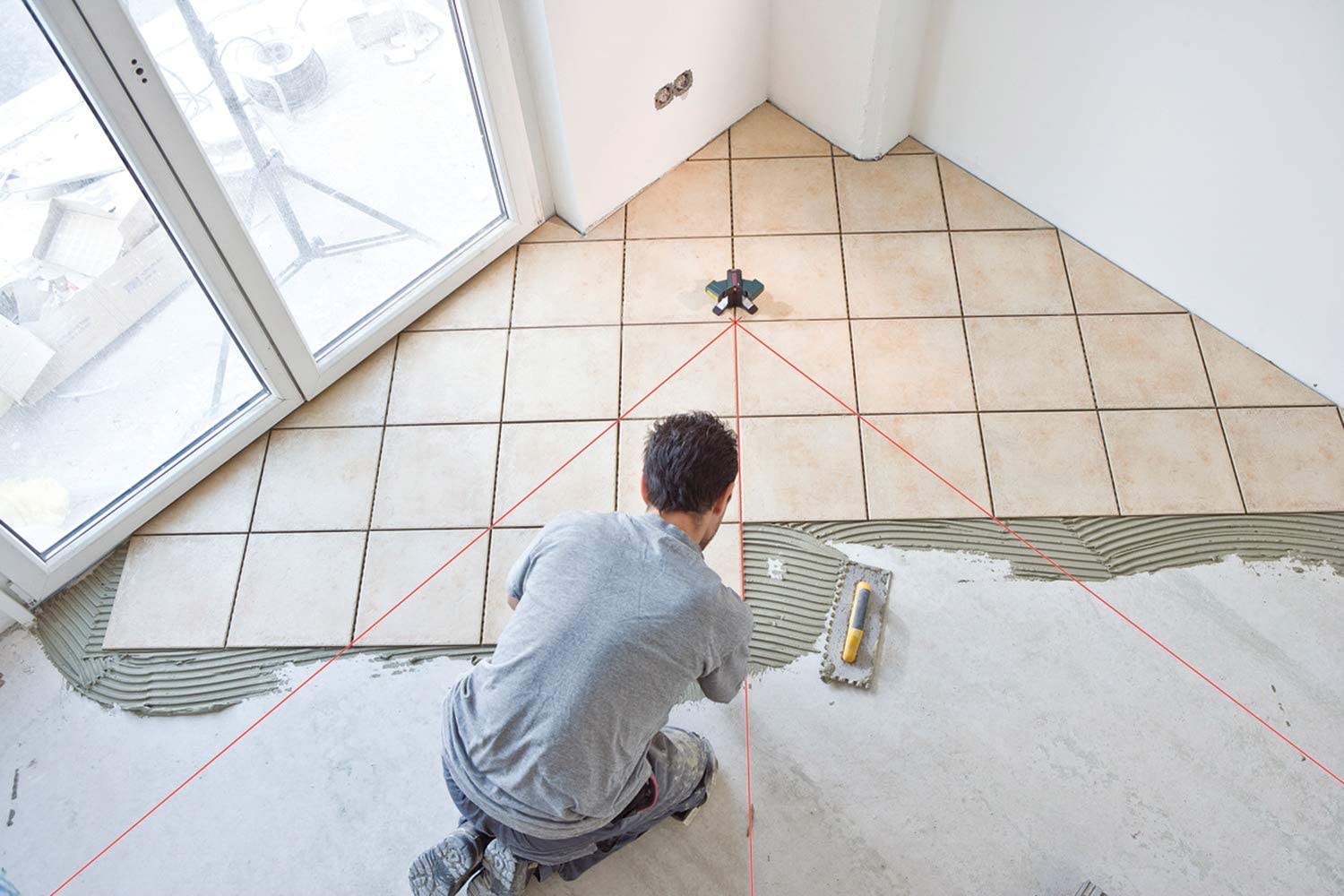

- 45° beam provides an additional guide and is made to plan orientation for diagonal layouts
- Offset pivot point sets a clear starting point in front of laser base for easy centering over point and precise adjustment
- Elevated beams allows laser line to travel past uneven surfaces or obstructions
- Powerful magnets on the base provide secure attachment on the included positioning plate, as well as on other ferrous-metal surfaces
- Single-button operation select 0° and 90° degrees lines plus optional 45° degree layout line at the press of a button
- Versatile layout options provides 0°, 45°, 90° and 135° layout lines from a single setup point

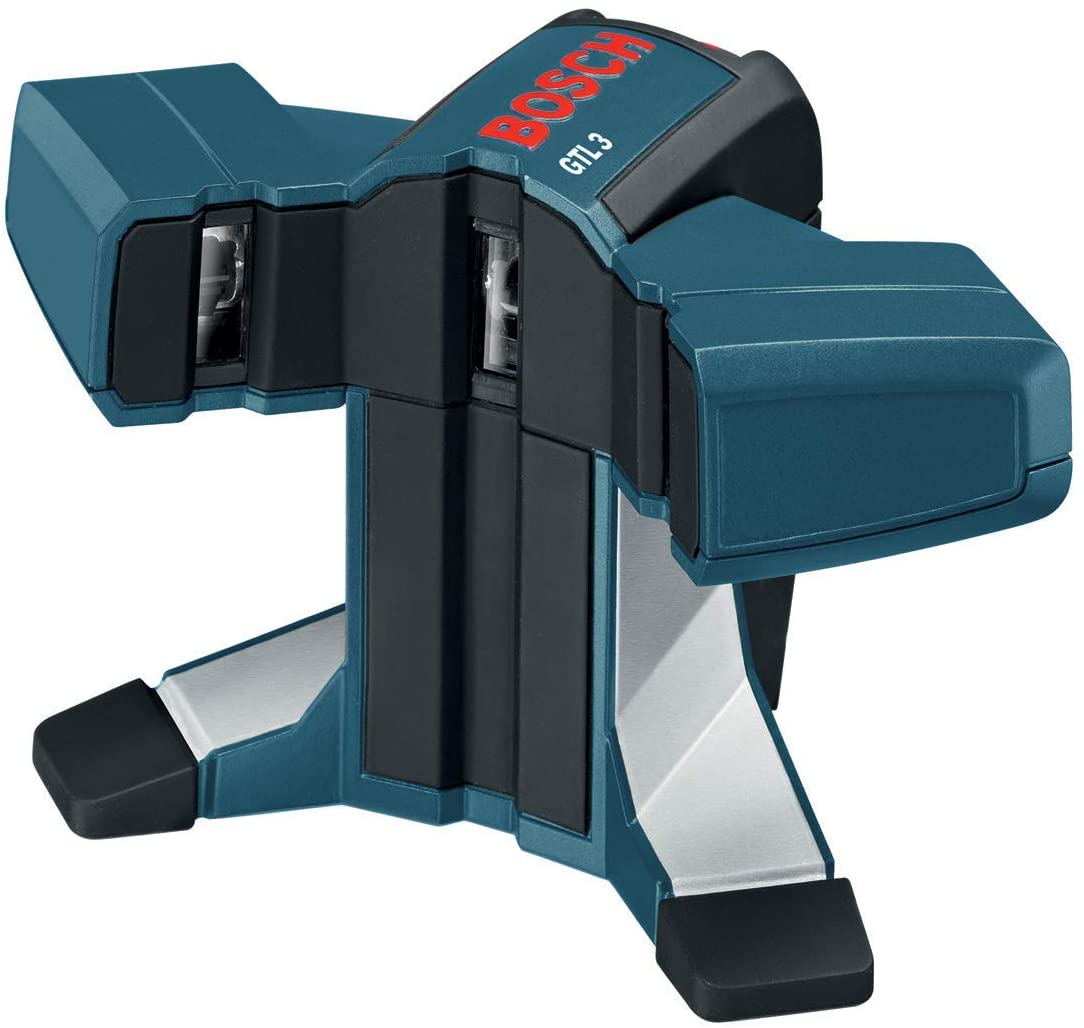

- (1) GTL3 Wall/Floor Covering Laser

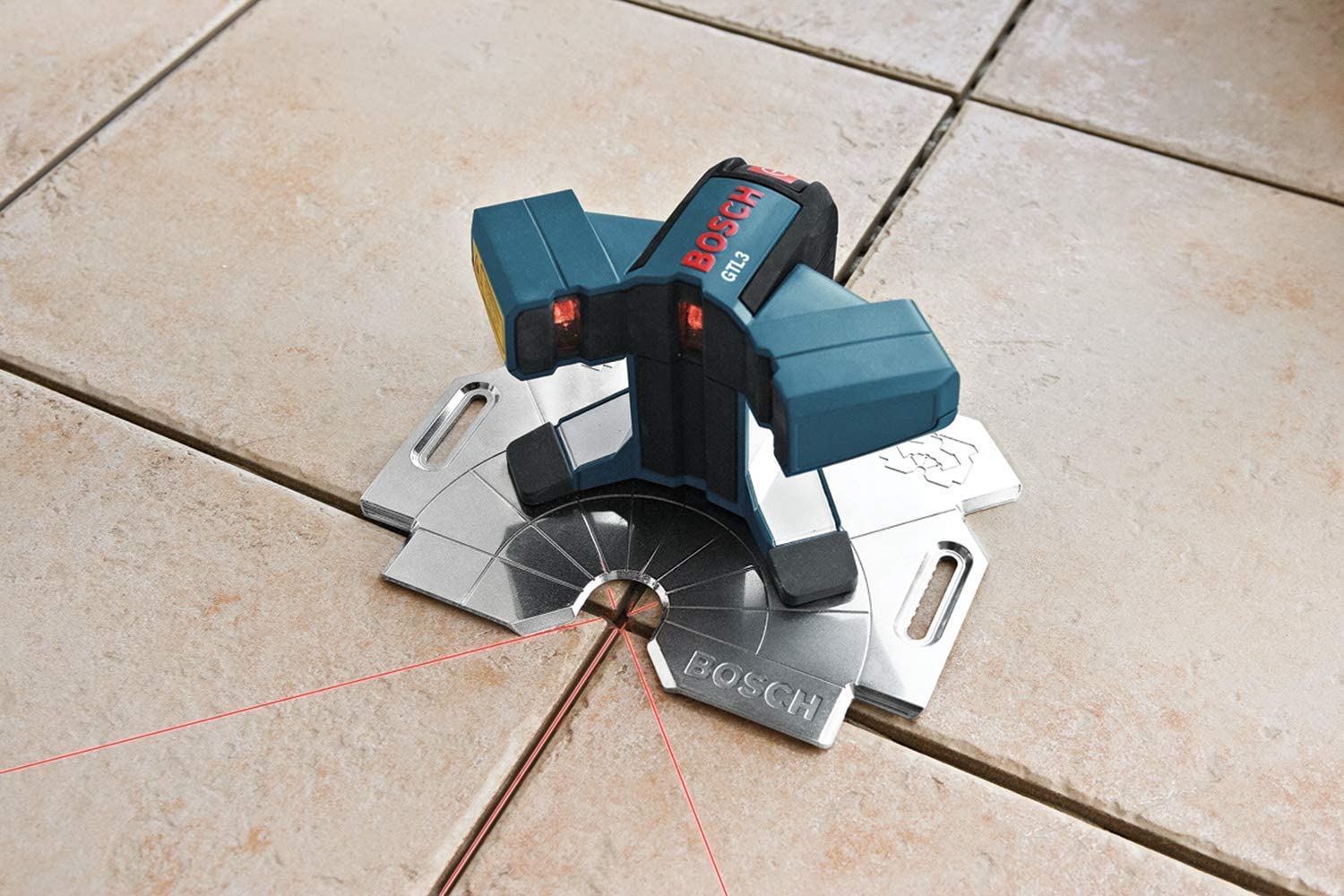

- (1) Versatile Steel Positioning Plate
- (1) Laser Target
- (4) AA Batteries
- (1) Pouch
Additional Information
ManufacturerBosch
Service Baretool Numbers3601K15210
Weight1.1570 kg
Width234.950 mm
Height146 mm
Length330 mm
Material StatusActive
Date of Valid Distribution Status20220103
Country of OriginChina
AttachmentsBosch DLA001 Bosch DLA002
AccuracyUp to ±1/16-in per 20-ft (±1/8-in per 20-ft between 45° and 90° lines)
RangeUp to 65-ft.
Laser DiodeClass II 635 nm, = 1 mW
Leveling TypeManual
Number of Beams3
