(1) CM10GD 10 In. miter saw, (1) 10 In. 60-tooth carbide-tipped blade, (1) wrench, (1) work clamp, (1) dust bag, (1) vacuum adapter/elbow

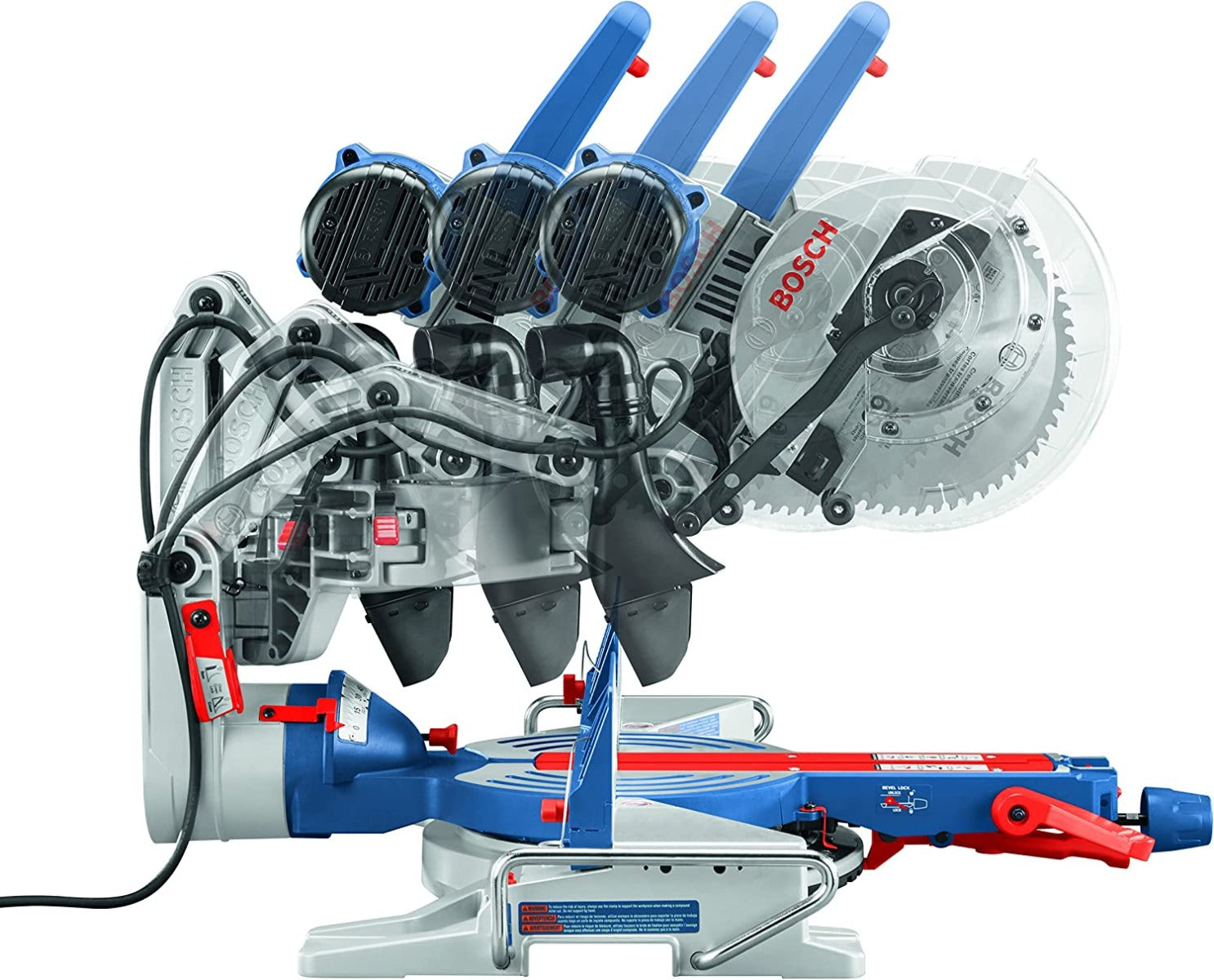

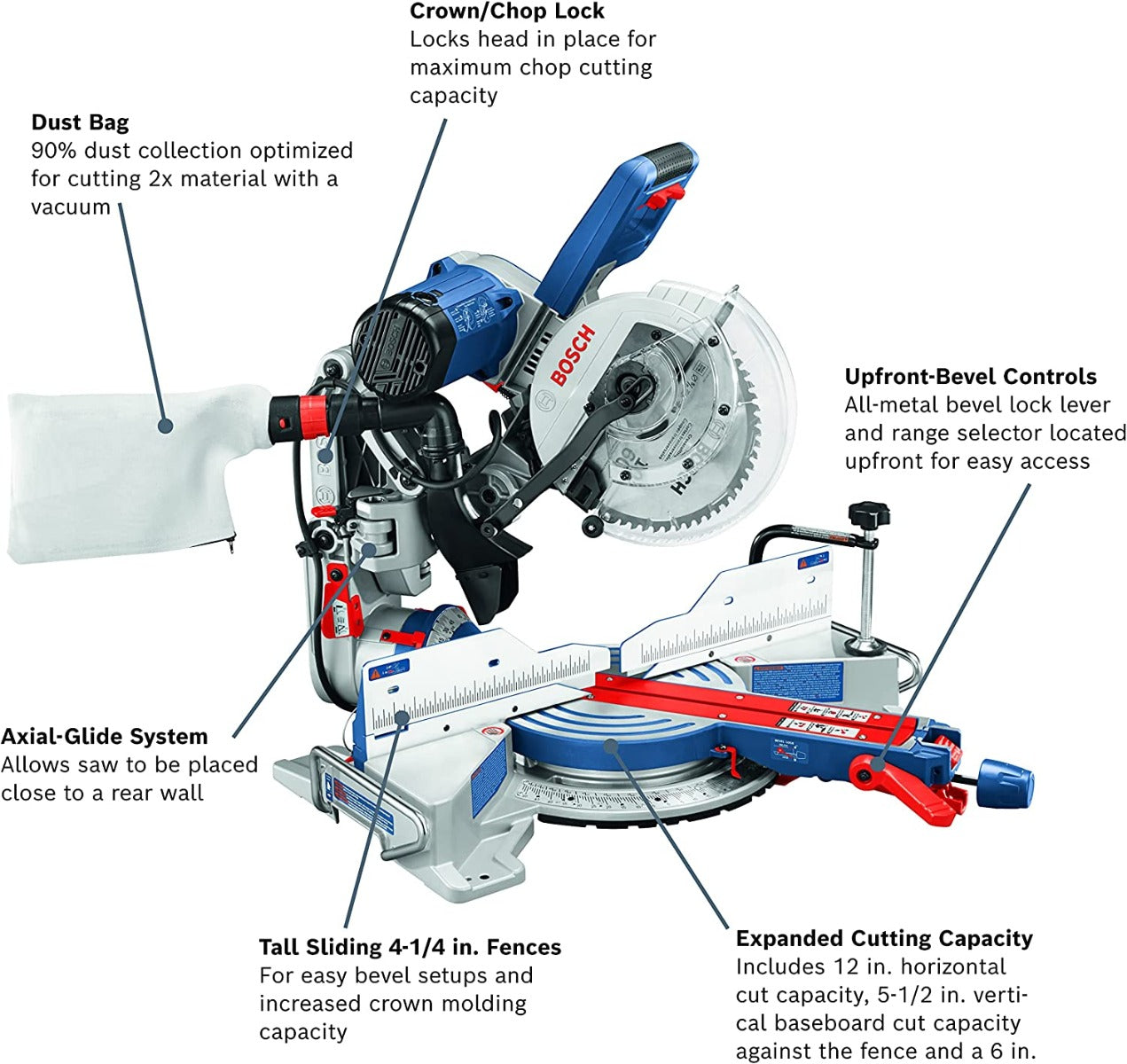

Axial-Glide System offers more durable precision than side saw rail systems

Powerful 15 Amp motor delivers 4,800 no-load RPM for professional cutting capacity

Wide cutting capacities includes 12 In. horizontal cut capacity, 5-1/2 In. vertical baseboard cut capacity against the fence and a 6 In. crown cut capacity nested against the fence (45° spring)

Bevel lock lever and range selector are located upfront for quick, easy settings without having to reach around behind saw

Tall sliding 4-1/4 In. fences for easy bevel set ups and increased crown and base molding capacity

Wide 47° left/47° right bevel capacity with detents at 0°, 33.9°, 45° left/right for easy setting of the most-common bevel angles

Adjustable miter detents designed to be accurate and durable, and includes detents at 0°, 15°, 31.6°, 22.5°, 45°, 60°

Push-button miter detent override provides easy-to-access thumb actuated control right up front for fine miter angle adjustment

Large easy-to-read uniform bevel and stainless steel miter scales in degrees plus roof pitch angles for more convenient cut setup

Category-best 90% dust collection optimized for cutting 2x material with a vacuum

Ergonomic ambidextrous trigger handle with soft grip provides comfort for all-day use and a large form-fitting ergonomic handle

Articulated hinge arms reduce the saws front-to-back footprint by up to 10 In. compared to slide saws with similar capacities

Additional Information

ManufacturerBosch
Amperage15
Bevel Angle Range47° left and 47° right
Blade Diameter10
Blade Size10"
Cord Length6 ft
Max. Motor HP
No Load RPM4,800
Service Baretool Numbers3601M27010, 3601M27011
Weight36.2870  kg
Width546  mm
Height615.950  mm
Length755.650  mm
Voltage120V
Spindle LockYes
Material StatusActive
Date of Valid Distribution Status20220103
Country of OriginChina
AttachmentsBosch VAC010 Bosch LS010 Bosch VAC009 Bosch VAC024 Bosch VAC006 Bosch VH1635A Bosch VH1022 Bosch GTA3800 Bosch MS1238 Bosch T4B Bosch MS1234 Bosch VAC021 Bosch VAC007 Bosch VAC008 Bosch VH1622A Bosch VH1635 Bosch MS1233 Bosch VAC002 Bosch VAC005 Bosch VAC020 Bosch VAC025 Bosch VH1035
Maximum RPM - No Load4800
Preset Bevel Angle Detents0° & Left / Right 22.5° & 45°
Saw DriveBelt Drive
Blades Included
Case TypeNo Case Included
Dust CollectionYes
Electric Motor BrakeYes
External Motor Brush AccessYes

Bosch

Bosch CM10GD 120V Dual-Bevel Glide Miter Saw

Bosch CM10GD 120V Dual-Bevel Glide Miter Saw

GTIN : 000346452716

MPN :

SKU : kpt010-CM10GD

Out of stock

Get it by Fri, Oct 24 - Wed, Oct 29

Regular price $629.00
Regular price Sale price $629.00
Sale Sold out
Shipping calculated at checkout.
