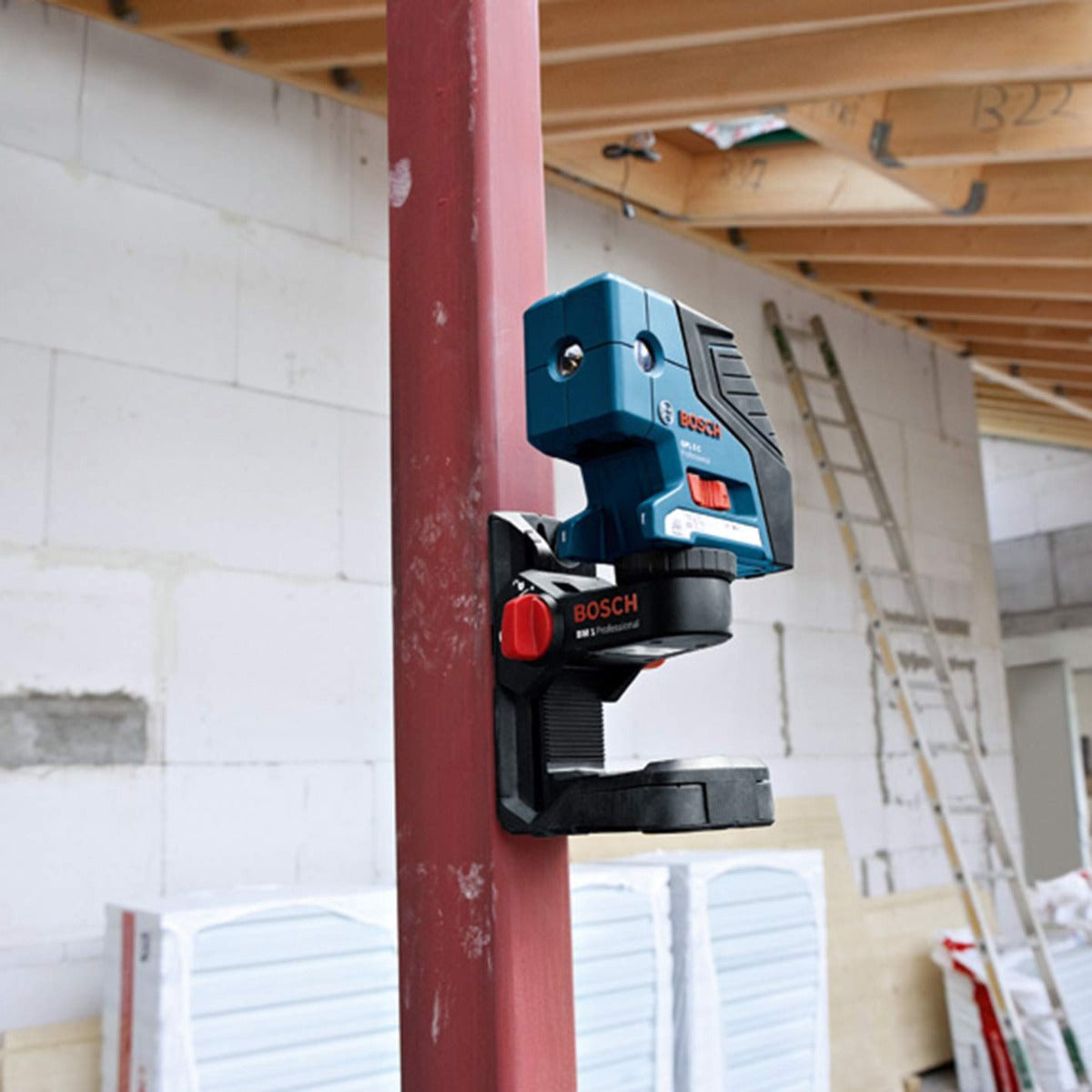

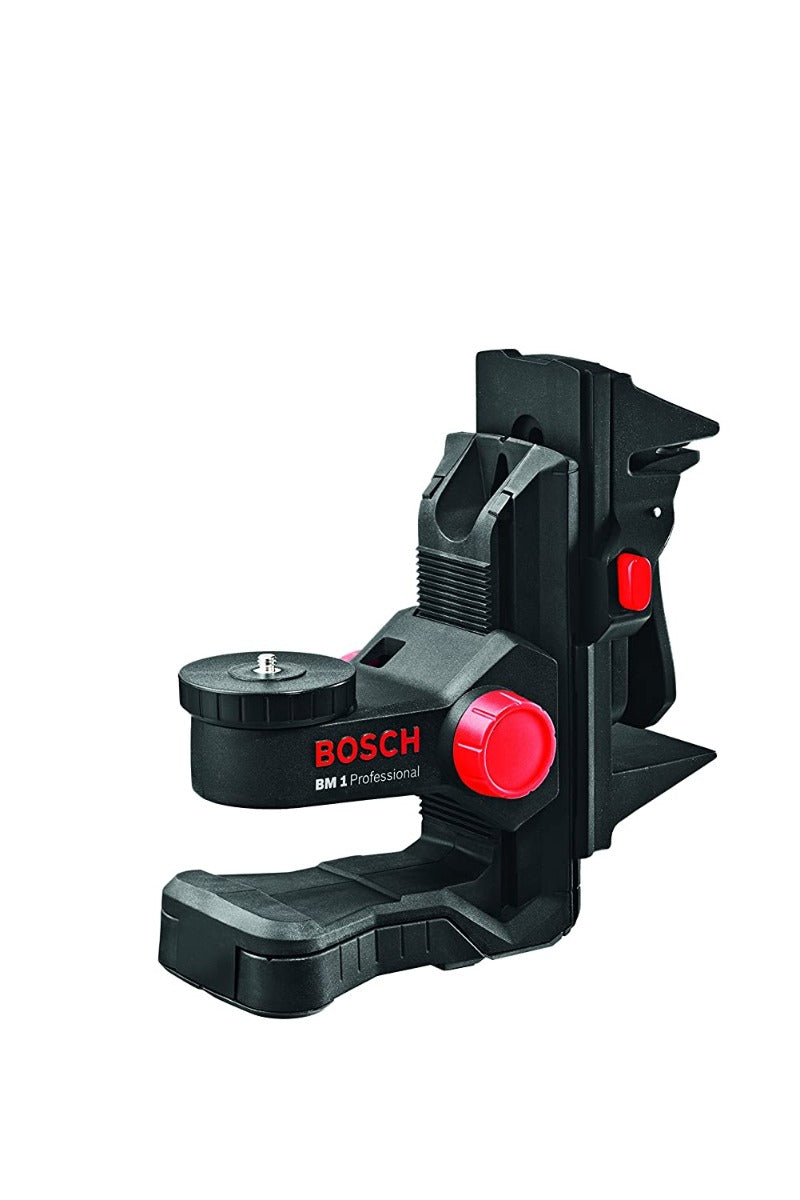

The Bosch BM 1 positioning device features a microfine height-adjustment system for quick horizontal level adjustment, as well as the versatility to work with a variety of levels, due to its 1/4 In.-20 mounting screw. The microfine adjustment system includes a knob to adjust the horizontal line height while mounted, which eliminates the user from having to remount if the tool is not at correct level. The device features very strong magnets for mounting to metal surfaces. It has other mounting systems, such as slots for screws or nails, clip attachment for ceiling grids and raceways for optional straps. The mount also has retractable feet, so that it is freestanding to use as a mini tripod. It also has two different threaded mounts on the bottom (1/4 In-20 and 5/8 In-11). This gives it the versatility to be used with standard tripod or pole mounts.

Features
  • Microfine height-adjustment system – provides quick adjustment and secure locking of the working height
  • Strong magnets – allows for quick positioning to metal surfaces
  • Threaded mounts (1/4-In. x 20 and 5/8 In. x 11) on bottom – affords flexibility, allowing attachment to standard tripod or pole mounts
  • Retractable feet for freestanding use – allows use as a mini tripod
  • Multimounting system – features strong magnets, 5/8 In.-11 and 1/4 In.-20 thread, slots for screws or nails, and raceways for optional straps

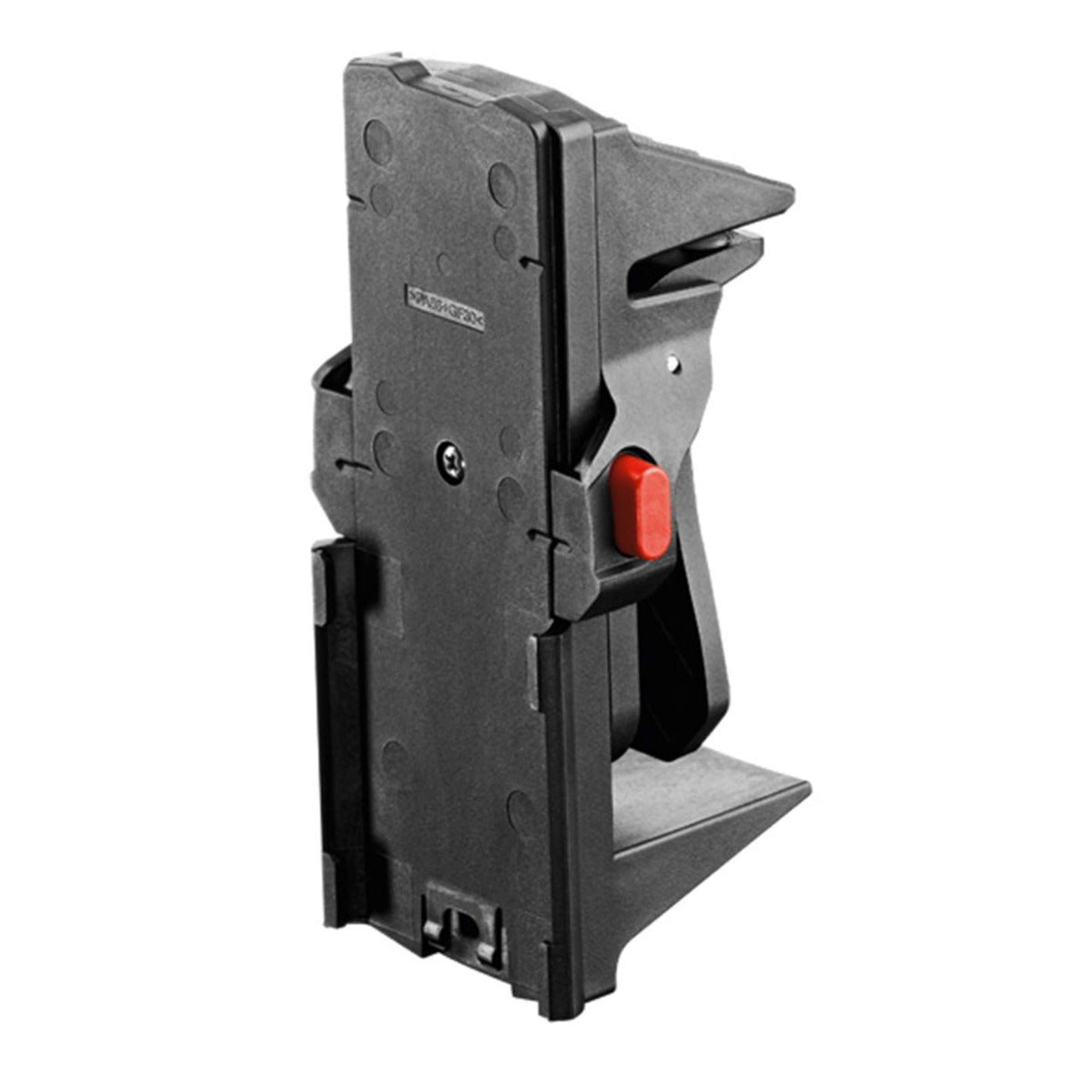

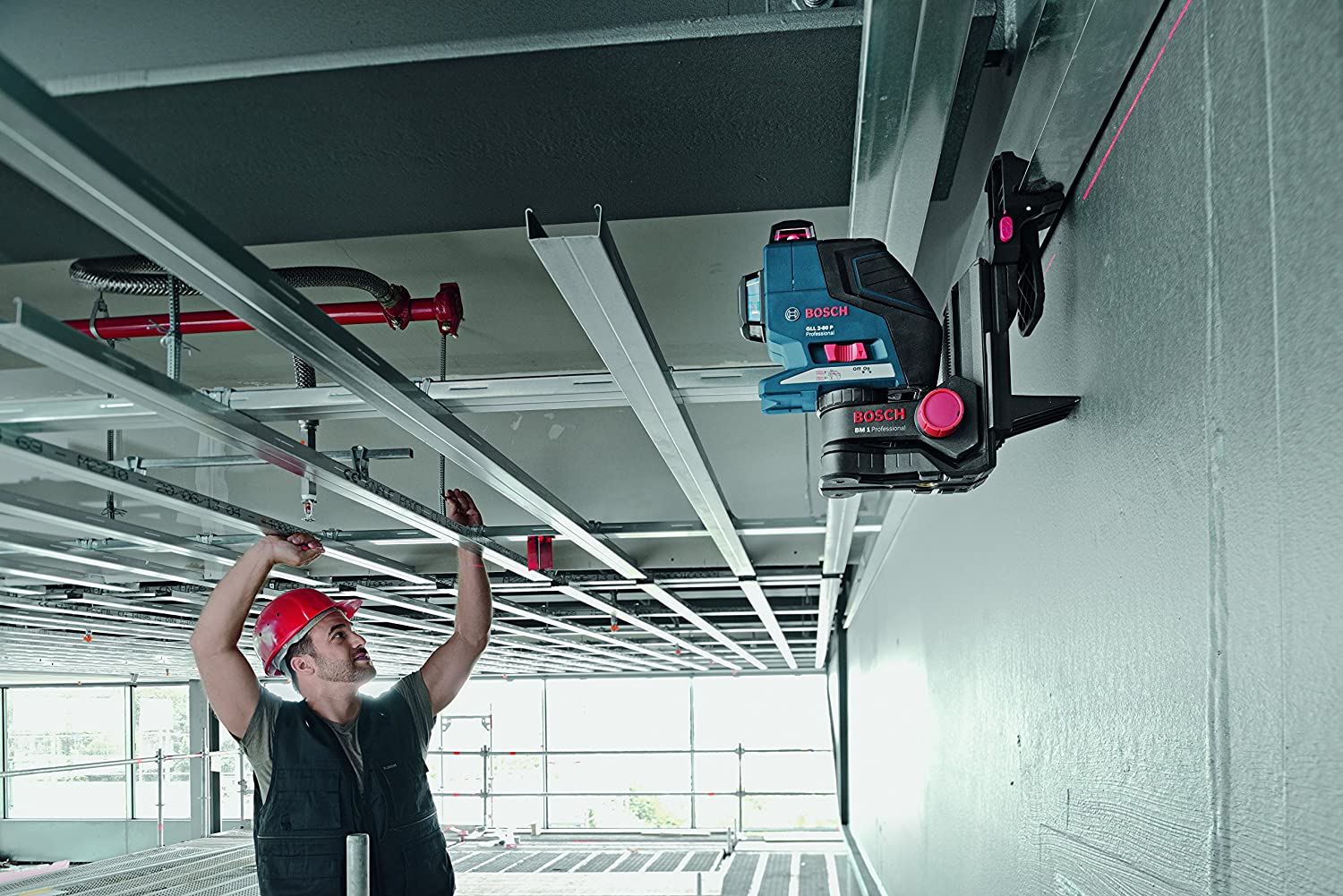

  • Clip attachment – offers quick setup in ceiling grid applications
  • Versatile positioning device design – offers adaptability, with microfine height adjustment, retractable feet for freestanding mode, 1/4 In.-20 mounting thread and multimounting systems

Additional Information

ManufacturerBosch
Weight1.1200  kg

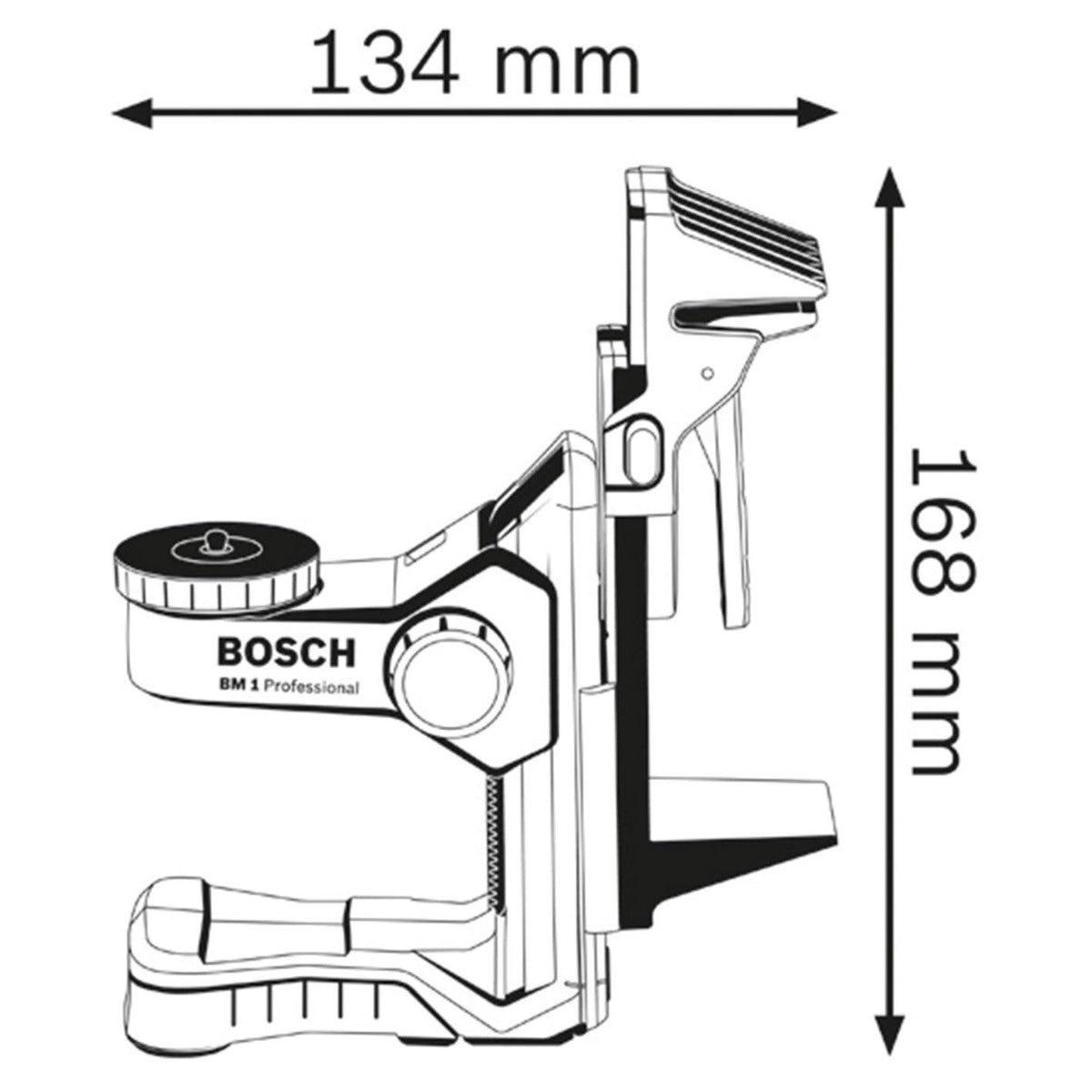

Width177.800  mm
Height104  mm
Length231  mm
Material StatusActive
Date of Valid Distribution Status20220103
Country of OriginChina

Bosch

Bosch BM1 Bm 1 Positioning Device With Ceiling Grid Clip

Bosch BM1 Bm 1 Positioning Device With Ceiling Grid Clip

GTIN : 000346461350

MPN :

SKU : kpt010-BM1

Out of stock

Get it by Wed, May 07 - Mon, May 12

Regular price $59.99
Regular price Sale price $59.99
Sale Sold out
Shipping calculated at checkout.
